48
11
SET MODES
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

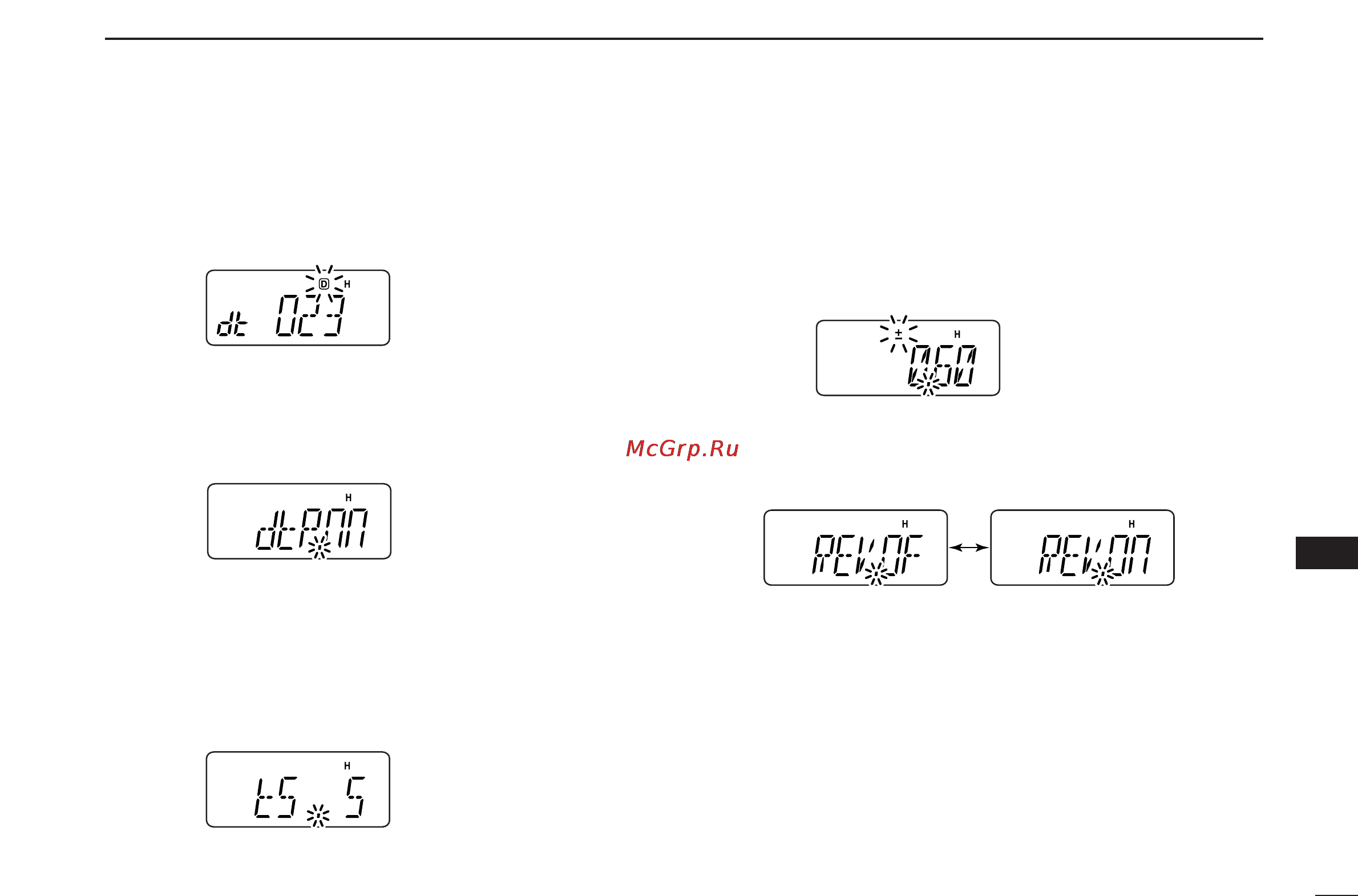

DD
DTCS code
Selects DTCS (both encoder/decoder code) for DTCS
squelch operation. Total of 104 codes are available.
• 023–754: 023 (default)
DD
DTCS polarity
Selects DTCS polarities for transmission and reception from
“nn (default),” “nR,” “Rn” and “RR.” (n: normal/R: reverse)
DD
Tuning step
Selects tuning step from 5, 10, 12.5, 15, 20, 25, 30 and
50 kHz for [
YY
]/[
ZZ
] or [VOL] (
When [VOL] is assigned as tuning
dial
) operation. (default value may differ depending on trans-
ceiver types and versions)
DD
Offset frequency
Sets the duplex offset frequency within 0 to 20 MHz range.
During duplex (repeater) operation, transmit frequency (or re-
ceive when reverse function is set to ON) shifts the set fre-
quency. (default value may differ depending on transceiver
types and versions)
DD
Reverse function
Turns the reverse function ON and OFF (default).
Reverse function OFF Reverse function ON
