6
2
PANEL DESCRIPTION

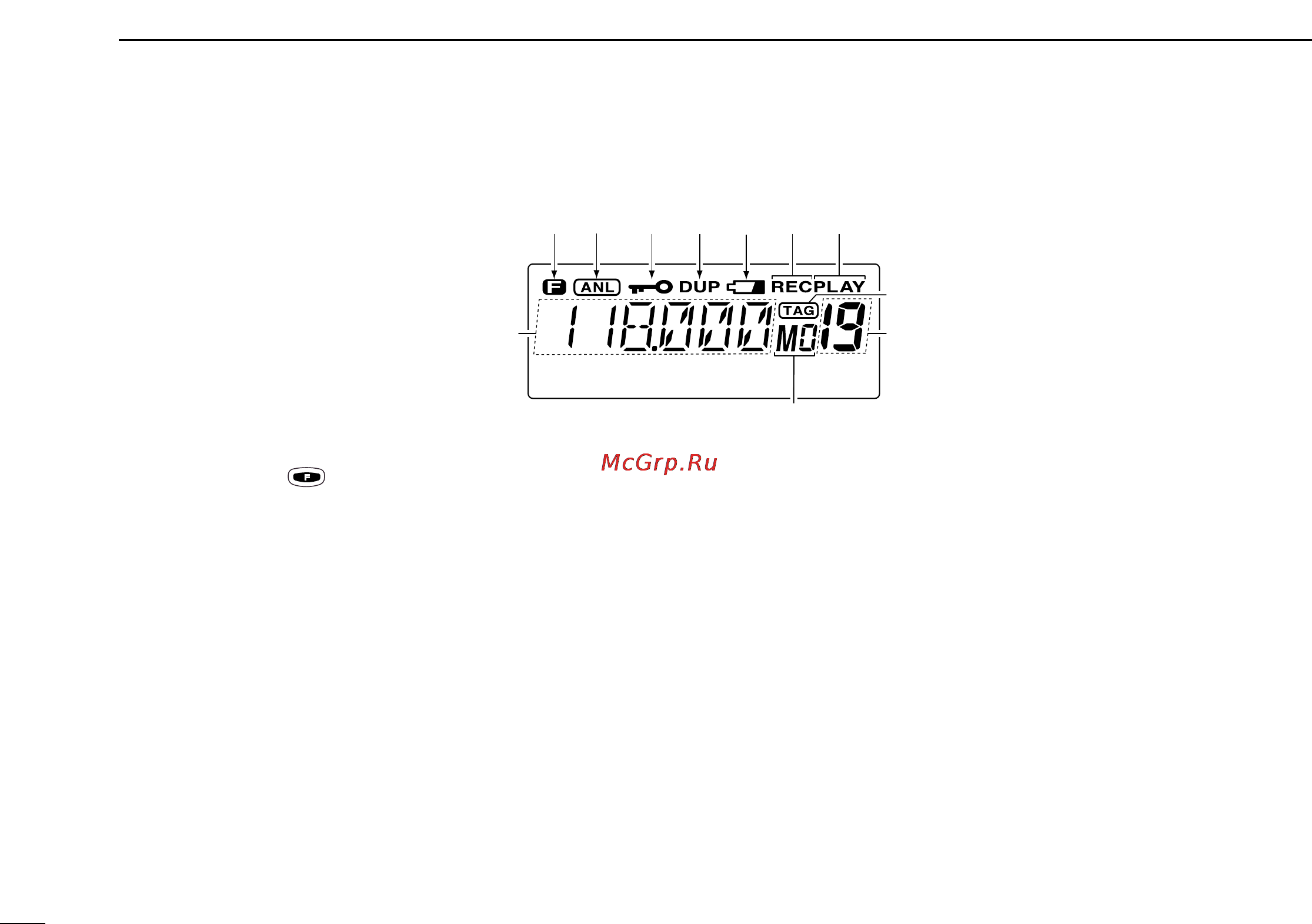

■ Function display (COM)
q FUNCTION INDICATOR (p. 4)
Appears when is pushed.
w ANL INDICATOR (p. 4)
Appears while the ANL (Automatic Noise Limiter) function
is in use.
e LOCK INDICATOR (p. 10)
➥Appears while the lock function is in use.
r DUPLEX INDICATOR (IC-A23 only) (p. 22)
➥“DUP” appears when the duplex function is activated in
NAV mode.
➥“DUP” blinks while setting the duplex frequency.
t LOW BATTERY INDICATOR (p. 10)
➥Appears when the battery is nearing exhaustion.The at-
tached battery pack requires recharging.
➥Appears and flashes when battery replacement is nec-
essary.
y RECORD INDICATOR (p. 10)
➥”REC” blinks while the internal recorder is recording the
signal.
u PLAY INDICATOR (p.10)
➥“PLAY” appears during play back of the recorded signal.
i TAG CHANNEL INDICATOR (p.17)
➥“TAG” appears when the memory channel is set as a
TAG channel.
o MEMORY CHANNEL INDICATOR (p.12)
➥Shows the memory channel number.
yu
!1
t
!0
o
re
w
q
i
