Icom IC-F30GT [27/32] Optional unit installation
![Icom IC-F30GT [27/32] Optional unit installation](/views2/1074497/page27/bg1b.png)
23
8
OPTIONAL UNIT INSTALLATION
You can install two of the following optional units in the transceiver.
UT-105
SmarTrunk II
TM
Logic Board
, UT-109/UT-110
VOICE SCRAMBLER
UNIT
, UT-111
TRUNKING BOARD
, UT-113
MAN DOWN UNIT
.
‘‘

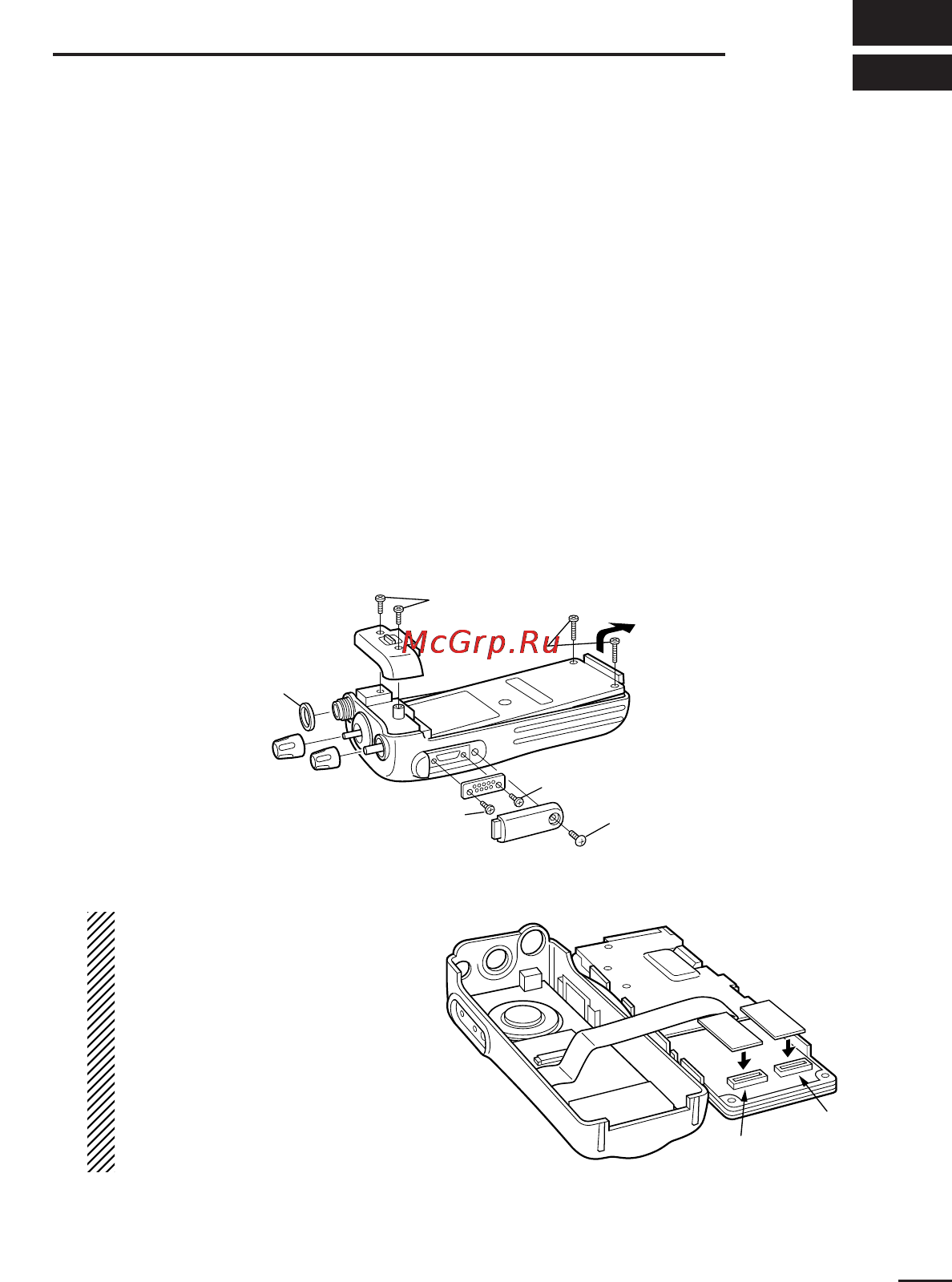

Installation
q Unscrew nut a, and remove the knobs.
w Unscrew screw b, 2 screws c then remove multi-connector
cover and rear panel.
e Unscrew 2 screws d, then remove multi-connector.
r Unscrew 2 screws e then separate the chassis from the front
panel in the direction of the arrow.
Be careful!: A flat cable is connected between the MAIN unit on the
chassis and front panel.
t
Install the desired optional unit. Insert tightly to avoid bad contact.
NOTE: When installing
UT-105 or UT-111, the
unit MUST BE plugged
into SLOT 1. Otherwise
the unit will not working
correctly.
(Other optional
units can be plugged into
either slot.)
y
Program the necessary information with the cloning software before
operation. Please ask your dealer or system operator for details.
a
b
d
d
c
e
Slot 1
Slot 2
