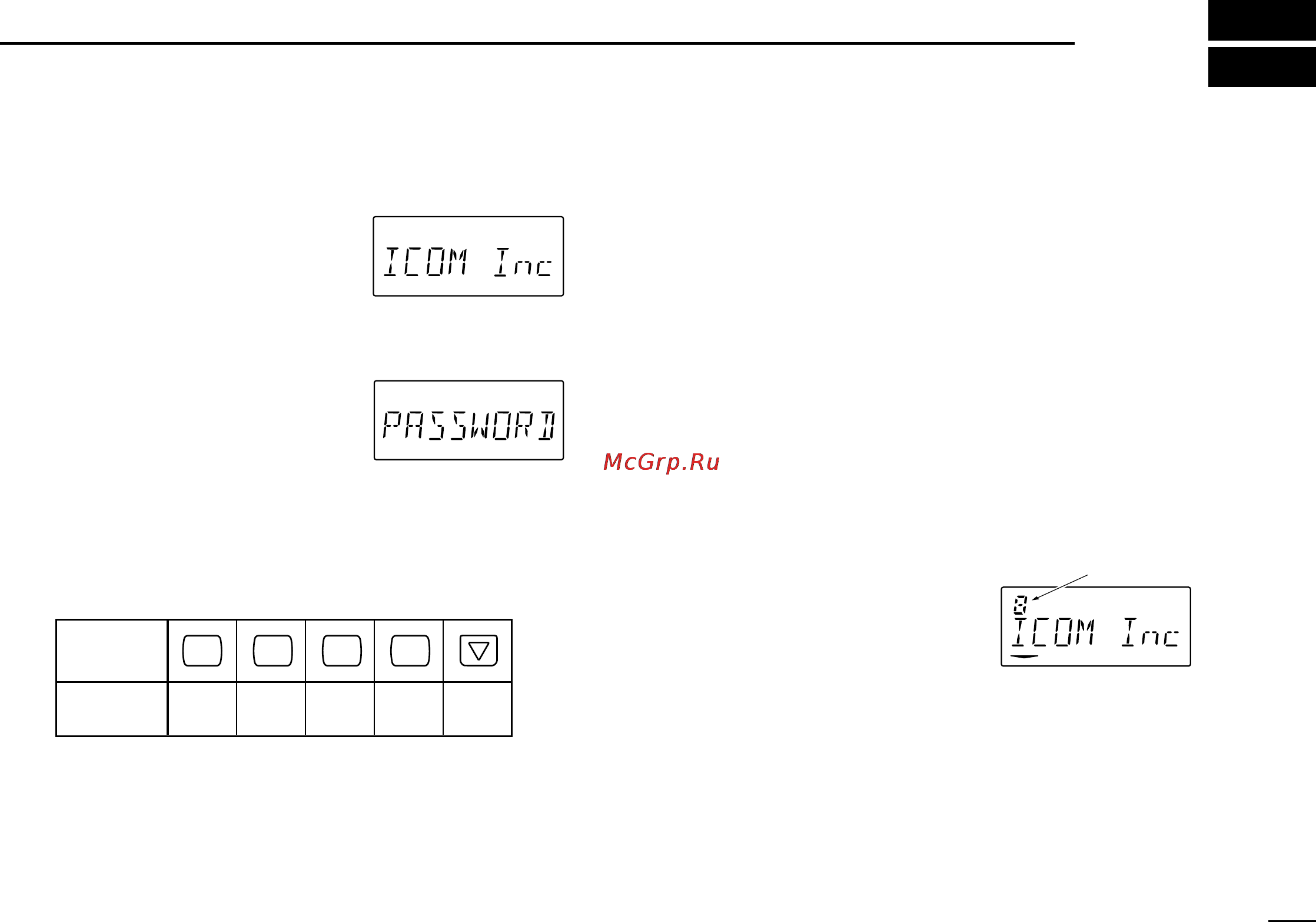

■Turning power ON
q Push [K
I
] to turn the power ON.
• A power-up alert tone sounds for
about 1 sec. and an opening mes-
sage may appears.
w If the transceiver is programmed
for start up passcode, input digit
codes as directed by your sys-
tem operator.
• The following keys can be used for
the password input:
• The transceiver detects the numbers in the same block as the
same number. Therefore the same effect for “1234” and “6789.”
e When the “PASSWORD” indication does not clear after 4-
digit input, the input code number may be incorrect. Turn
power off and start over in this case.
■Channel selection
There are several types are available, and channel selection
method may differ according to your system:
NON-BANK TYPE:
Push the [
CH UP] or [CH DN] keys to select the desired oper-
ating channel, in sequence; or,
push one of the [
CH 1] to [CH 4] keys to select these channels
directly.
BANK-TYPE:
q Push [
BK S], then push [CH UP] or [CH DN] to select the de-
sired bank number; or
Push [
BK UP] or [BK DN] if the
transceiver has these keys.
w Push [CH UP] or [CH DN] to select
the desired channel in the selected bank.
AUTOMATIC SCAN TYPE:
Channel setting is not necessary for this type. When turning
the power ON, the transceiver automatically starts scanning.
Scanning stops when receiving a call or taking the micro-
phone off from the microphone hanger.
OPERATION
2
6
Opening message may
differ depending on the
pre-setting.
Input your password if
this display appears.
Bank number
KEY
NUMBER
P0 P1 P2 P3
0
5
1
6
2
7
3
8
4
9
