PANEL DESCRIPTION

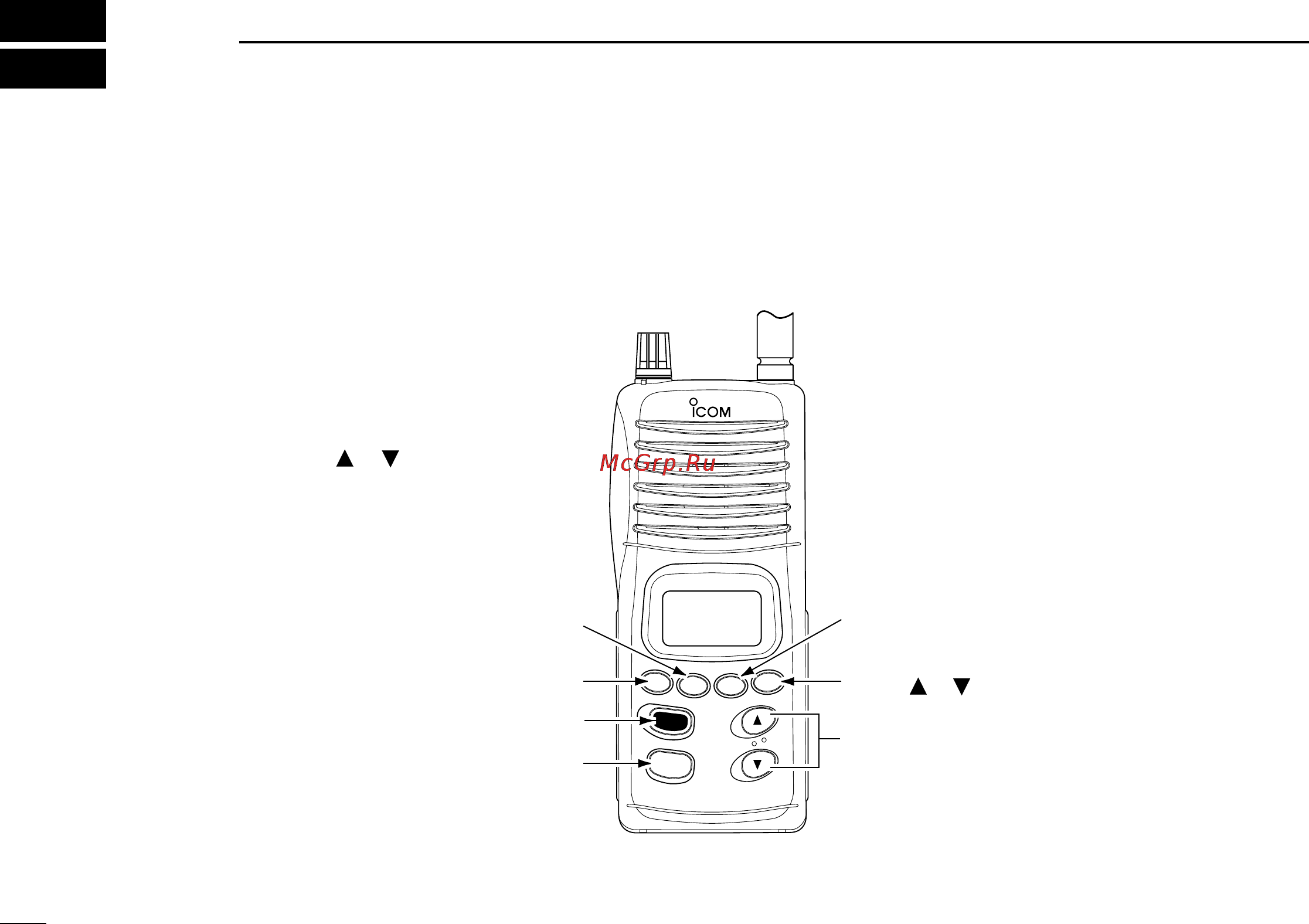

■ Front panel
q DUALWATCH /TRI-WATCH SWITCH
[DW•
TRI]
• Starts dualwatch when pushed momentarily.
• Starts tri-watch when pushed for 1 sec.
• Stops dualwatch/tri-watch when either is ac-
tivated.
w SQUELCH SWITCH [SQL]
• Push this switch, then set the squelch level
with the UP/DOWN [ ]/[ ] switches. (p.
6)
e CHANNEL 16 SWITCH [16 •
9]
• Selects channel 16 when pushed.
• Selects the call channel when pushed for 1
sec.
• Enters call channel write mode when the
call channel is selected and this switch is
pushed for 3 sec.
r CHANNEL/WEATHER CHANNEL SWITCH
[CH/WX•
U/I/C
]
• Selects and toggles the regular channels
and weather channel when pushed momen-
tarily.
• Selects one of 3 regular channels in se-
quence when pushed for 1 sec.
- International, U.S.A. and Canadian channels
are available.
t SCAN/TAG SWITCH [SCAN • TAG
]
• Starts and stops normal or priority scan
when tag channels are programmed.
• Sets and clears the displayed channel as a
tag (scanned) channel when pushed for 1
sec.
• While pushing this switch, turn the power
ON to clears all tag channels in the selected
regular channel group.
y TRANSMIT POWER/LOCK SWITCH
[H/L •
LOCK]
• Toggles high and low power when pushed.
• Toggles the lock function ON/OFF when
pushed for 1 sec.
u CHANNEL UP/DOWN SWITCHES
[ ]/[ ]
• Select an operating channel in the selected
channel group.
• Selects the set mode condition of the item.
TRI
DW
SCAN
H
/
L
SQL
9
U
CH
WX
I
/
/
/
C
TAG
LOCK
iM3A
16
VHF MARINE
w
q
e
r
t
y
u
