PANEL DESCRIPTION

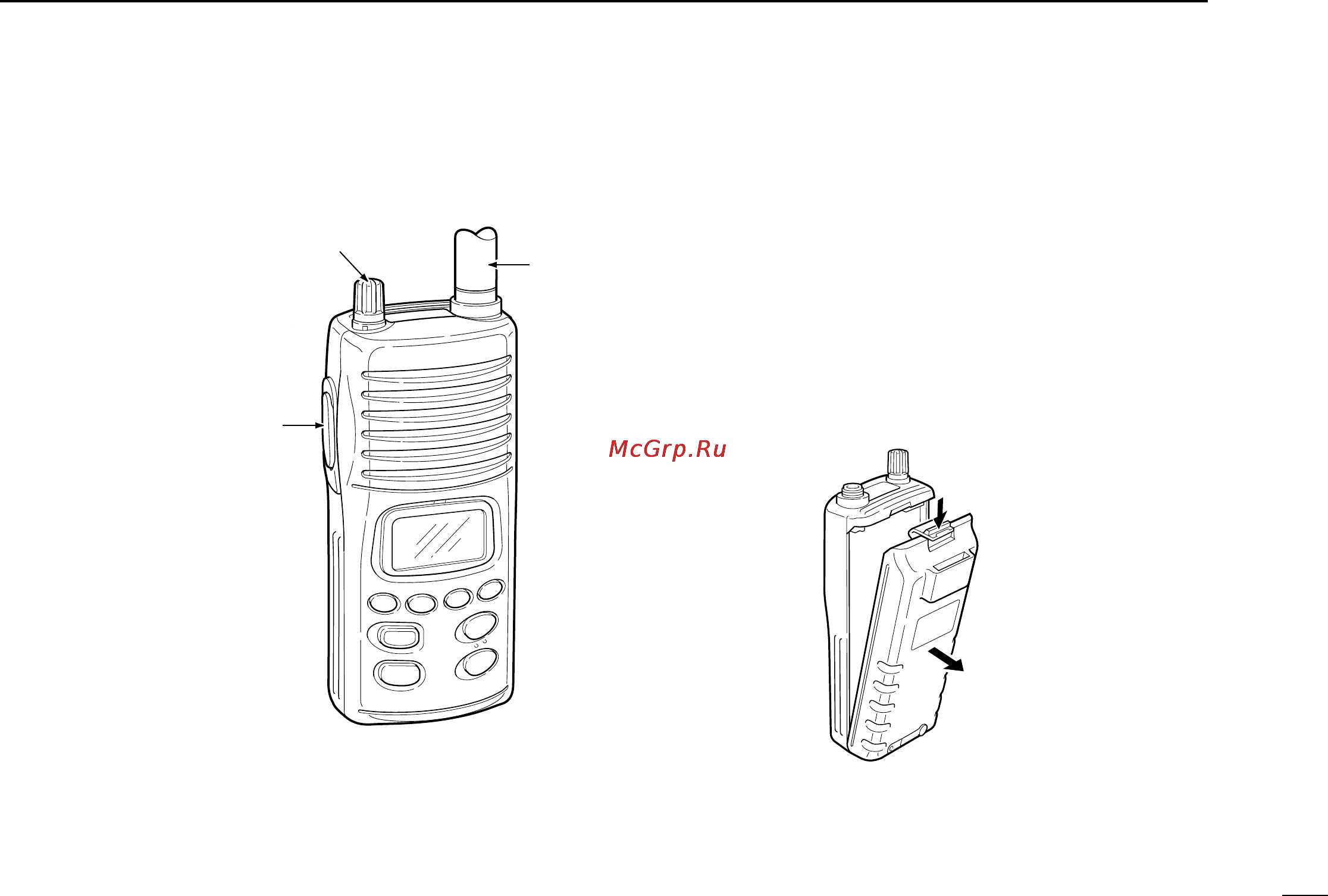

■ Top and side panels
q PTT SWITCH [PTT]
Push and hold to transmit;
release to receive.
w VOLUME CONTROL
[OFF/VOL]
Turns power ON and ad-
justs the audio level.
e ANTENNA CONNEC-
TOR
Connects the supplied an-
tenna.
q
w
e
ï BATTERY CASE RELEASE BUTTON
To remove the battery case:
Push and hold the battery release button downwards, then
open the battery case as shown below.
To attach the battery case:
Mate the notched ends of the transceiver and battery
case,and click the battery case into place.
