5 English
Indoor Unit Installation
1. Installing the mounting plate.
• The mounting plate should be installed on a wall which can support the weight of the indoor unit.
1) Temporarily secure the mounting plate to the wall, make sure that the panel is completely level, and mark the boring
points on the wall.
2) Secure the mounting plate to the wall with screws.

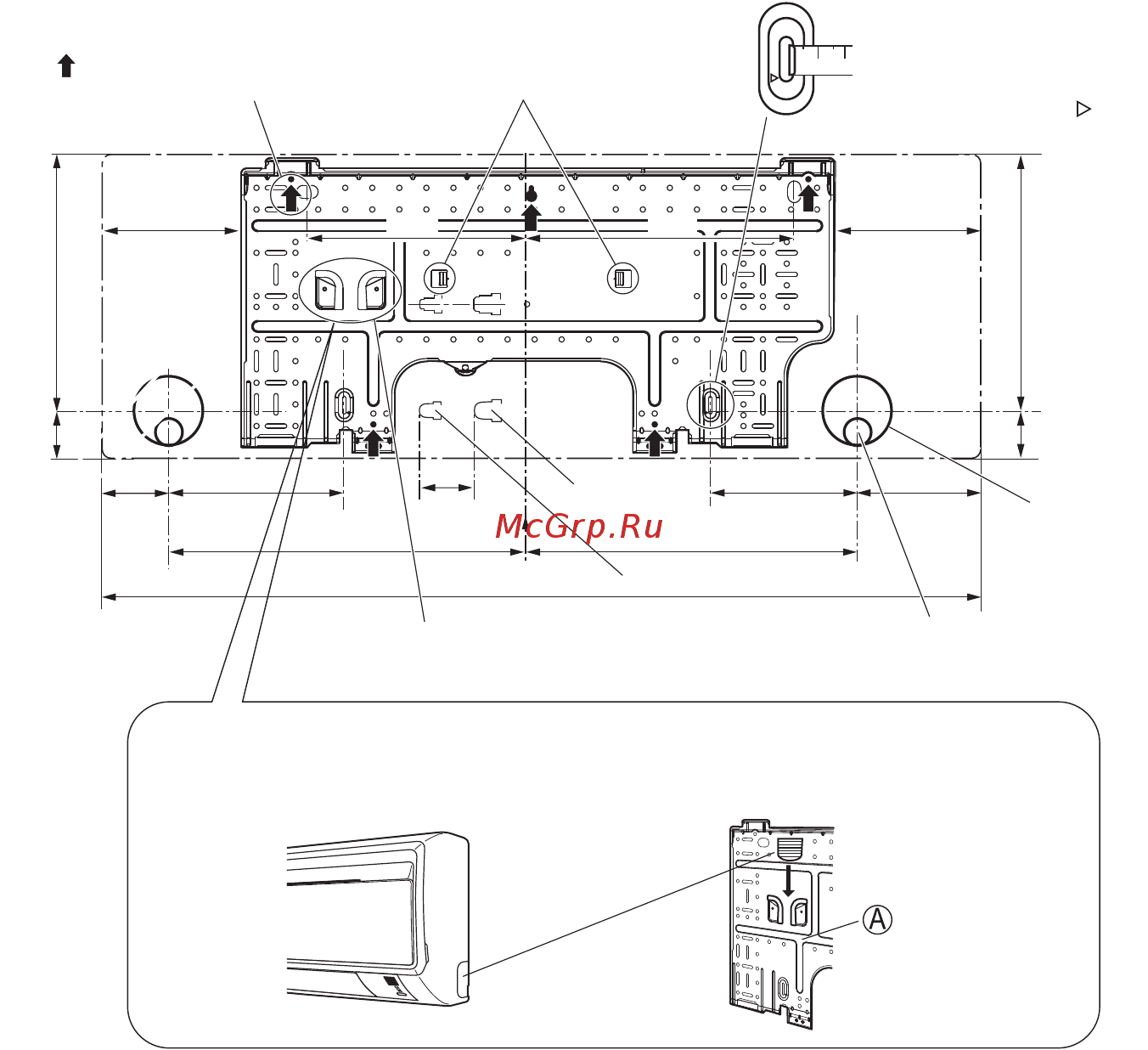

Recommended mounting-plate retention spots and Dimensions
Use tape measure
as shown.
Position the end of
a tape measure at .
Keep here the piece cut out
from the unit for piping
Liquid pipe end
Gas pipe end
* The removed pipe port cover can be
kept in the mounting plate pocket.
Removed pipe
port cover
Mounting plate
Through-
the-wall
hole ø65mm
Recommended mounting - plate
retention spots (5 spots in all)
Place a leveler
on raised tab.
Drain hose
position
770
41.3
41.3
241.7
54
330.5
241.7
160
54.5
160
101120.5
331
203 247
50
3PEN479172-2.book Page 5 Friday, March 3, 2017 1:51 PM
