■ Channel selection
D Channel 16
Channel 16 is the distress channel. It is used for establishing
initial contact with another station and for emergency com-
munications. Channel 16 is monitored during dualwatch/tri-
watch. While standing by you are required to monitor channel
16.
D Call channel
The call channel is used to store your most often-used chan-
nel for quick recall. In addition, the call channel is monitored
during tri-watch. The default setting for the call channel is
channel 9 which is for pleasure use.
BASIC OPERATION
3
6
■ Power ON
➀ Rotate [PWR/VOL] clockwise to turn power ON.
➁ Operate the transceiver as indicated in the following sec-
tions.
D Low voltage indicator
When “b” appears and flashes as
shown at right, there is a DC power
source problem. In this case, check
your vessel’s battery and DC
power cable.
LOW CALL
CANUSA
USA
INT
ALTWX
TX
TAG
DUAL
SCAN
DUP ACK RCV
SCRM
TRI
BUSY

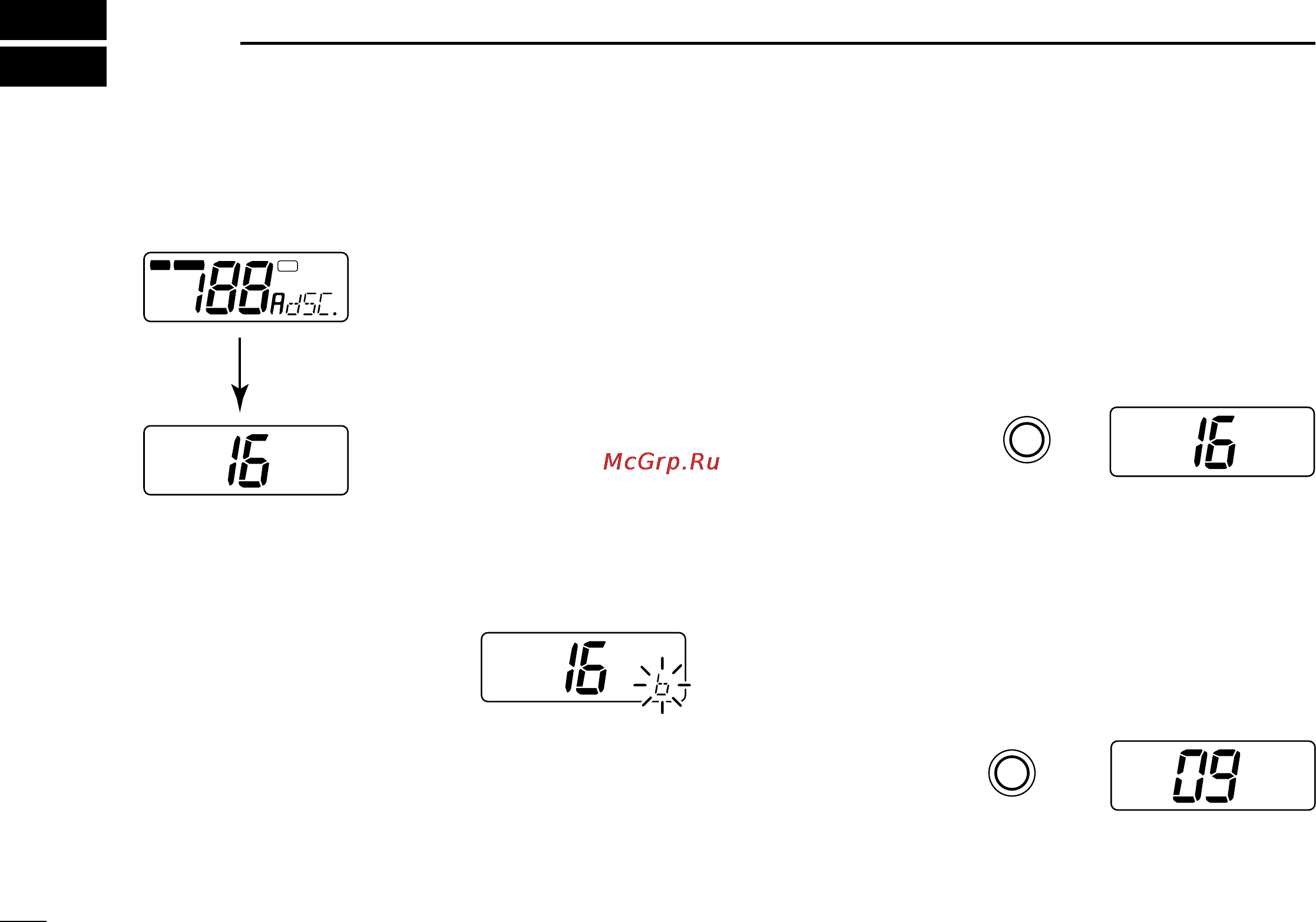

All display indications
appear briefly*.
*“SCRM” appears only when an optional
UT-79 is installed.
“dSC” appears only when an optional
UX-120 is installed.
USA
Push
or hang the microphone
on the microphone hanger.
16
Push
CALL
USA
“CALL” indicates that the
call channel is selected.
9
USA
