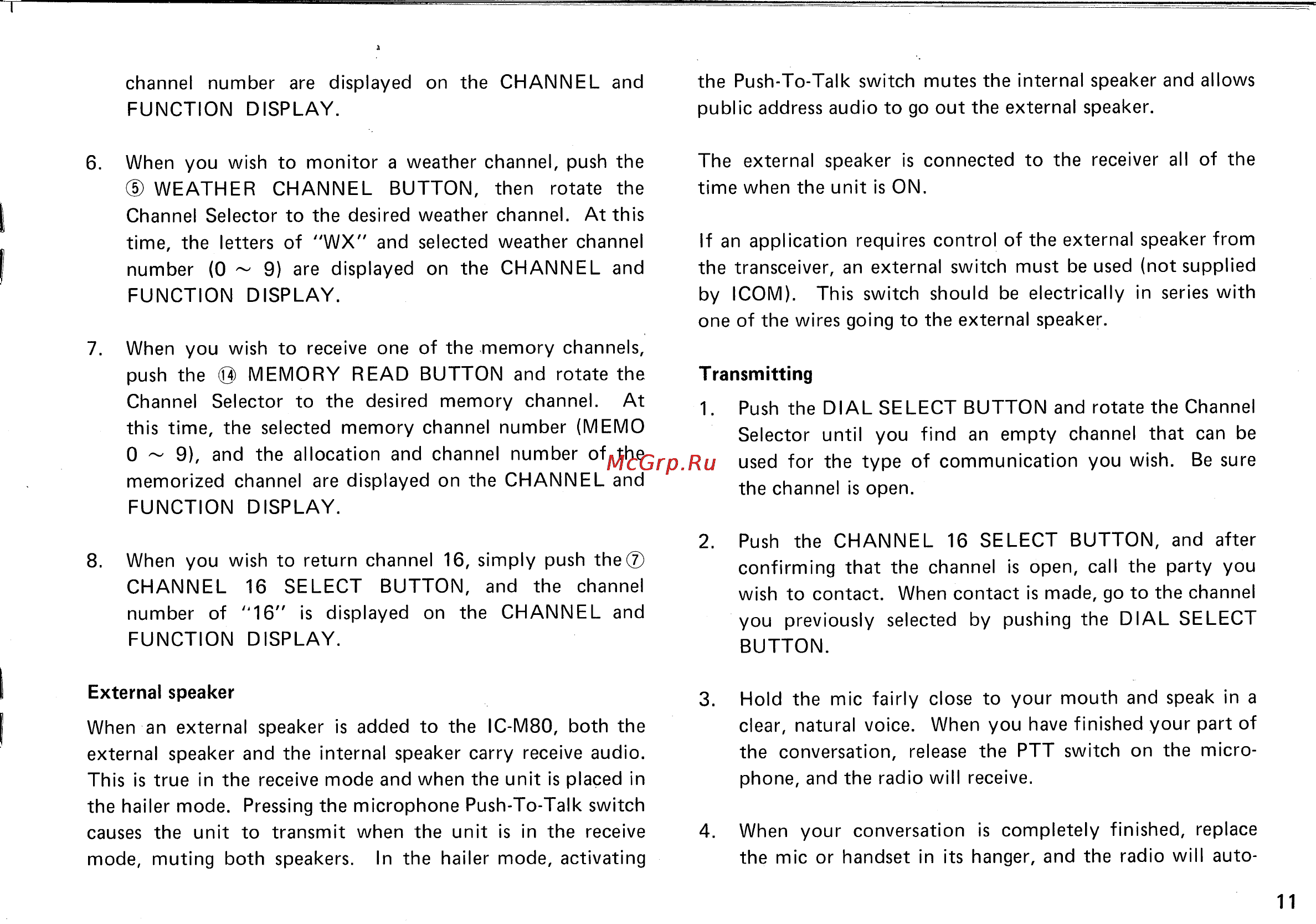

channel number are displayed on the CHANNEL and FUNCTION DISPLAY the Push To Talk switch mutes the internal speaker and allows public address audio to go out the external speaker 6 When you wish to monitor a weather channel push the WEATHER CHANNEL BUTTON then rotate the Channel Selector to the desired weather channel At this time the letters of NX and selected weather channel number 0 9 are displayed on the CHANNEL and FUNCTION DISPLAY The external speaker is connected to the receiver all of the time when the unit is ON 7 When you wish to receive one of the memory channels push the 0 MEMORY READ BUTTON and rotate the Channel Selector to the desired memory channel At this time the selected memory channel number MEMO 0 9 and the allocation and channel number of the memorized channel are displayed on the CHANNEL and FUNCTION DISPLAY 8 When you wish to return channel 16 simply push the CHANNEL 16 SELECT BUTTON and the channel number of 16 is displayed on the CHANNEL and FUNCTION DISPLAY External speaker When an external speaker is added to the IC M80 both the external speaker and the internal speaker carry receive audio This is true in the receive mode and when the unit is placed in the hailer mode Pressing the microphone Push To Talk switch causes the unit to transmit when the unit is in the receive mode muting both speakers In the hailer mode activating If an application requires control of the external speaker from the transceiver an external switch must be used not supplied by ICOM This switch should be electrically in series with one of the wires going to the external speaker Transmitting 1 Push the DIAL SELECT BUTTON and rotate the Channel Selector until you find an empty channel that can be used for the type of communication you wish Be sure the channel is open 2 Push the CHANNEL 16 SELECT BUTTON and after confirming that the channel is open call the party you wish to contact When contact is made go to the channel you previously selected by pushing the DIAL SELECT BUTTON 3 Hold the mic fairly close to your mouth and speak in a clear natural voice When you have finished your part of the conversation release the PTT switch on the micro phone and the radio will receive 4 When your conversation is completely finished replace the mic or handset in its hanger and the radio will auto11
