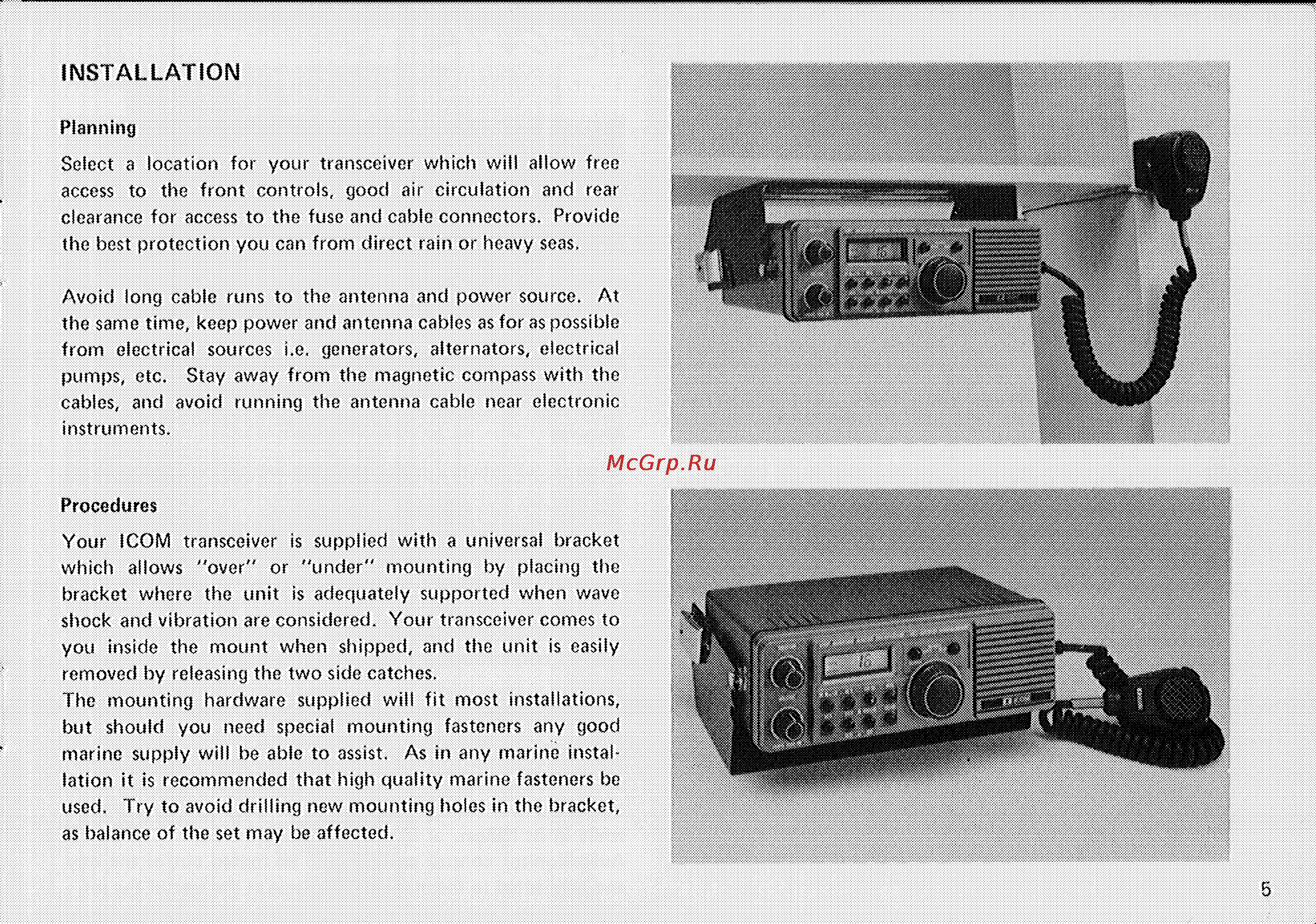

INSTALLATION Planning Select a location for your transceiver which will allow free access to the front controls good air circulation and rear clearance for access to the fuse and cable connectors Provide the best protection you can from direct rain or heavy seas Avoid long cable runs to the antenna and power source At the same time keep power and antenna cables as for as possible from electrical sources i e generators alternators electrical pumps etc Stay away from the magnetic compass with the cables and avoid running the antenna cable near electronic instruments Procedures Your ICOM transceiver is supplied with a universal bracket which allows over or under mounting by placing the bracket where the unit is adequately supported when wave shock and vibration are considered Your transceiver comes to you inside the mount when shipped and the unit is easily removed by releasing the two side catches The mounting hardware supplied will fit most installations but should you need special mounting fasteners any good marine supply will be able to assist As in any marine instab lation it is recommended that high quality marine fasteners be used Try to avoid drilling new mounting holes in the bracket as balance of the set may be affected 5
