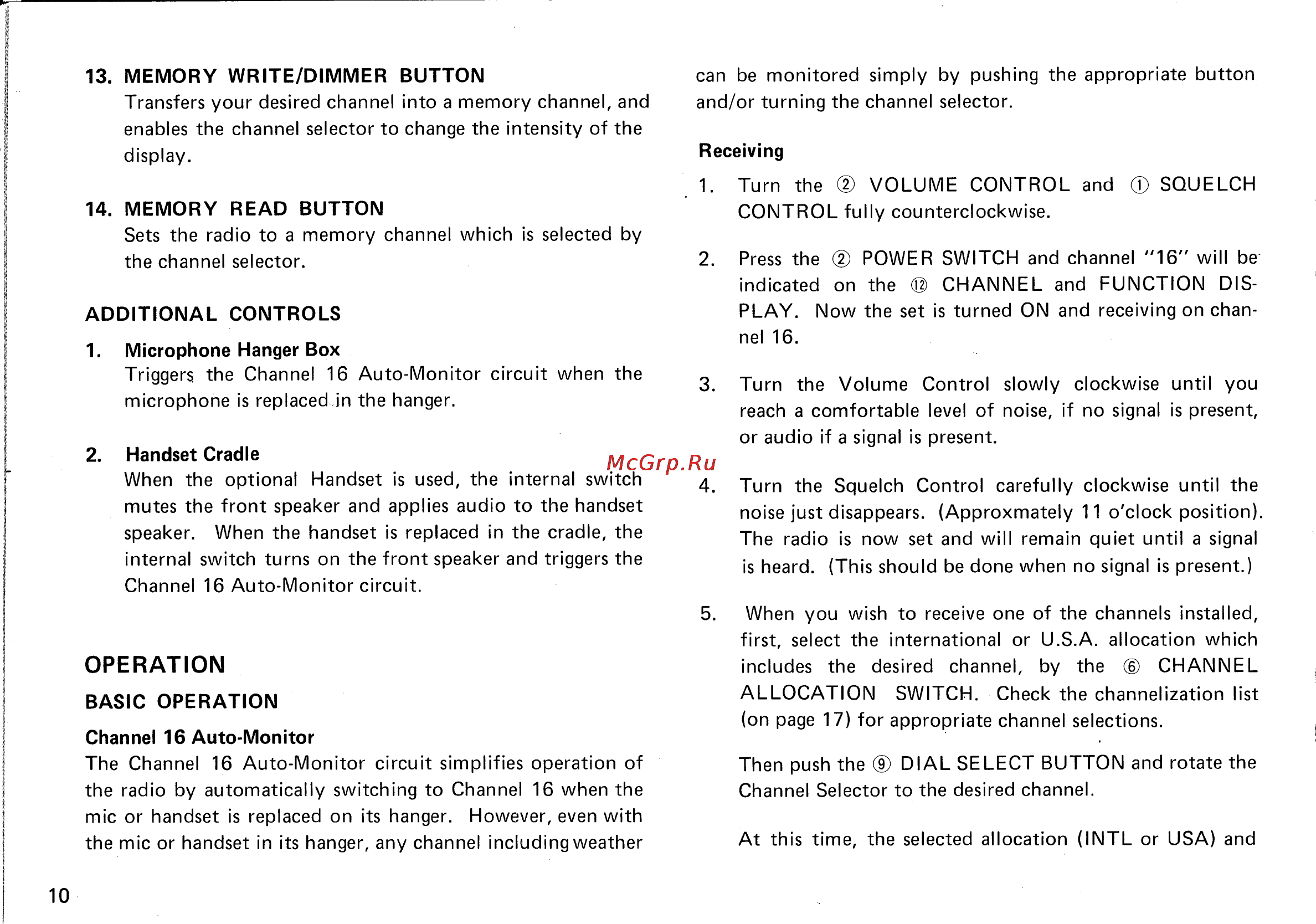

13 MEMORY WRITE DIMMER BUTTON Transfers your desired channel into a memory channel and enables the channel selector to change the intensity of the display 14 MEMORY READ BUTTON Sets the radio to a memory channel which is selected by the channel selector ADDITIONAL CONTROLS 1 Microphone Hanger Box Triggers the Channel 16 Auto Monitor circuit when the microphone is replaced in the hanger Receiving 1 Turn the VOLUME CONTROL and SQUELCH CONTROL fully counterclockwise 2 Press the POWER SWITCH and channel 16 will be indicated on the CHANNEL and FUNCTION DIS PLAY Now the set is turned ON and receiving on chan nel 16 3 Turn the Volume Control slowly clockwise until you reach a comfortable level of noise if no signal is present or audio if a signal is present 2 Handset Cradle When the optional Handset is used the internal switch mutes the front speaker and applies audio to the handset speaker When the handset is replaced in the cradle the internal switch turns on the front speaker and triggers the Channel 16 Auto Monitor circuit 4 Turn the Squelch Control carefully clockwise until the noise just disappears Approxmately 11 o clock position The radio is now set and will remain quiet until a signal is heard This should be done when no signal is present OPERATION 5 When you wish to receive one of the channels installed first select the international or U S A allocation which includes the desired channel by the CHANNEL ALLOCATION SWITCH Check the channelization list on page 17 for appropriate channel selections BASIC OPERATION Channel 16 Auto Monitor The Channel 16 Auto Monitor circuit simplifies operation of the radio by automatically switching to Channel 16 when the mic or handset is replaced on its hanger However even with the mic or handset in its hanger any channel including weather 10 can be monitored simply by pushing the appropriate button and or turning the channel selector Then push the DIAL SELECT BUTTON and rotate the Channel Selector to the desired channel At this time the selected allocation INTL or USA and
