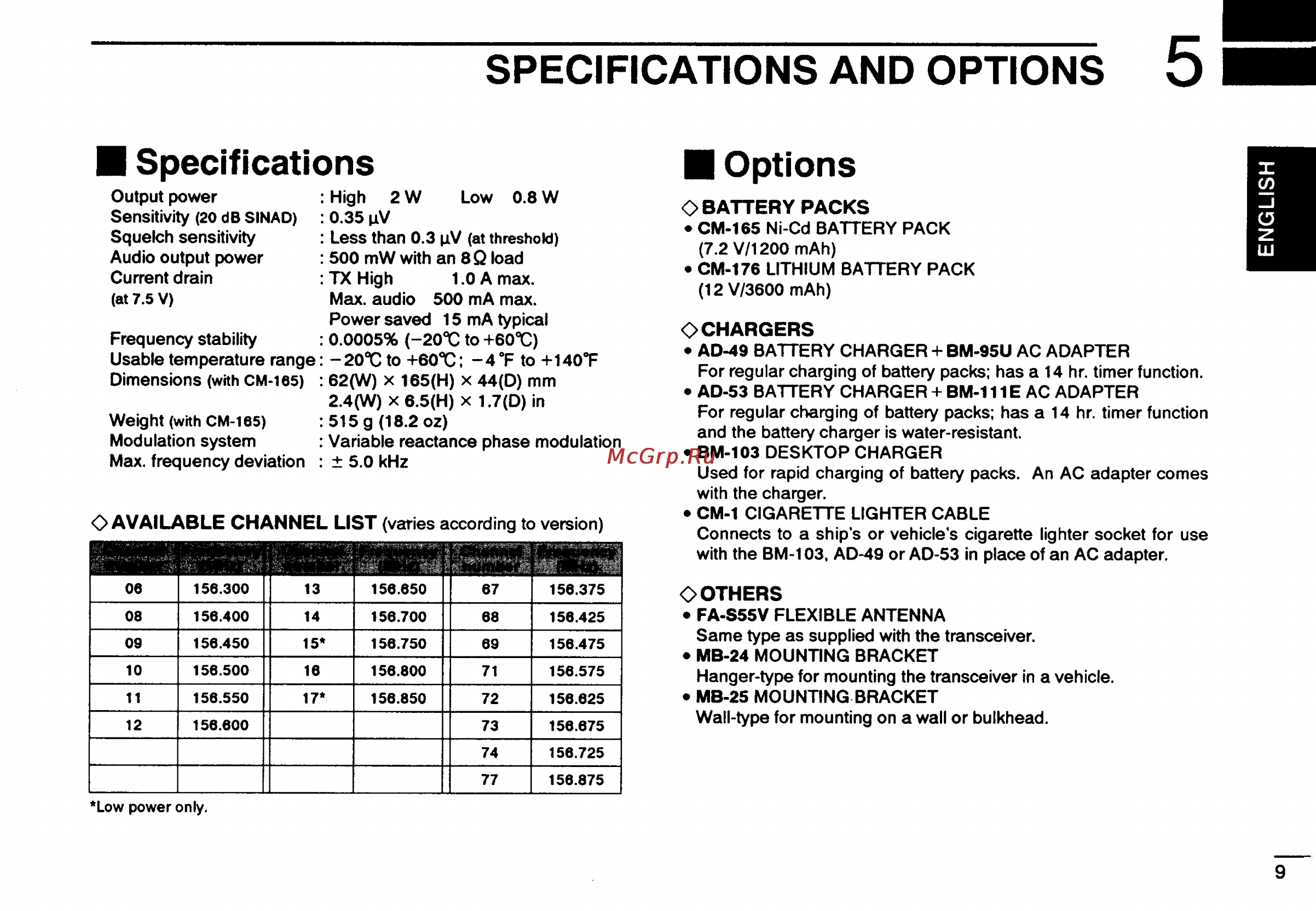

SPECIFICATIONS AND OPTIONS 5 Specifications Options Output power Sensitivity 20 dB SINAD Squelch sensitivity Audio output power Current drain High 2 W Low 0 8 W 0 35 pV Less than 0 3 pV at threshold 500 mW with an 8Q load TX High 1 0 A max at 7 5 V Max audio 500 mA max Power saved 15 mA typical Frequency stability 0 0005 20 to 60 C Usable temperature range 20 0 to 60 C 4 T to 140T Dimensions with CM 165 62 W x 165 H x 44 D mm 2 4 W x 6 5 H x 1 7 D in Weight with CM 165 515 g 18 2 oz Modulation system Variable reactance phase modulation Max frequency deviation 5 0 kHz O AVAILABLE CHANNEL LIST varies according to version 06 156 300 13 156 650 67 156 375 08 156 400 14 156 700 68 156 425 09 156 450 15 156 750 69 156 475 10 156 500 16 156 800 71 156 575 11 156 550 17 156 850 72 156 625 12 156 600 73 156 675 Low power only 74 156 725 77 156 875 O BATTERY PACKS CM 165 Ni Cd BATTERY PACK 7 2 V 1200 mAh CM 176 LITHIUM BATTERY PACK 12V 3600 mAh OCHARGERS AD 49 BATTERY CHARGER BM 95U AC ADAPTER For regular charging of battery packs has a 14 hr timer function AD 53 BATTERY CHARGER BM 111E AC ADAPTER For regular charging of battery packs has a 14 hr timer function and the battery charger is water resistant BM 103 DESKTOP CHARGER Used for rapid charging of battery packs An AC adapter comes with the charger CM 1 CIGARETTE LIGHTER CABLE Connects to a ship s or vehicle s cigarette lighter socket for use with the BM 103 AD 49 or AD 53 in place of an AC adapter O OTHERS FA S55V FLEXIBLE ANTENNA Same type as supplied with the transceiver MB 24 MOUNTING BRACKET Hanger type for mounting the transceiver in a vehicle MB 25 MOUNTING BRACKET Wall type for mounting on a wall or bulkhead
