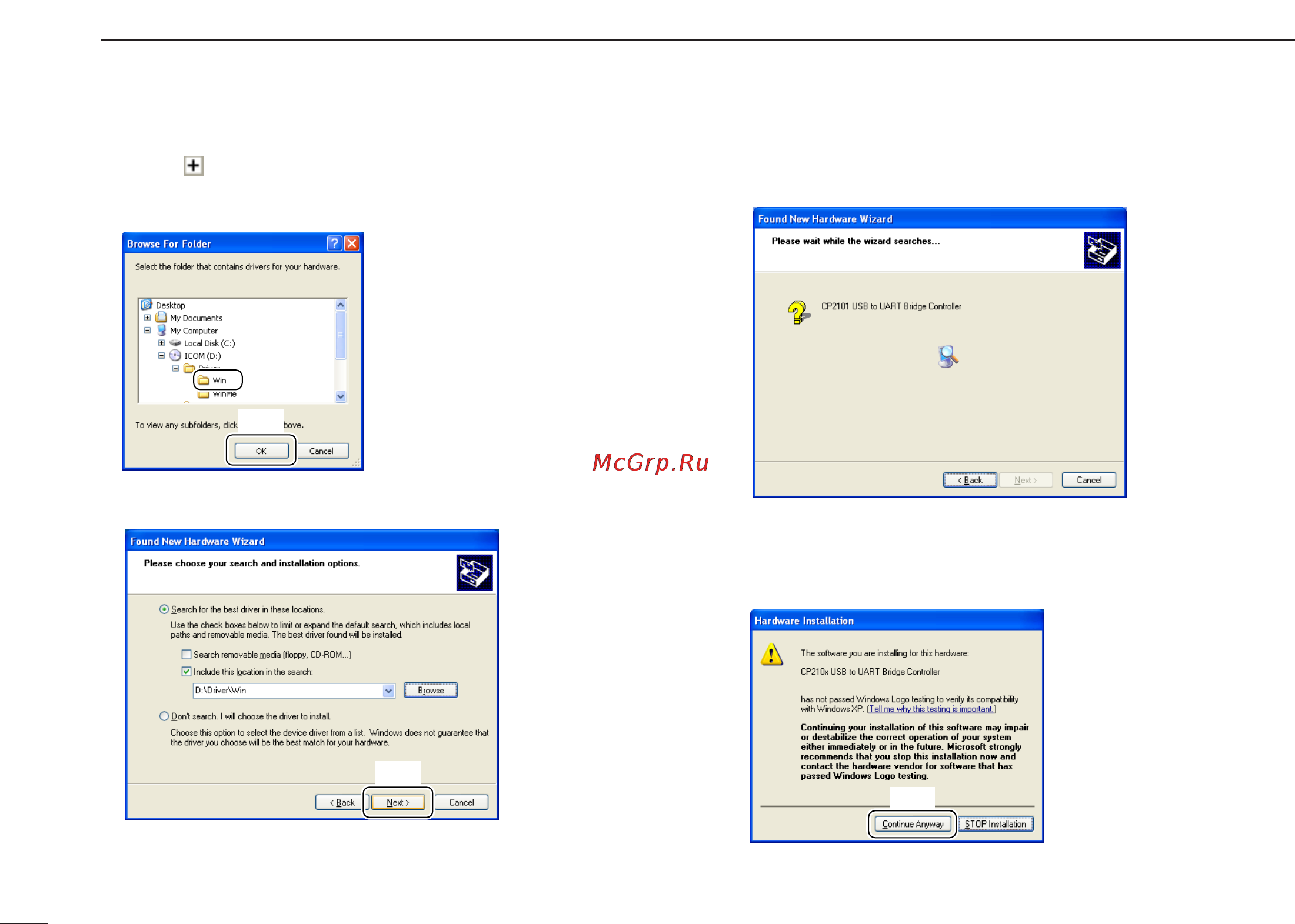

DRIVER INSTALLATION

!7Click “ ” of the “Driver” folder in the CD drive folder, then

select “Win” folder.

Click [OK].

!8Click [Next>].

!9The Wizard starts searching for the driver and shows the

dialog below during search.

@0After the driver is found, the “Hardware Installation” dialog

box appears as below.

Click [Continue Anyway] to start the installation.
