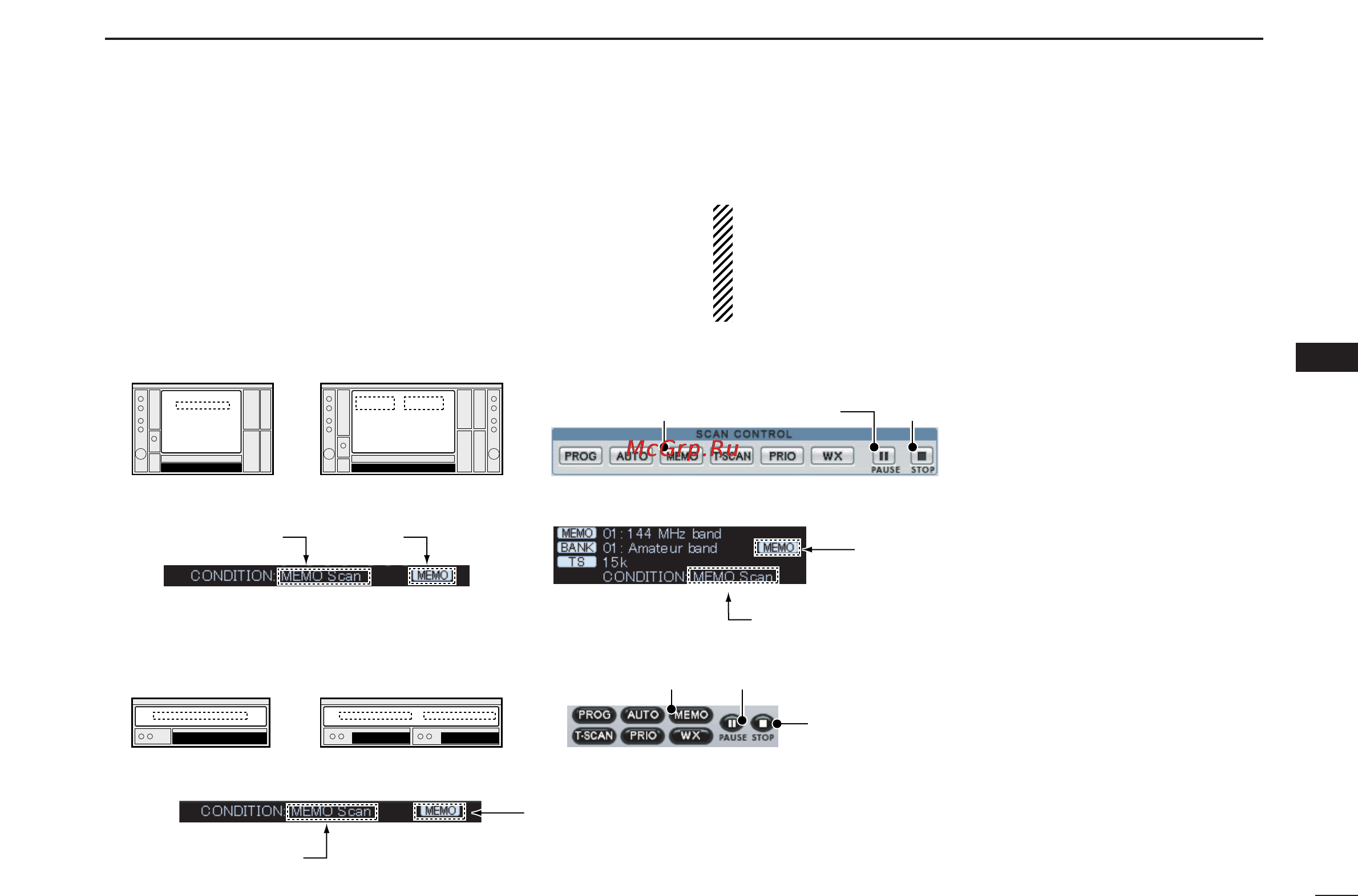

SCAN OPERATION (Multi-function receiver/Component screens only)

METER/SCAN

Active band only

MAIN SUB

• [Compo] screen

• [Receiver] screen

IC-PCR2500IC-PCR1500

zSTOPx

zMEMOx

zMEMOx zPAUSEx

zPAUSEx

zSTOPx

Appears

IC-PCR1500 IC-PCR2500

Appears

Blinks

eClick the zMEMOx button to start the desired memory

scan.

• “MEMO Scan” blinks and [MEMO] appears while scanning.

rTo stop the scan, click zSTOPx or zMEMOx.

• All settings can be used simultaneously.

• SEL, SKIP and receive mode can be set in the memory

list screen.

• At least 2 memory channels must be programmed with

the desired condition for scan to proceed.
