5
SCANNING OPERATION
46
2. Select scan type and
start scanning
1 While pushing [FUNC], push
[
(4)PROG-S] for program scan or
[
(5)AMWS] for auto-memory write
scan, then rotate [DIAL] to select
scanning frequency band.
•Confirm that the receive mode of
the selected scan band is FM and
also that the tuning step is equal
to or smaller than 20 kHz.
•If you want to search the entire
frequency range (0.5–1300 MHz)
skip this step.
2 Push [SCAN] to start scanning.
3 Push [SCAN] or [CLR] to stop scan-
ning.
■ SIGNAVI function
The SIGNAVI function activates while
paused during full, program or auto-
memory write scans in FM mode. It
searches for busy frequencies up to
100 kHz* (+100 kHz when scanning up,
–100 kHz when scanning down) from
the paused frequency (f
0), then jumps
to the next busy frequency (f
1) detected
(by SIGNAVI) when scan resumes.
*The SIGNAVI search range varies ac-
cording to tuning step settings. The
maximum range is 5 channels or steps
from the receive frequency, therefore,
the tuning step must be equal to or
smaller than 20 kHz.

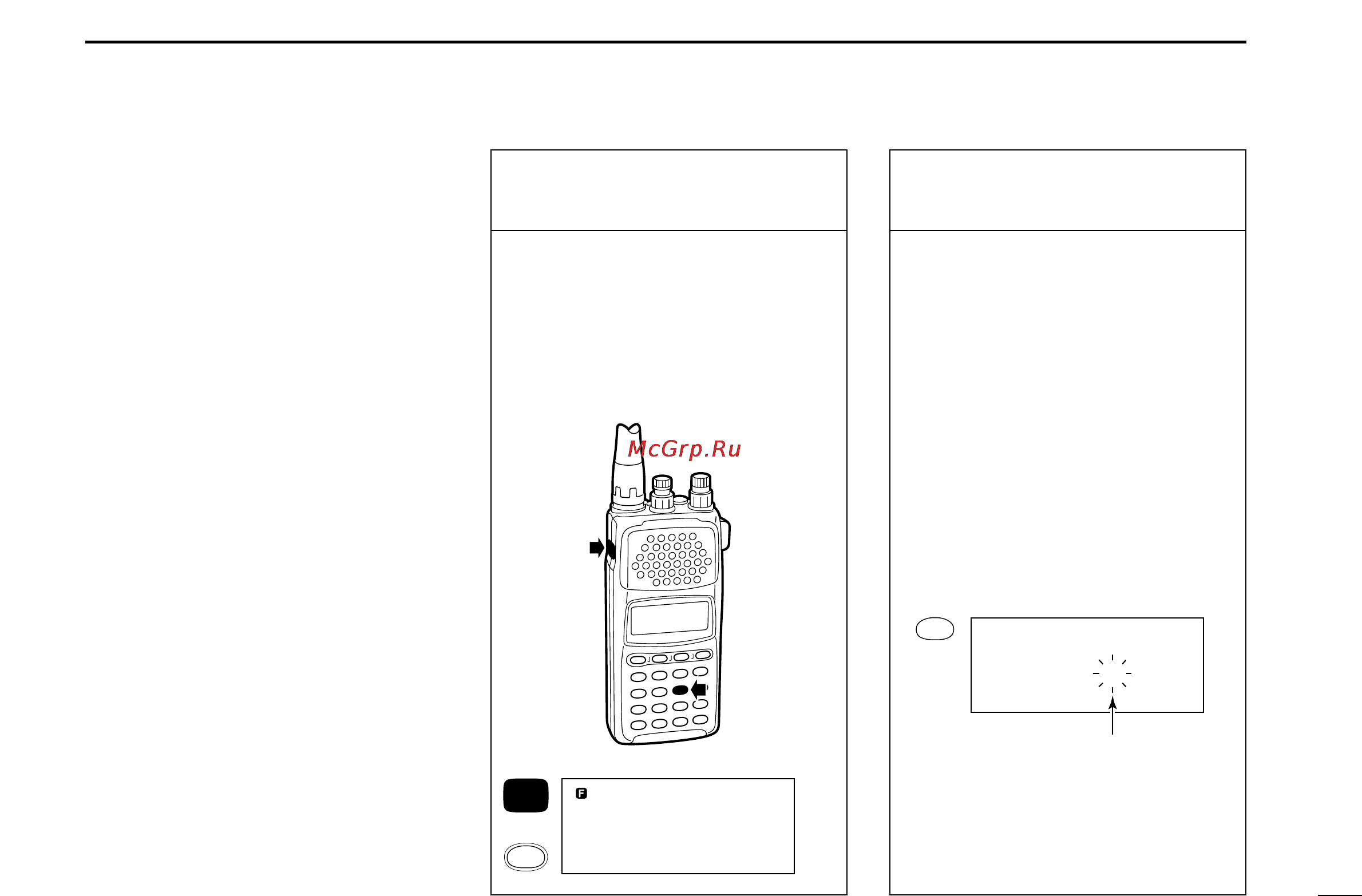

1. Set SIGNAVI function
q Push [V/M] to select VFO mode
(p. 11).
w While pushing [FUNC], push
[
(6)SIGNAVI].
•Displays “SIGNAVI” below fre-
quency.
6
SIGNAVI
VFO
FM
144.0000
SIGNAVI
FUNC
+
SCAN
VFO
FM
144.0000
Flashes while scanning
