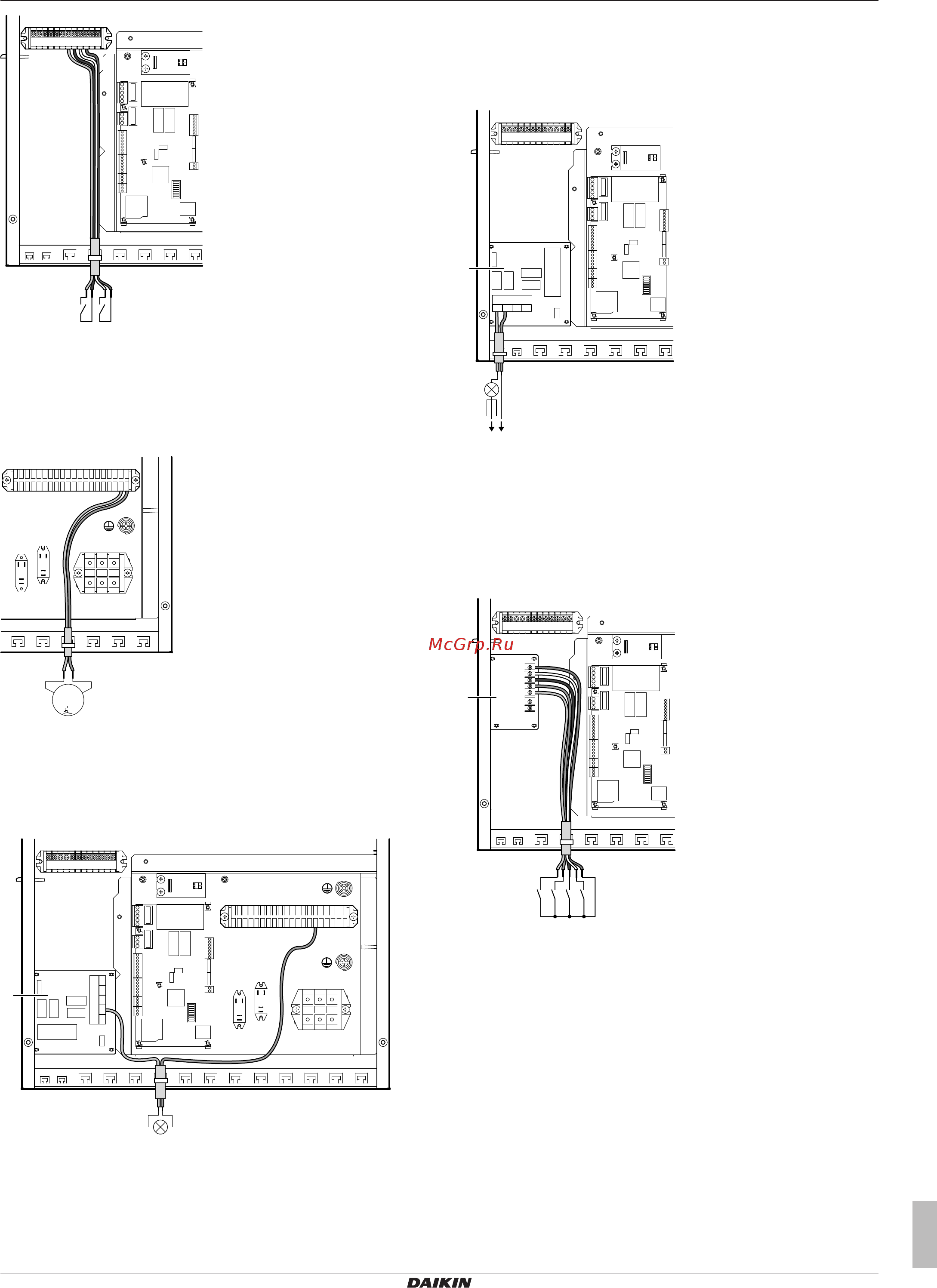

4 Installation
Installation manual
11
EHVZ04~16S18CB3V
Daikin Altherma – Low temperature split
4P401672-1E – 2018.02
X5M
A5P
78 910
S2S S3S
2 Fix the cable with cable ties to the cable tie mountings.
4.5.8 To connect the domestic hot water pump
1 Connect the domestic hot water pump cable to the appropriate
terminals as shown in the illustration below.
X2M
X1M
K3M
K2M
3534
1~
M
M2P
2 Fix the cable with cable ties to the cable tie mountings.
4.5.9 To connect the alarm output
1 Connect the alarm output cable to the appropriate terminals as
shown in the illustration below.
X2M
X5M
A5P
X1M
A4P
K3M
K2M
29
X1M
YC Y1 Y2 Y3 Y4
a
a Installation of EKRP1HB is required.
2 Fix the cable with cable ties to the cable tie mountings.
4.5.10 To connect the changeover to external
heat source
1 Connect the changeover to external heat source cable to the
appropriate terminals as shown in the illustration below.
X5M
A5P
A4P
X3 X4
L N
X2M
X1 X2
a
a Installation of EKRP1HB is required.
2 Fix the cable with cable ties to the cable tie mountings.
4.5.11 To connect the power consumption digital
inputs
1 Connect the power consumption digital inputs cable to the
appropriate terminals as shown in the illustration below.
X5M
A5P
A8P
1 2 3 4 5
X801M
S6S
S7S
S8S
S9S
a
a Installation of EKRP1AHTA is required.
2 Fix the cable with cable ties to the cable tie mountings.
4.5.12 To connect the safety thermostat (normal
closed contact)
Main zone
1 Connect the safety thermostat (normal closed) cable to the
appropriate terminals as shown in the illustration below.
