Command Center

Main Features

This section describes the main features (CPU Frequency, CPU Fan, )on the control

panel.

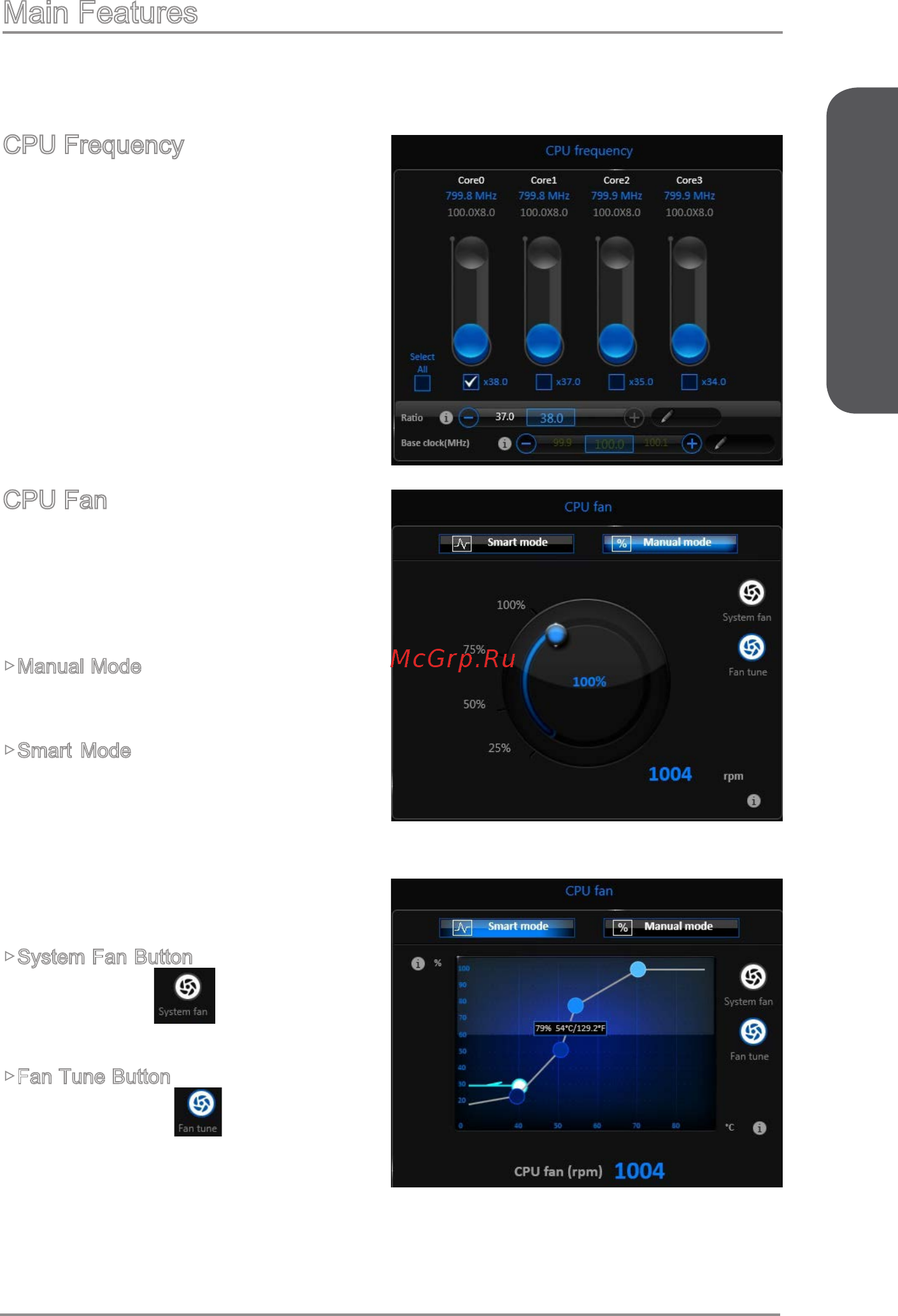

CPU Frequency

CPU Frequency control panel allows you

to change CPU Ratio and Baseclock.

You can see the current frequency of

each CPU core on the top of the panel.

CPU Fan

CPU Fan control panel provides Smart

mode and Manual Mode. You can switch

the control mode by clicking the “Smart

Mode” and “Manual Mode” buttons on

the top of the CPU Fan control panel.

▶Manual Mode - Allows you to manually

control the CPU fan speed by percent-

age.

▶Smart Mode - Smart Mode is a linear

fan speed control feature. The Smart

Mode control panel contains 4 dots al-

lows you to drag and adjust the Smart

Speed slopes. The fan speed will be

changed along these lines with CPU tem-

perature. The white dot will create strip

chart in real time.

▶System Fan Button - You can click the

system fan icon

to open the sys-

tem fan control panel in new window.

▶Fan Tune Button - Also, you can press

the auto tune icon

to automatically

optimize the smart fan setting.

Manual Mode

Smart Mode
