E
N
G
L
I
S
H
10
CQ-R223W
21
E
N
G
L
I
S
H
9
Remote Control
CQ-R223W
20
M
O
D
E
DOLBY B NR
TRACK
TUNE
REMOTE

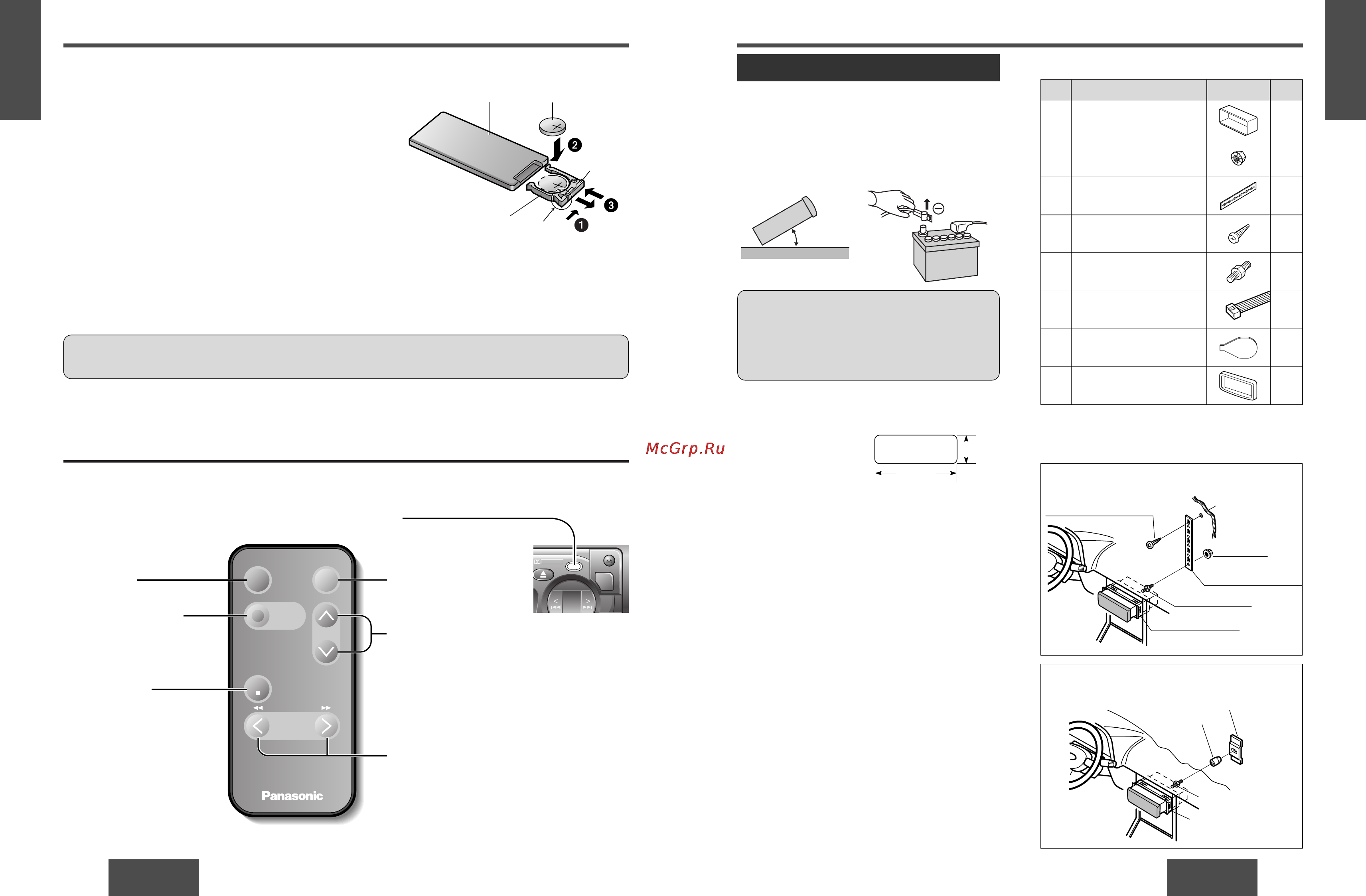

Battery Installation
Remove the battery holder.
Press and hook A of the battery holder and then pull it out.
Install the battery on the battery holder.
Set a new battery properly with its “+” side facing up as shown
in the figure.
Insert the battery holder.
Push the battery holder back into its original position.
Battery Notes
Remove and dispose of an old battery immediately.
Battery Information:
• Battery type: Panasonic lithium battery (CR2025) (included)
• Battery life: Approximately 6 months with normal use (at room temperature)
(Back side)
Battery holder
Lithium battery
(included)
Position A
Position B
Caution: Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire.
Battery leakage may damage the unit.
PWR
MODE
PRG
TUNE
TRACK
Car Audio
BAND/DISC UP
VOL
MUTE
(ATT)
[PWR] (power)
[MODE] (Mode (source))
(
➡ page 14, 18)
• Do not disassemble or short the battery. Do not throw a battery into a fire.
• Keep batteries away from children to avoid the risk of accidents.
• Be careful to observe proper local disposal rules when you dispose of batteries.
Control Reference Guide
Buttons of the remote control function in the same way as the controls on the main unit of the reference page.
Point the remote control unit at the main unit’s sensor (REMOTE).
[MUTE] (Mute)
(
➡ page 12)
[VOL] [}] [{] (Volume)
(Volume Up/down)
(
➡ page 12)
[TUNE][TRACK] [a] [] []] [[]
(Tune/track, selection/search/Fast forward/Fast
reverse)
(
➡ page 14, 18)
Installation
Installation Hardware
• Before installation, check the radio operation with
antenna and speakers.
• Disconnect the cable from the negative (–) battery
terminal (see caution below).
• Unit should be installed in a horizontal position with
the front end up at a convenient angle, but not more
than 30°.
Dashboard Installation
Installation Opening
The unit can be installed
in any dashboard having
an opening as shown at
right. The dashboard
should be 4.5 mm - 6 mm thick in order to be able to
support the unit.
Installation Precautions
This product should be installed by a professional
installer, if possible.
In case of difficulty, please consult your nearest
authorized Panasonic Service Center.
1. This system is to be used only in a 12-volt, DC
battery system (car) with negative ground.
2. Follow the electrical connections carefully (
a page
25). Failure to do so may result in damage to the
unit.
3. Connect the power lead (red) after all other
connections are made.
4. Be sure to connect the battery lead (yellow) to the
positive terminal (+) of the battery or fuse block
(BAT) terminal.
5. Insulate all exposed wires to prevent short circuiting.
6. Secure all loose wires after installing the unit.
7. Please carefully read the operating and installation
instructions of the respective equipment before
connecting it to this unit.
Preparation
30˚ or less
Caution: Do not disconnect the battery terminals of
a car with trip or navigational computer since all
user settings stored in memory will be lost.
Instead take extra care with installing the unit to
prevent shorts.
182 mm
53 mm
Fire Wall of Car
w Hex. Nut
e Rear Support Strap
t Mounting Bolt
q Mounting Collar
r Tapping Screw
(a) Using the Rear Support Strap
Rubber Cushion
(Option)
t Mounting Bolt
q Mounting Collar
Rear Support Bracket
(Provided on the car)
(b) Using the Rubber Cushion (option)
[BAND] [DISC UP]
(Band/Disc change/play
side change)
(
➡ page 14, 18)
No. Item Diagram Q’ty
q
1
1
1
1
1
1
2
1
Mounting Collar
Hex. Nut (5 mmø)
Rear Support Strap
Tapping Screw
(5 mmø
× 16 mm)
Mounting Bolt (5 mmø)
Power Connector
Dismounting Plate
Trim Plate
w
e
r
t
y
u
i
