20

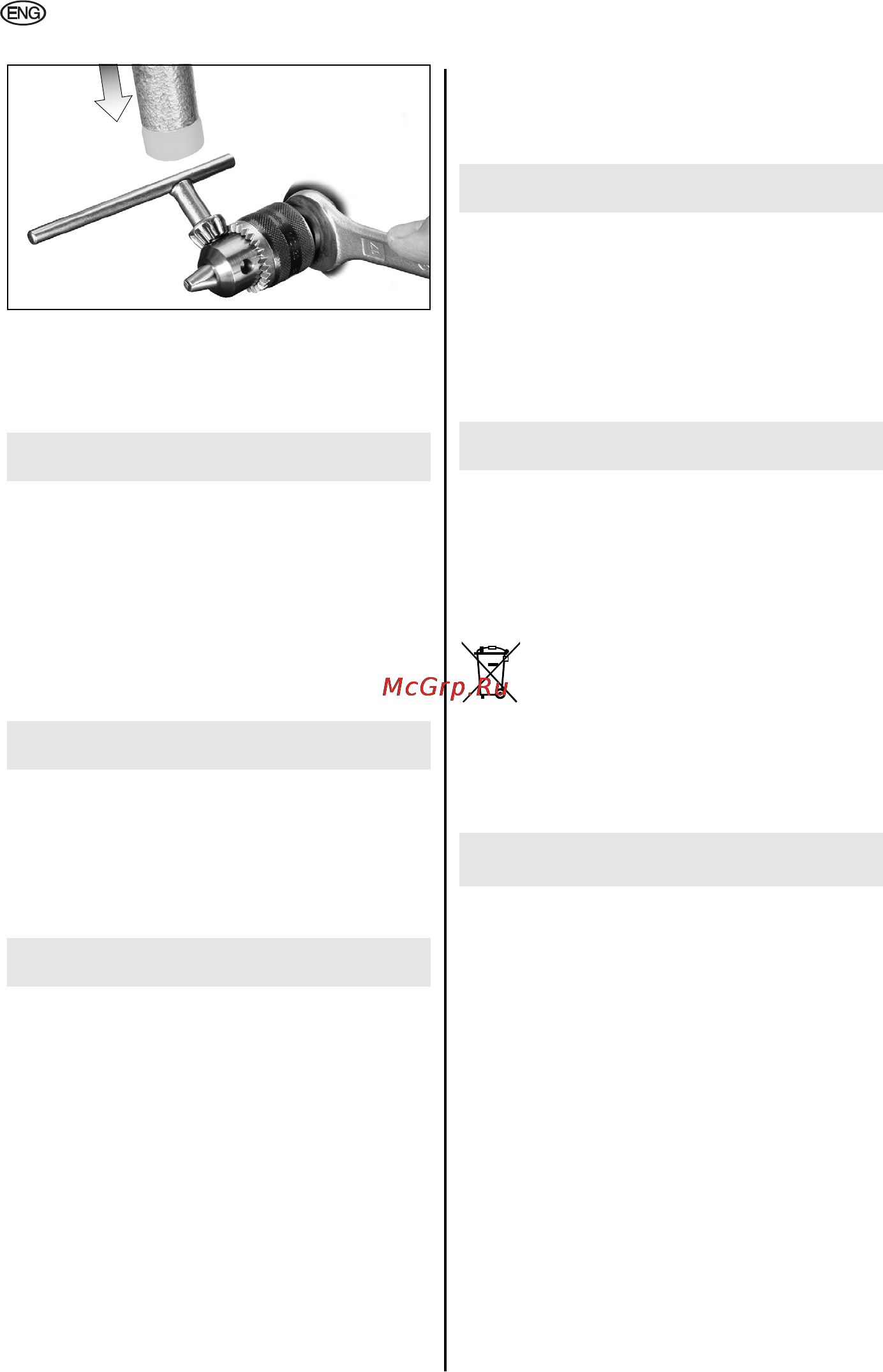

Hold the drill spindle securely using an open-end
wrench. Insert the key in the chuck and strike
lightly with a rubber hammer to loosen, then
unscrew.
In the case of deep bores, pull the drill bit out of the
bore from time to time in order to remove the drill
dust or swarf.
SBE 561, SBE 521, BE 561: The chuck can be
removed to insert a screwdriver bit. Insert the bit
directly in the hexagon socket on the spindle.
The screwdriver bit is retained if a bit clamping
bush
(as an accessory: order no. 6.31281)
is
fitted.
Keyless chuck cleaning:
After prolonged use hold the chuck vertically, with
the opening facing down, and fully open and close
it several times. The dust collected falls from the
opening. Regular use of cleaning spray on the jaws
and jaw openings is recommended.
f
Use only genuine Metabo accessories.
If you need any accessories, check with your
dealer.
For dealers to select the correct accessory, they
need to know the exact model designation of your
power tool.
See page 4.
A Angle attachment
B Flexible drive shaft
C Drill stand
D Machine vice
E Steel wire end brush
F Steel wire cup brush
G Steel wire wheel
H Bit clamping bush
For complete range of accessories, see
www.metabo.com or the main catalogue.
Repairs to electrical tools must be carried out by
qualified electricians ONLY!
Any Metabo power tool in need of repair can be
sent to one of the addresses listed in the spare
parts list.
Please enclose a description of the fault with the
power tool.
Metabo's packaging can be 100% recycled.
Scrap power tools and accessories contain large
amounts of valuable resources and plastics that
can be recycled.
These instructions are printed on chlorine-free
bleached paper.
Only for EU countries: Never dispose of
power tools in your household waste! In
accordance with European Guideline
2002/96/EC on used electronic and
electric equipment and its implementation in
national legal systems, used power tools must be
collected separately and handed in for
environmentally compatible recycling.
Explanatory notes on the specifications on page 2.
Changes due to technological progress reserved.
P
1
= Nominal power input
P2 = Power output
n
0
= No load speed
n
1
= Speed at rated load
ø max = Max. solid drill diameter
s max = Max. impact rate
G = Drill spindle thread
H = Drill spindle with hexagon socket
m = Weight without mains cable
D = Collar diameter
Vibration total value (vector sum of three
directions) determined in accordance with
EN 60745:
a
h, ID
= Vibration emission value
(impact drilling into concrete)
a
h, D
= Vibration emission value
(drilling into metal)
8 Tips and Tricks
9 Maintenance
10 Accessories
11 Repairs
12 Environmental Protection
13 Technical Specifications
