DSK165.3 160 W
DSK170.3 160 W DT 24.3 80 W
DSK130.3 120 W
DCX 87.3 60 W
DCX 460
.3 80 W
DCX 100.3 60 W
DCX 690.3 180 W
DCX 570.3 120 W
DCX 170.3 100 W
DCX 130.3 80 W
DCX 165.3 120 W
DCX 710.3 300 W
1. Large motor assembly for mobile voice coil control.
2. Pure copper voice coil, wound on conex former, for maximum lightness.
3. Water-repellent treated paper cone.
4. TPU surround, for wide excursion and resonance damping.
5. Neodymium tweeter with PEI dome, for compactness and energy at high
frequencies.
6. DIN size basket protected by abrasion-proof dust paint.
7. Tin-plated, high current terminals.
8. Silver-plated lead wires for maximum reliability and conductivity.
9. Butyl rubber protective cover, against crashes and abrasions.
10. Epoxy glue for basket and motor system provides perfect coupling.
11. Low carbon content plates for maximum magnetic permeability and high
heat dissipation.

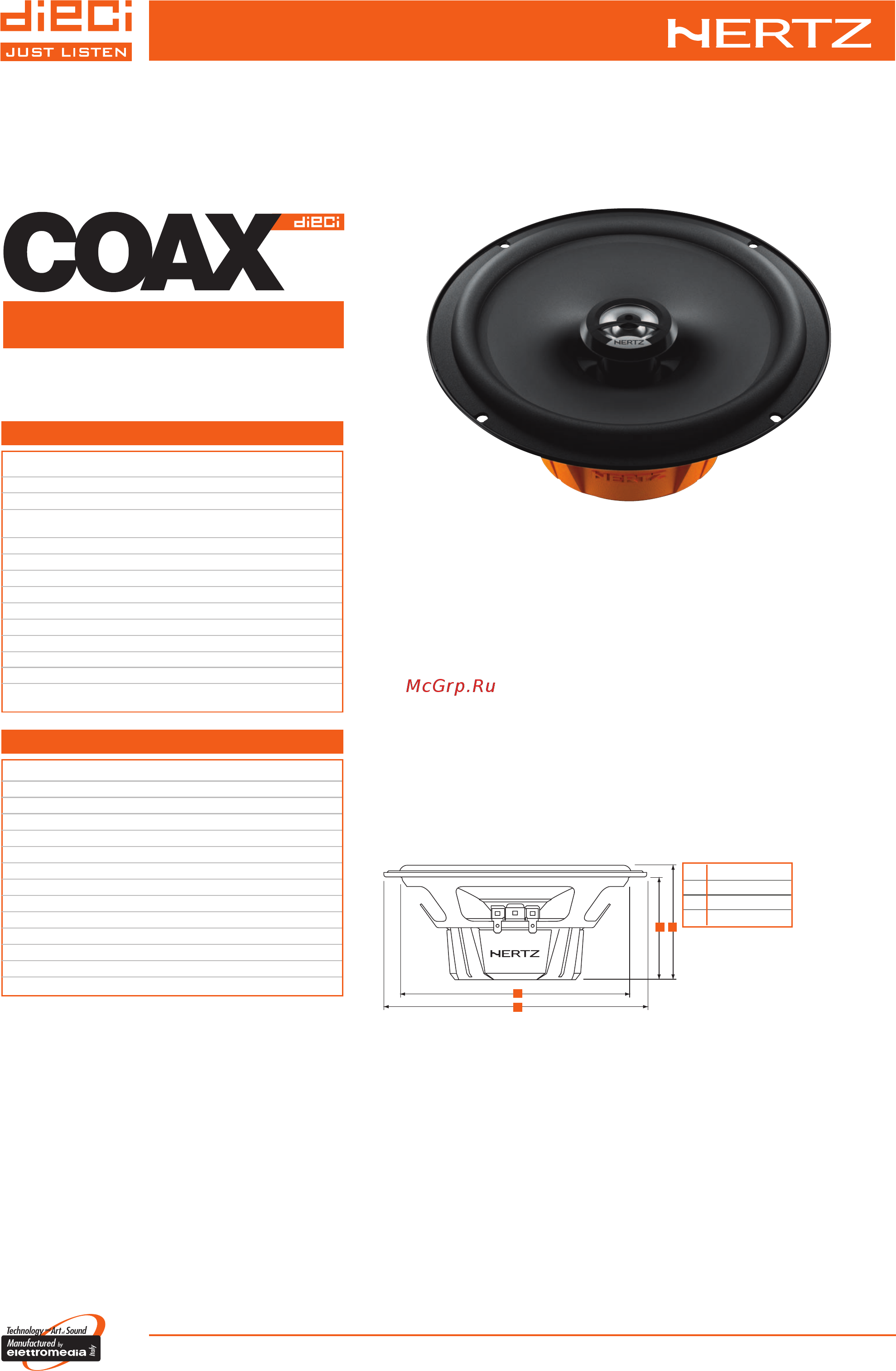

Technical Specifications
Electro-Acoustic Parameters
Component - Two way coaxial
Woofer size mm (in.) 165 (6.5)
Tweeter size mm (in.) 15 (0.6)
Power handling W peak 120
W continuous 60
Impedance Ω 4
Frequency response Hz 60 ÷ 21k
Sensitivity dB SPL 93
Magnet size D·d·h mm (in.)
80 x 40 x 15 (3.1 x 1.6 x 0.6)
Voice coil Ø mm (in.) 25 (1.0)
Woofer magnet - High density ux ferrite
Tweeter magnet - Neodymium
Woofer cone -
Water-repellent pressed paper
Tweeter dome - PEI
Weight of one component
kg (lb.) 0,77 (1.69)
D mm 135
Xmax mm 2
Re Ω 3,3
Fs Hz 68
Le mH @ 1 kHz -
Le mH @ 10 kHz -
Vas l 14,3
Mms g 11,0
Cms mm/N 0,49
BL T·m 4,0
Qts - 0,85
Qes - 0,96
Qms - 7,54
Spl dB 93
DCX 87.3
DCX 100
.3
DCX 130
.3
DCX 165.3
DCX 570
.3
DCX 690.3
DCX 710.3
DCX 170.3
A 257 mm 10”
1/8
B 234 mm 9”
3/16
C 116 mm 4”
9/16
D 104 mm 4”
1/8
A 34 mm (1,3 in.)
B -
C 20 mm (0,8 in.)
D 13 mm (0,5 in.)
G 44 mm (1,7 in.)
H 26 mm (1,0 in.)
I 20 mm (0,8 in.)
D C
A
H
GI
B
D C
A
A3
A 87 mm (3.4 in.)
A3 120 mm (4.7 in.)
B 81 mm (3.2 in.)
C 45 mm (1.8 in.)
D 34 mm (1.3 in.)
A 99 mm (3.9 in.)
A3 129 mm (5.1 in.)
B 94 mm (3.7 in.)
C 50 mm (2.0 in.)
D 43 mm (1.7 in.)
B
D C
A
A3
B
D C
A
A3
A 130 mm (5.0 in.)
A3 151 mm (5.9 in.)
B 116 mm (4.6 in.)
C 59 mm (2.3 in.)
D 52 mm (2.0 in.)
A 165 mm (6.5 in.)
B 144 mm (5.7 in.)
C 72 mm (2.8 in.)
D 64 mm (2.5 in.)
B
D C
A
A 165 mm (6.5 in.)
B 140 mm (5.5 in.)
C 51 mm (2.0 in.)
D 45 mm (1.8 in.)
B
D C
A
A1
A2 141 mm (5.6 in.)
B1 182 mm (7.2 in.)
B2 127 mm (5 in.)
C 66 mm (2.6 in.)
D 59 mm (2.3 in.)
220 mm (8.7 in.)
B2
D C
A2
B1
A1
A1
A2
B1 224 mm (8.8 in.)
B2 153 mm (6.0 in.)
C 98 mm (3.9 in.)
D 77 mm (3.0 in.)
237 mm (9.3 in.)
162 mm (6.4 in.)
B2
D C
A2
B1
A1
B2
D C
A2
A1
A2
B1 238 mm (9.4 in.)
B2 167 mm (6.6 in.)
C 110 mm (4.3 in.)
D 84 mm (3.3 in.)
253 mm (10 in.)
181 mm (7.1 in.)
B1
A1
A 130 mm (5.0 in.)
A3 151 mm (5.9 in.)
B 116 mm (4.6 in.)
C 58 mm (2.3 in.)
D 52 mm (2.0 in.)
B
D C
A
A3
A 34 mm (1.3 in.)
B -
C 20 mm (0.8 in.)
D 13 mm (0.5 in.)
D C
A
A 34 mm (1.3 in.)
B -
C 20 mm (0.8 in.)
D 13 mm (0.5 in.)
D C
A
G 75 mm (3.0 in.)
H 45 mm (1.8 in.)
I 21 mm (0.8 in.)
G
H
I
A 34 mm (1.3 in.)
B -
C 20 mm (0.8 in.)
D 13 mm (0.5 in.)
D C
A
A 165 mm (6.5 in.)
B 144 mm (5.7 in.)
C 72 mm (2.8 in.)
D 64 mm (2.5 in.)
B
D C
A
A 165 mm (6.5 in.)
B 140 mm (5.5 in.)
C 50 mm (2.0 in.)
D 45 mm (1.8 in.)
B
D C
A
E 264 mm (10.4 in.)
F 192 mm (7.6 in.)
G 28 mm (1.1 in.)
F
E
G
F
E
G
E 285 mm (11.2 in.)
F 215 mm (8.5 in.)
G 30 mm (1.2 in.)
G 75 mm (3.0 in.)
H 45 mm (1.8 in.)
I 21 mm (0.8 in.)
G
H
I
G 75 mm (3.0 in.)
H 45 mm (1.8 in.)
I 21 mm (0.8 in.)
G
H
I
