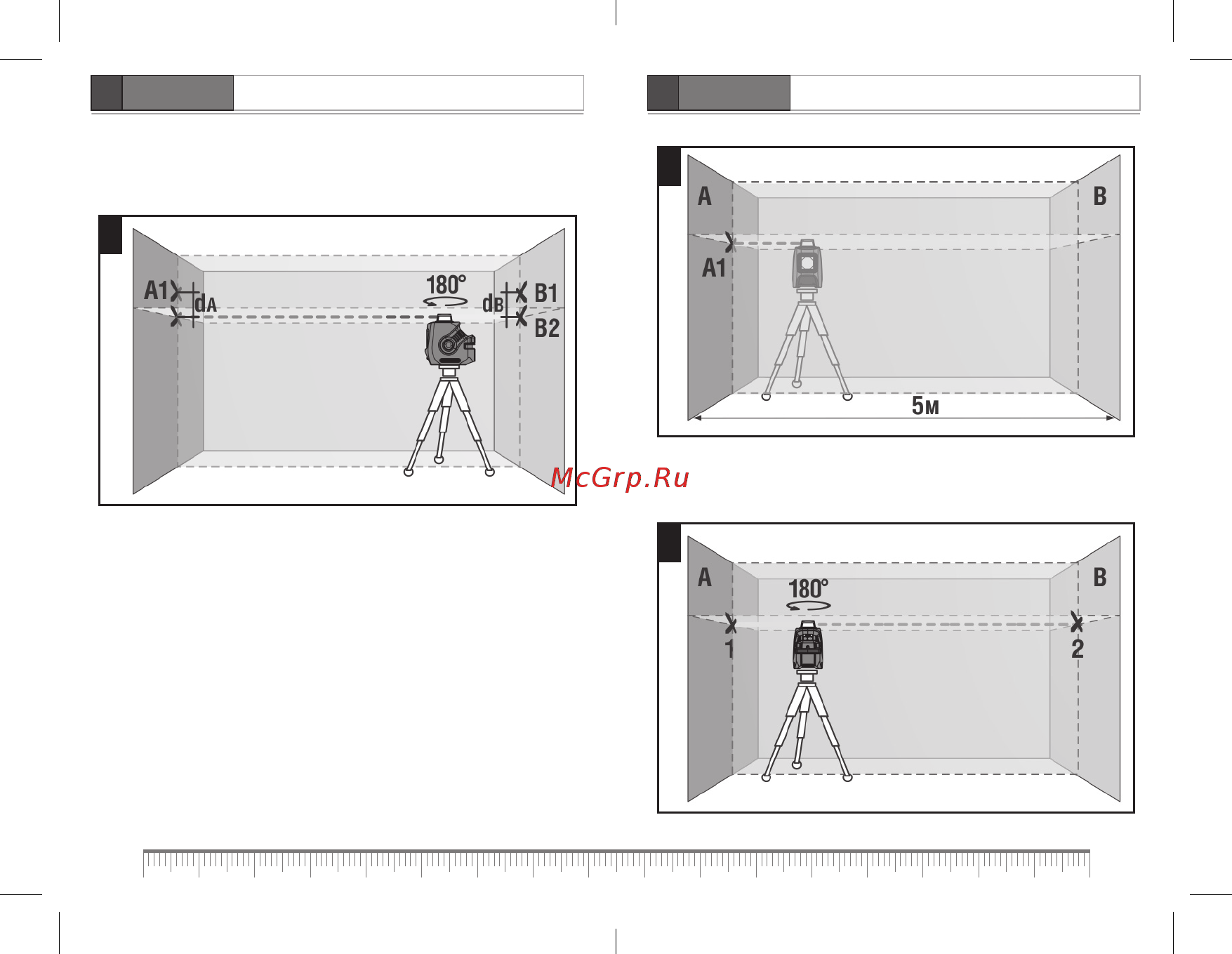

2. Turn the instrument by 180°, mark the point where laser lines

intersect each other on the opposite wall as В2. (see Fig. В).

5. Turn the instrument by 180 ° and mark the point where laser lines

intersect each other on the opposite wall as A2 (A1, A2 must be on the

same vertical line) (see figure D).

6. Measure distance dA between points A1 and A2 and dB between

points B1 and B2 (see Figure D). If deviation between dA and dB values

exceeds 3 mm, please contact the service center.

NEO X2-360

Use 2 parallel vertical walls which are located opposite each other at

a distance of 5 m.

1. Set the instrument close to the wall A (see Fig. A). Switch on the

vertical and horizontal laser emitters, unlock the compensator. Turn

the instrument in such a way so that the laser lines intersecting each

other are projected on the near wall A opposite the instrument. Mark

the point where laser lines intersect each other as A1.
