3. Accessories connection

Make sure that the compressor is OFF before connecting the accessories

dedicated to these in the following pages.

It is normal for the compressor to stop and start automatically at intervals as use of

compressed air varies

For safety reasons, certain accessories must operate at a specific air pressure indicated

in the sections You can check the pressure level

by looking at the gauge or the numbered notches on the knob whose values represent the

related pressures

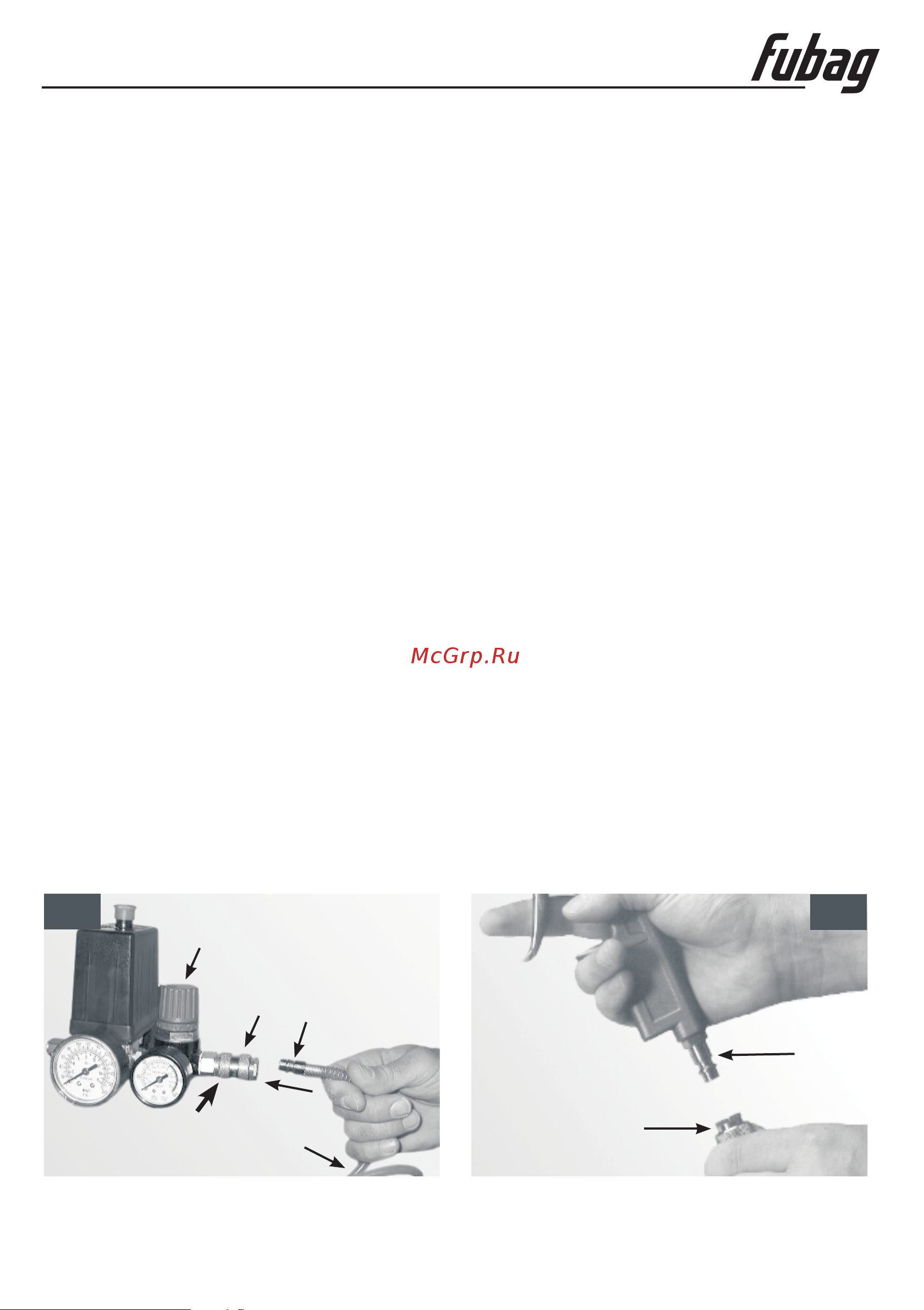

1. All the accessories are fitted with quick connectors as shown above (figures. 2). All the

accessories are connected to the compressor via the coiled air line using the quick connector.

3. Make sure that pressure adjustment knob is turned fully in an counterclockwise direction, thus

shutting off the air supply before starting the compressor.

4. Connect the coiled air line B to compressed air outlet (fig. 1) using coupling . Push coupling

firmly inside outlet .Aclicking noise will indicate that the coupling is engaged.

5. Once you have fastened this end of the coiled air line , you can connect any accessory to the

other end , pushing firmly, for example, coupling inside (figures 2). In this case also, a clicking

noise will indicate that the coupling is engaged

6. When the coiled air line is connected securely both to the compressor and the accessory, you can

start to use the compressor.

7. Switch on the compressor. Once the pre-set pressure has been reached, the compressor will

switch off automatically.

8. When you have finished using the accessory, close the compressed air outlet by fully rotating

pressure regulation knob in a counterclockwise direction. Test that the air supply is closed by

operating the accessory until all the air has been used. At this point, disconnect the coiled air line

from the compressor by pulling back outer sleeve (fig. ). Disconnect coupling from the

accessory according to the procedure explained for coupling (fig. 1).
