Fubag 120102, 5 предметов [4/18] Paint spray gun

Omperator's anual

www.fubag.ru

- 3 -

4 Paint spray gun.

’.

- Some paints and other materials are combustible when sprayed and should not therefore

be sprayed .

of materials, please consult the Manufacturer before use.

Always wear a protective mask, goggles and protective gloves when spray painting. Spray

paint only in a well-ventilated area. The accessory must always be used in accordance with

the Manufacturer s instructions and safety regulations

close to flames or any heat source or any areas where sparks may occur If in

doubt about the safe use

1. Connect the paint spray gun to the compressor as explained in chapter 3.

2.Adjust working pressure to the value indicated for this accessory.

3. Position the paint cup A and screw it into the socket B ( . ). Make sure that the paint cup is

securely screwed into the socket, otherwise paint may leak during use.

4. Remove the lid C of paint cupA( . ).

5. The paint or the material to be sprayed can now be inserted in paint cupA.

6. Replace paint cup lid C by securely pushing this into paint cup A ( . ).

7. The spray pattern (horizontal or vertical spraying) can be adjusted by loosening ring D and turning

nozzle E and then retightening ring D ( . ).

8. The width of the spray pattern can be adjusted by rotating the adjustment knob F ( . ).

9. The volume of paint/material sprayed can be adjusted by reducing or increasing the stroke of

trigger G, turning the adjustment knob H ( . ).

10. To operate the paint spray gun, pull trigger G ( . ). Pulling the trigger half way, compressed air

only is passed through nozzle E. This facility is useful when you have fi nished painting and want to

clean the gun. Pulling trigger G so that it is fully engaged, material is introduced in the gun and spray

painting can begin.

11. During spraying, release the vent valve I of paint cupA( . ).

fig 1

fig 2

fig 3

fig 4

Before using the spray gun practice on a test material in order to establish the correct pattern of

spray and the correct quantity of material to be applied

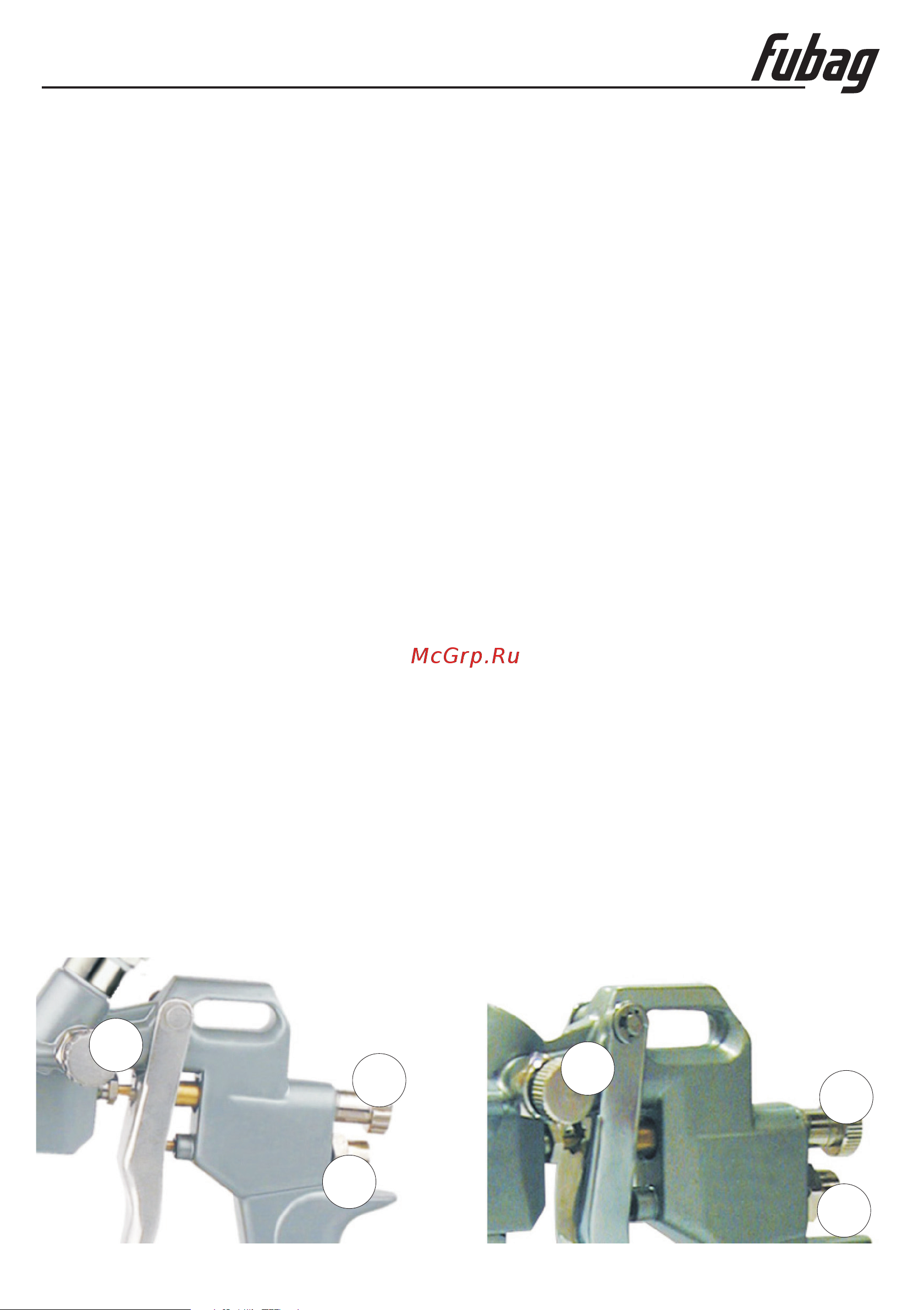

The air spray gun is equipped with a painting tank, a regulator of the paint quantity (1), a regulator of

the air flow (2) and a regulator of the spraying mode (3).
