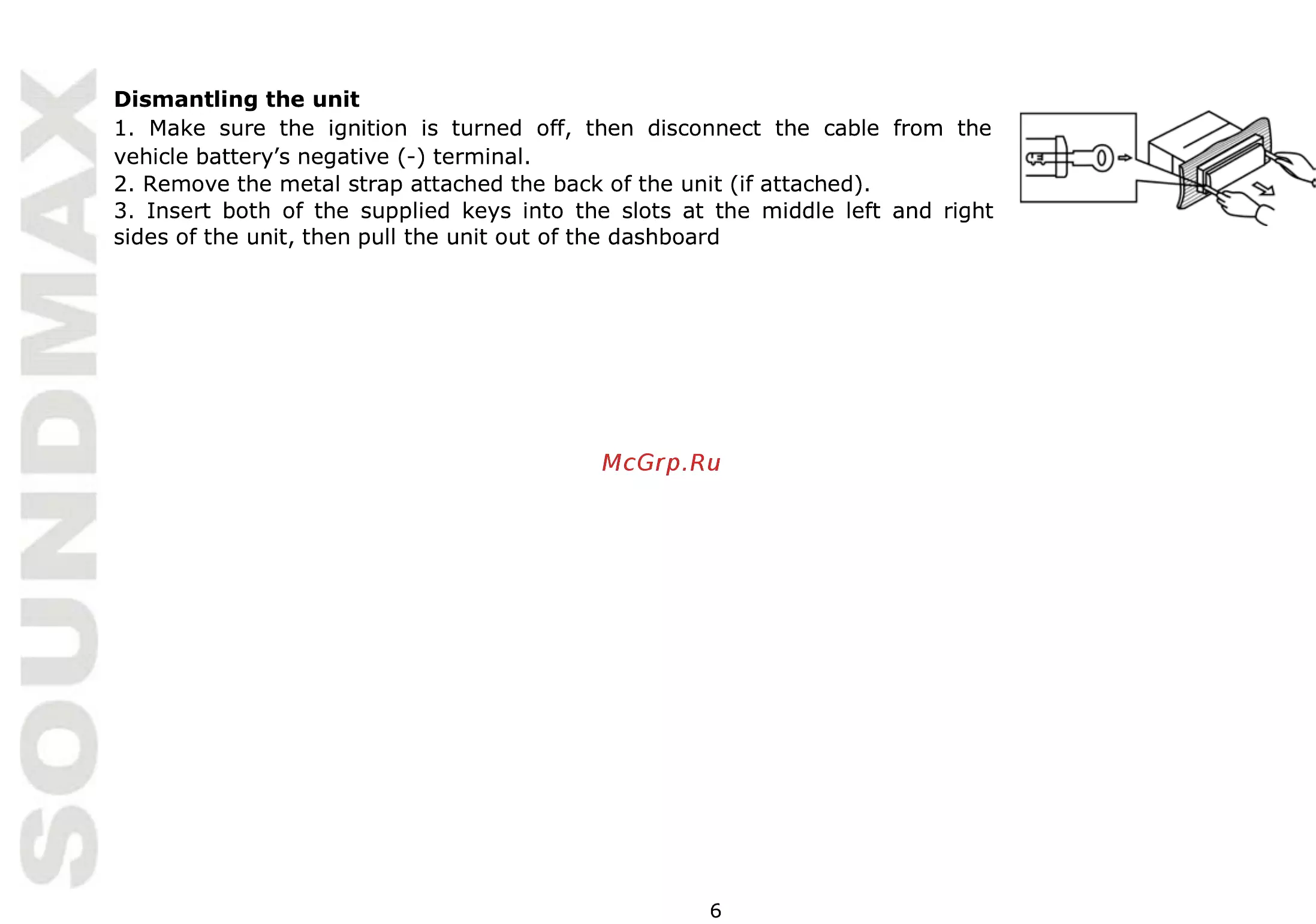

The negative electrode of the speaker mustn't be grounded, or else it may burn the player!

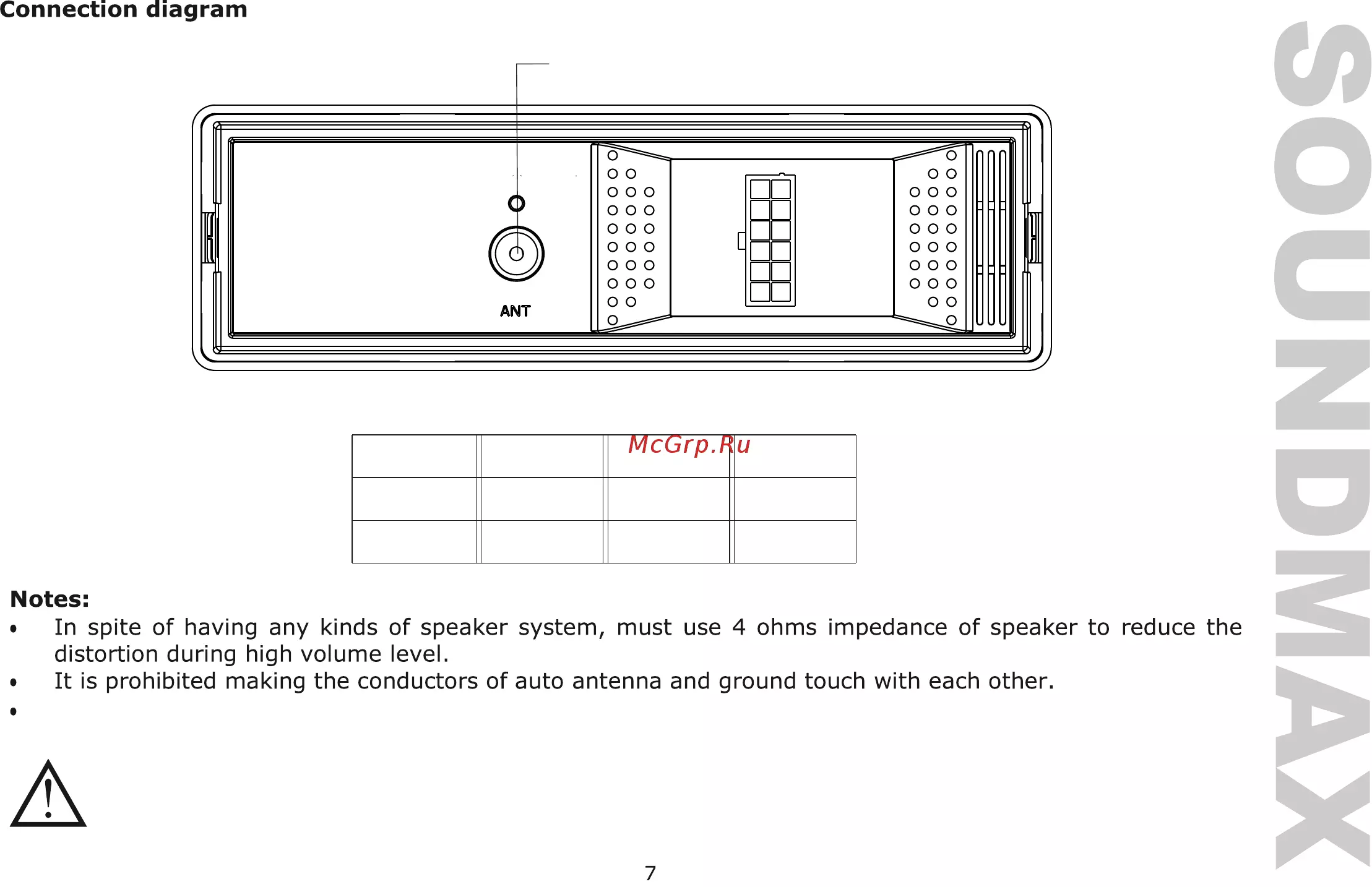

Attention, the 12-pin connector cable must be carefully matched with description on RL, connection

of any wrong cables (WHITE-BLACK/ GREEN-BLACK/ PURPLE-BLACK/ GRAY-BLACK) with the Black

cable (Ground) can be the reason of a malfunction of the built-in amplifier.

1-FL+

5-B+

9-RR+

10-RR-

11-ANT

12-ACC

2-FL-

6-GND

3-RL+

7-FR+

4-RL-

8-FR-

Antenna Terminal
