Indoor Unit SiBE04-808_B
163 Removal Procedure
5

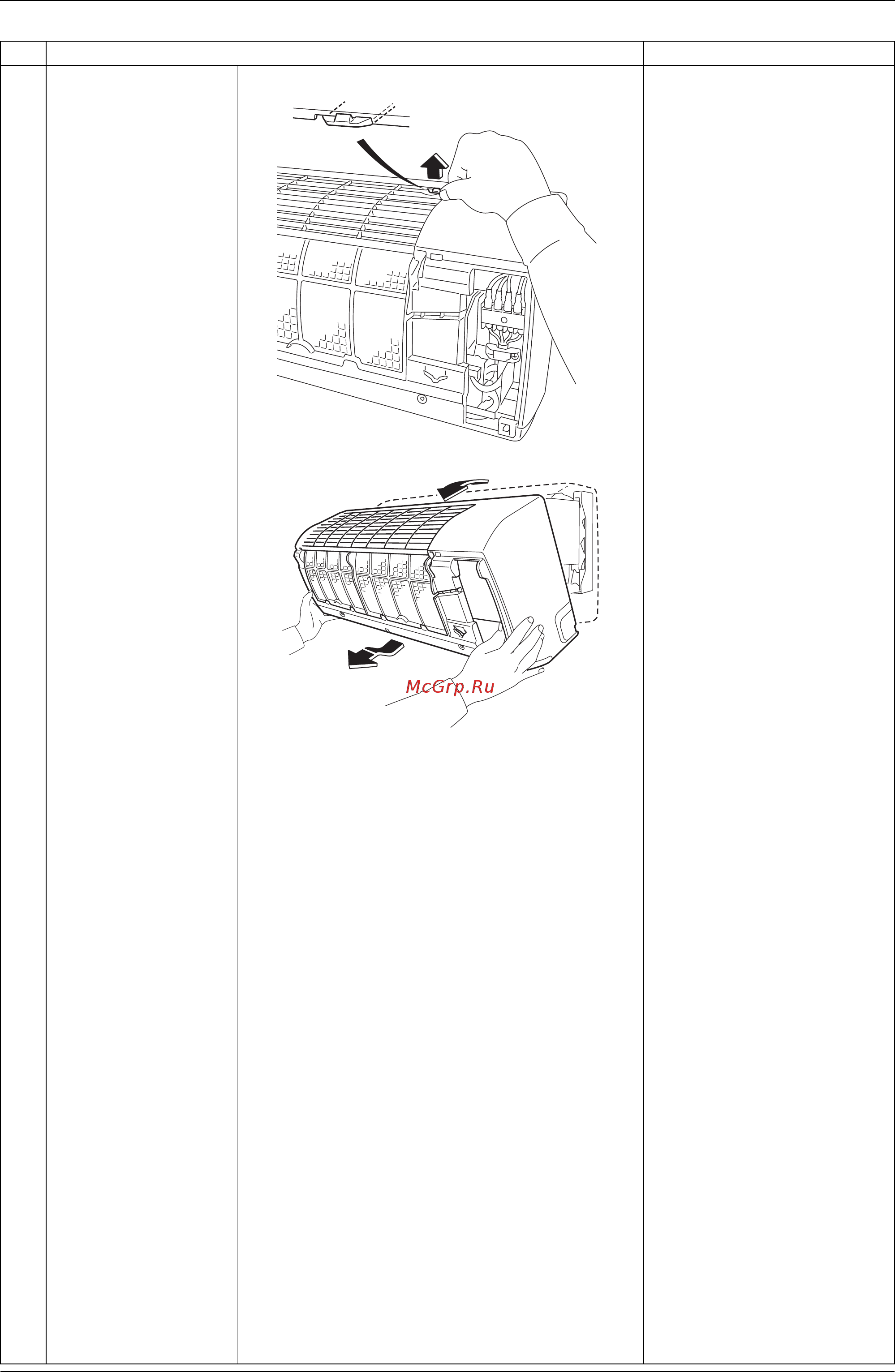

Unfasten the right hook.
6
Pull the upper part of
the front grille out and
lift the lower part up,
and then remove the
front grille.
Caution on Mounting
When mounting the front
grille, make sure that the 3
hooks are fastened as they
were.
Step Procedure Points
(R8078)
(R12268)
