Daikin FTXS25G2V1B [291/319] Removal of sound blanket thermistors
![Daikin FTXS25G2V1B [291/319] Removal of sound blanket thermistors](/views2/1761734/page291/bg123.png)
SiBE04-808_B Outdoor Unit - RK(X)S50G2V1B, ARXS50G2V1B
Removal Procedure 280

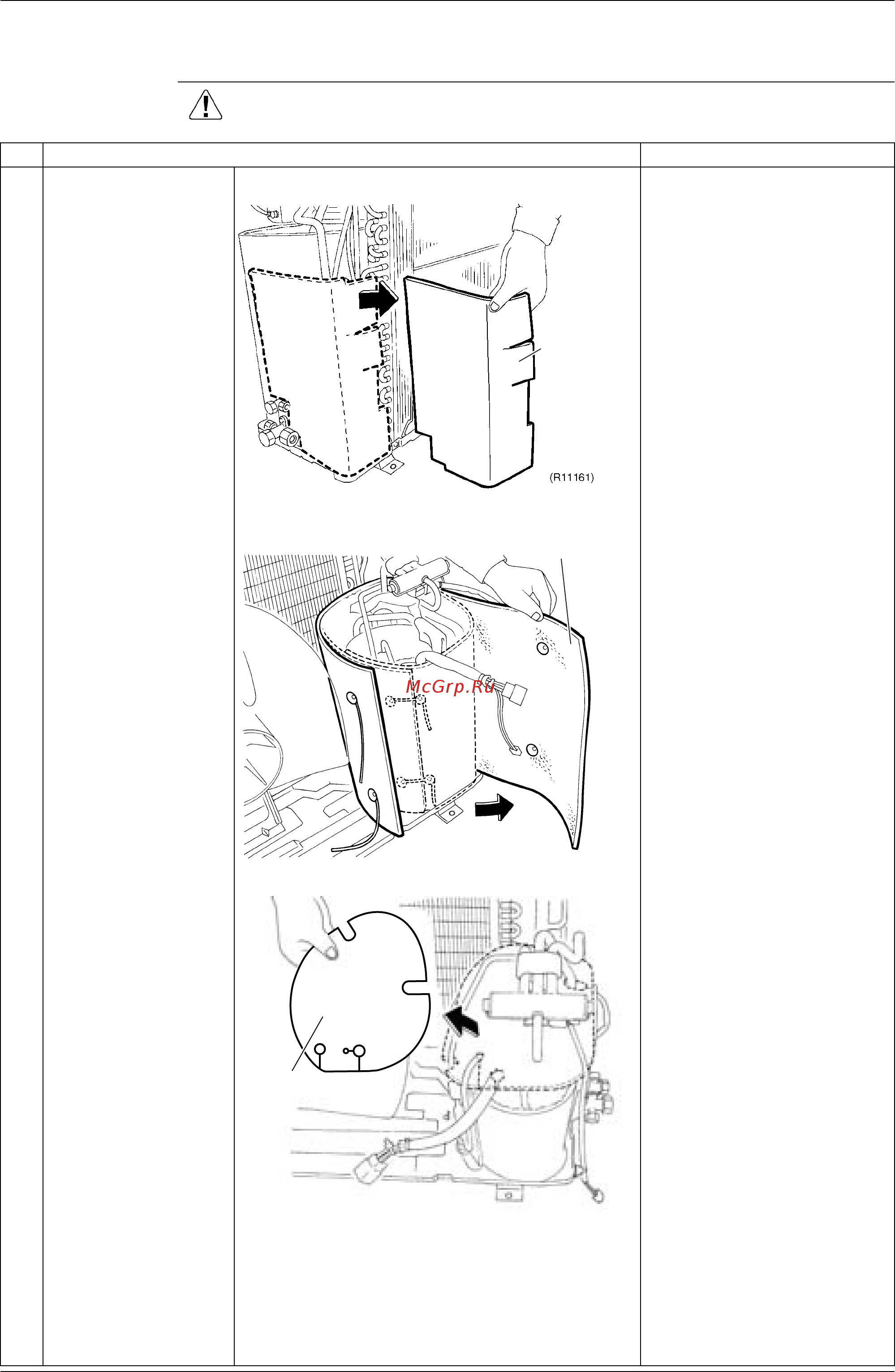

5.5 Removal of Sound Blanket / Thermistors
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
Remove the sound
blanket (back).
2
Remove the sound
blanket (outer).
Since the piping ports are
torn easily, remove the
sound blanket carefully.
3
Remove the sound
blanket (top upper).
Sound blanket
(back)
(R5293)
Sound blanket
(outer)
(R5294)
Sound blanket
(top upper)
