SiBE04-808_B Indoor Unit
Removal Procedure 162

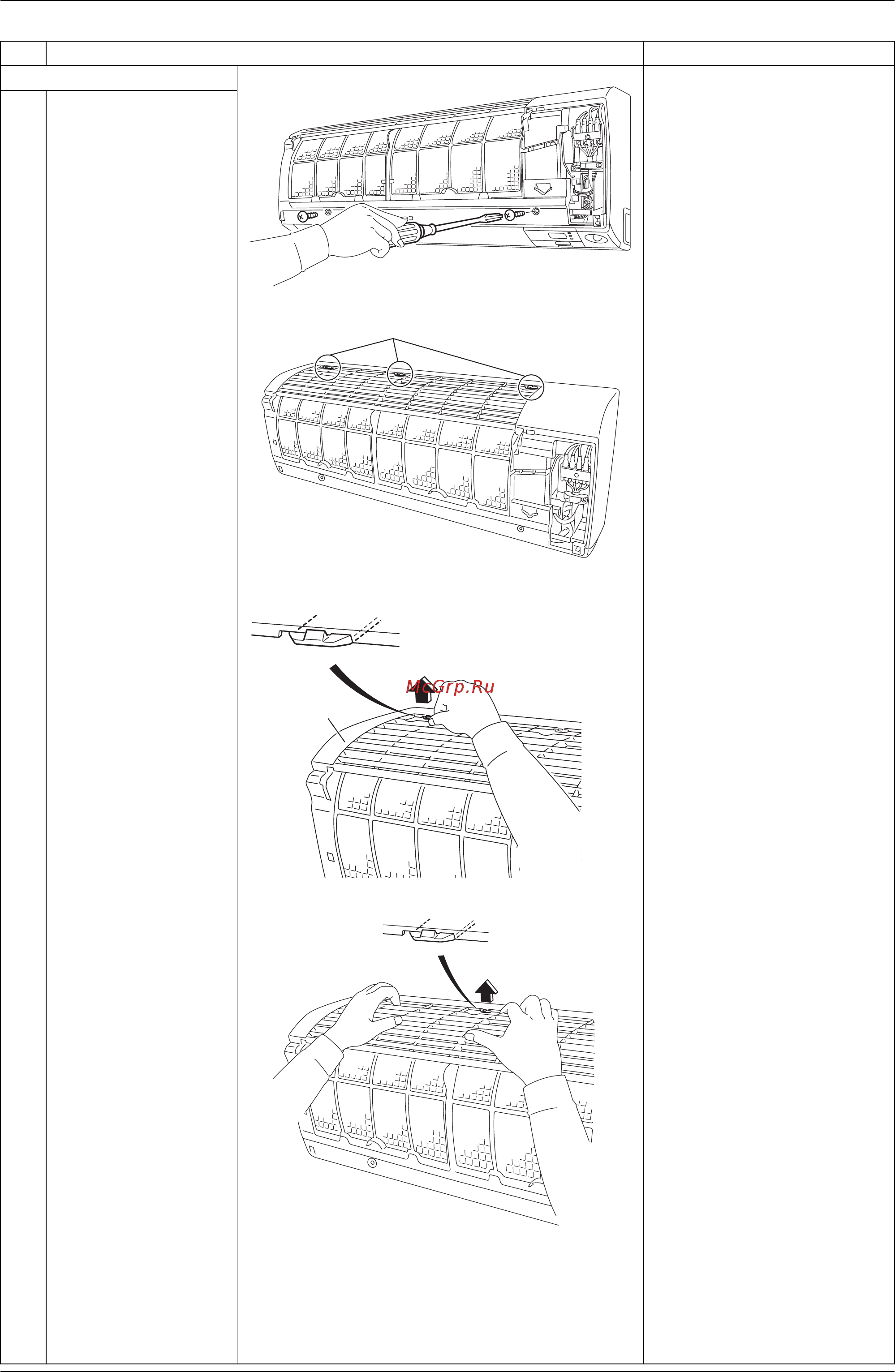

2. Remove the front grille.
1
Remove the 2 screws.
(one each at the right
and left)
2
The front grille has 3
hooks at the top.
3
Unfasten the left hook.
4
Unfasten the center
hook.
Step Procedure Points
(R12267)
(R8076)
Hooks
(R7917)
Front grille
