SiBE04-808_B Indoor Unit
Removal Procedure 166

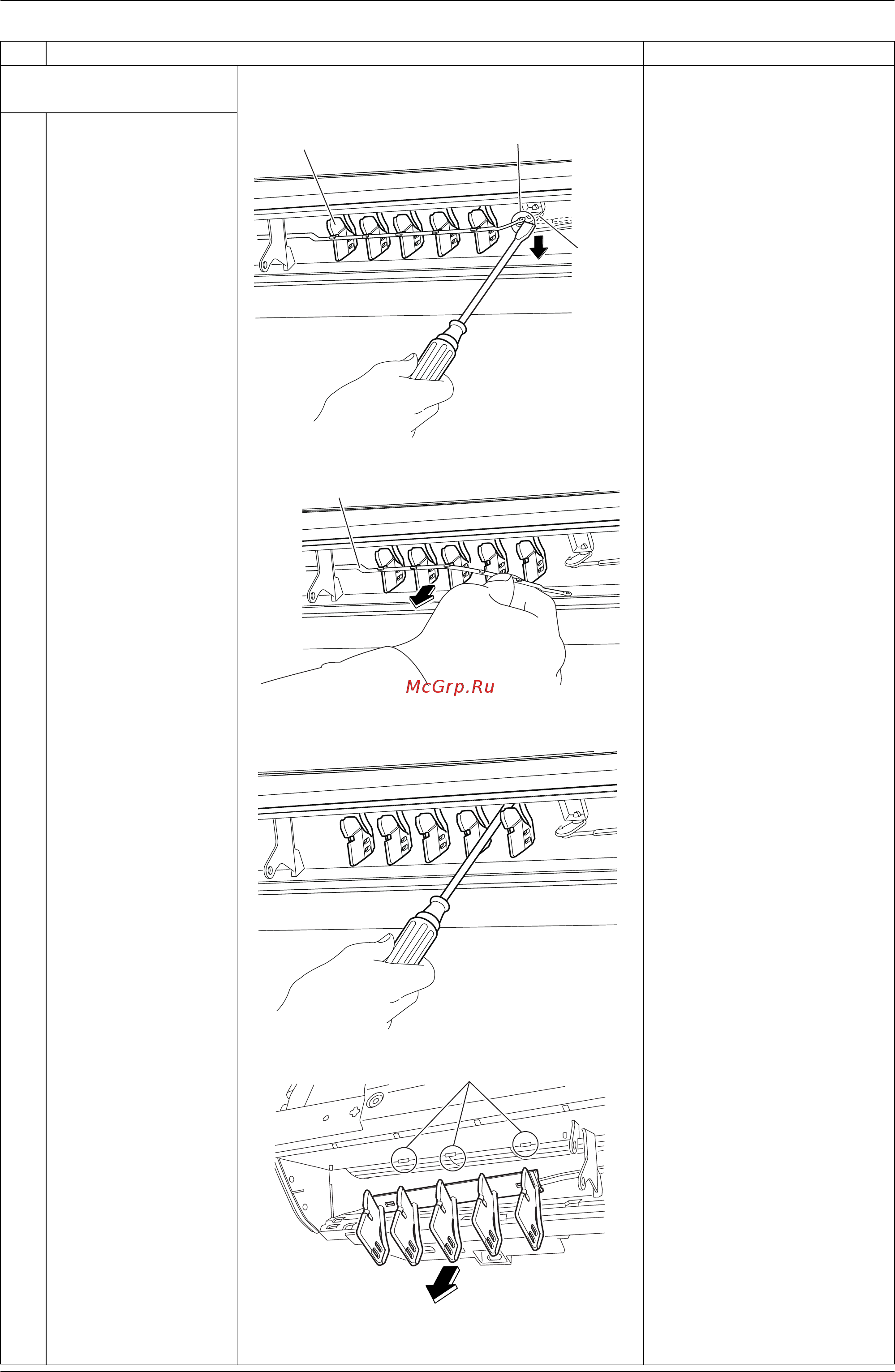

4. Remove the vertical blade
ASSY.
1
Detach the pivot from
the interlock shaft for
vertical blades with a
flat screwdriver.
2
Remove the interlock
rod.
3
Unfasten the hooks at
the upper 3 positions by
pressing them with a
flat screwdriver.
4
Remove the vertical
blade ASSY.
A vertical blade ASSY has 5
fins. It is impossible to
replace only one fin.
The vertical blade ASSY is
not marked for difference
between right and left.
Step Procedure Points
(R12270)
Vertical blade ASSY
Pivot
Interlock
shaft
(R10302)
Interlock rod
(R10303)
(R12269)
Hook
