Indoor Unit SiBE04-808_B

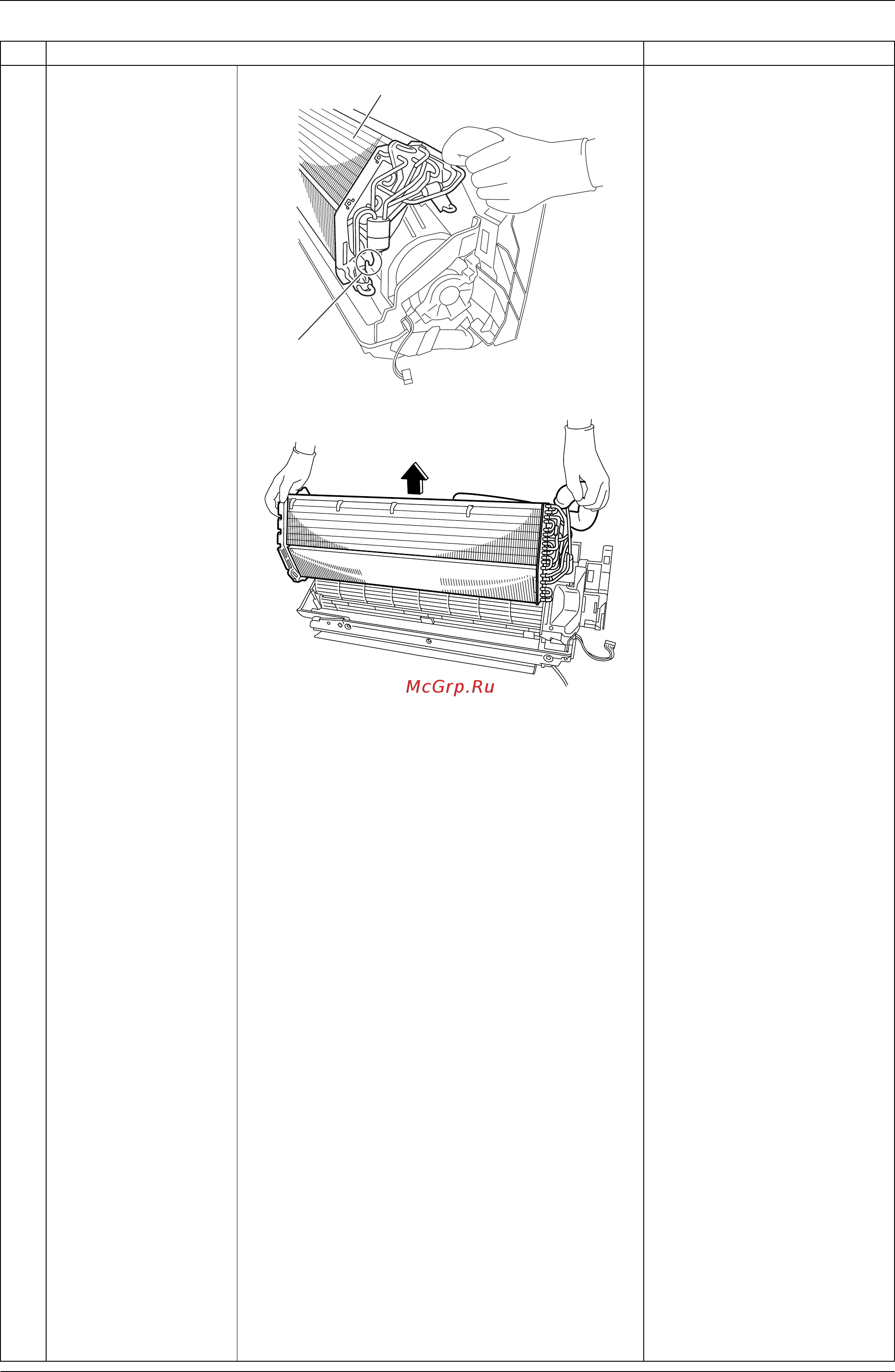

177 Removal Procedure
5
After unfastening the
lower hooks, lift up the
indoor heat exchanger
by its right side.
When mounting the indoor
heat exchanger, make sure
that the hook (right) is
fastened.
6
Remove the indoor heat
exchanger.
Step Procedure Points
(R10327)
Indoor heat exchanger
Hook
(R10328)
