SiBE04-808_B Outdoor Unit - RK(X)S20-35G2V1B, ARXS20-35G2V1B
Removal Procedure 188

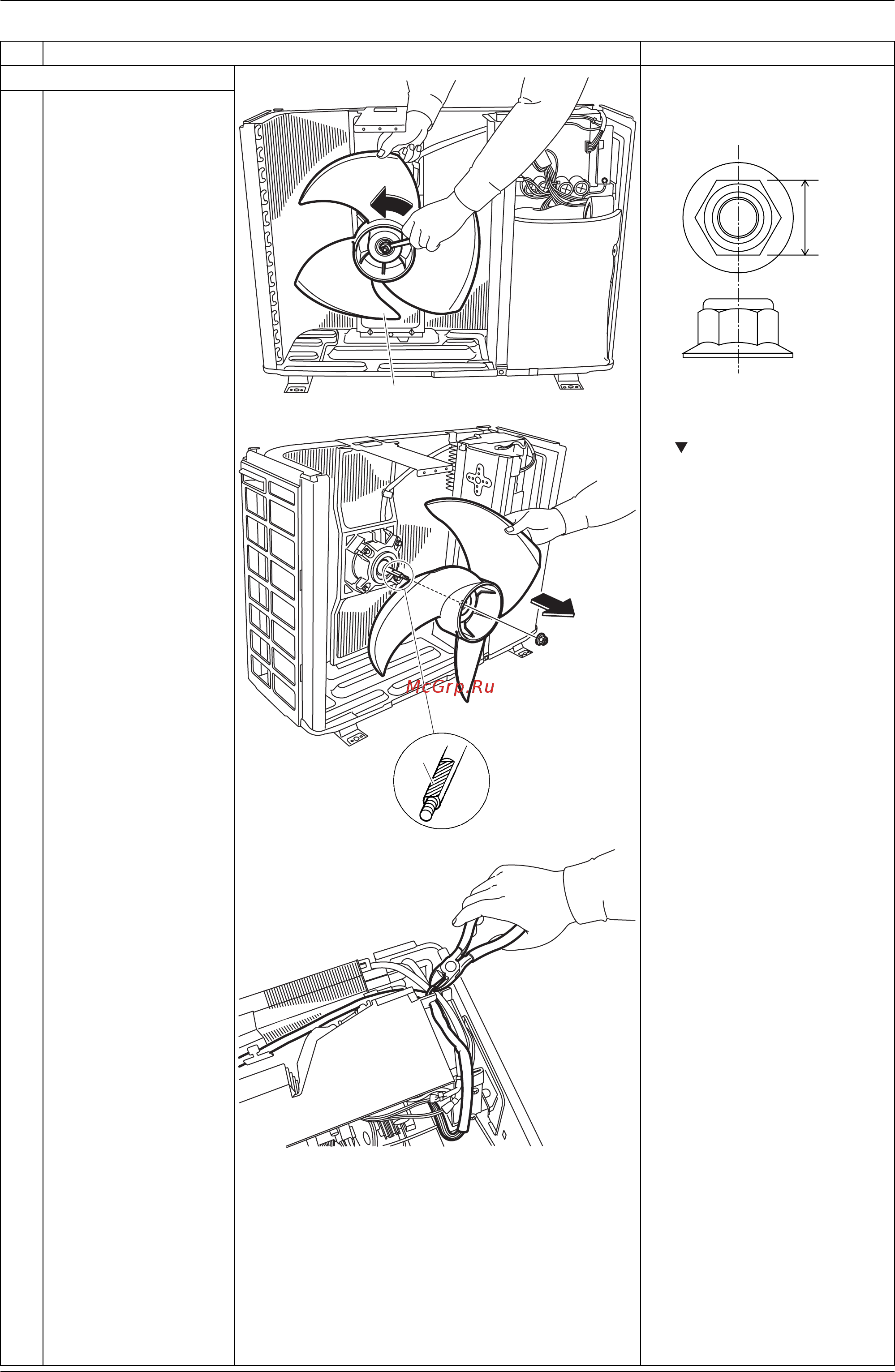

3. Remove the fan motor.
The screw has reverse
winding.
Nut size: M6
1
Remove the washer-
fitted nut of the outdoor
fan.
2
Remove the outdoor
fan.
When reassembling, align
mark of the outdoor fan
with D-cut section of the
motor shaft.
3
Cut the clamp.
Step
Procedure Points
(R7196)
Outdoor fan
10 mm
(R12236)
D-cut
(R7197)
(R7198)
