Outdoor Unit - RK(X)S20-35G2V1B9, ARXS20-35G3V1B SiBE04-808_B
217 Removal Procedure
8

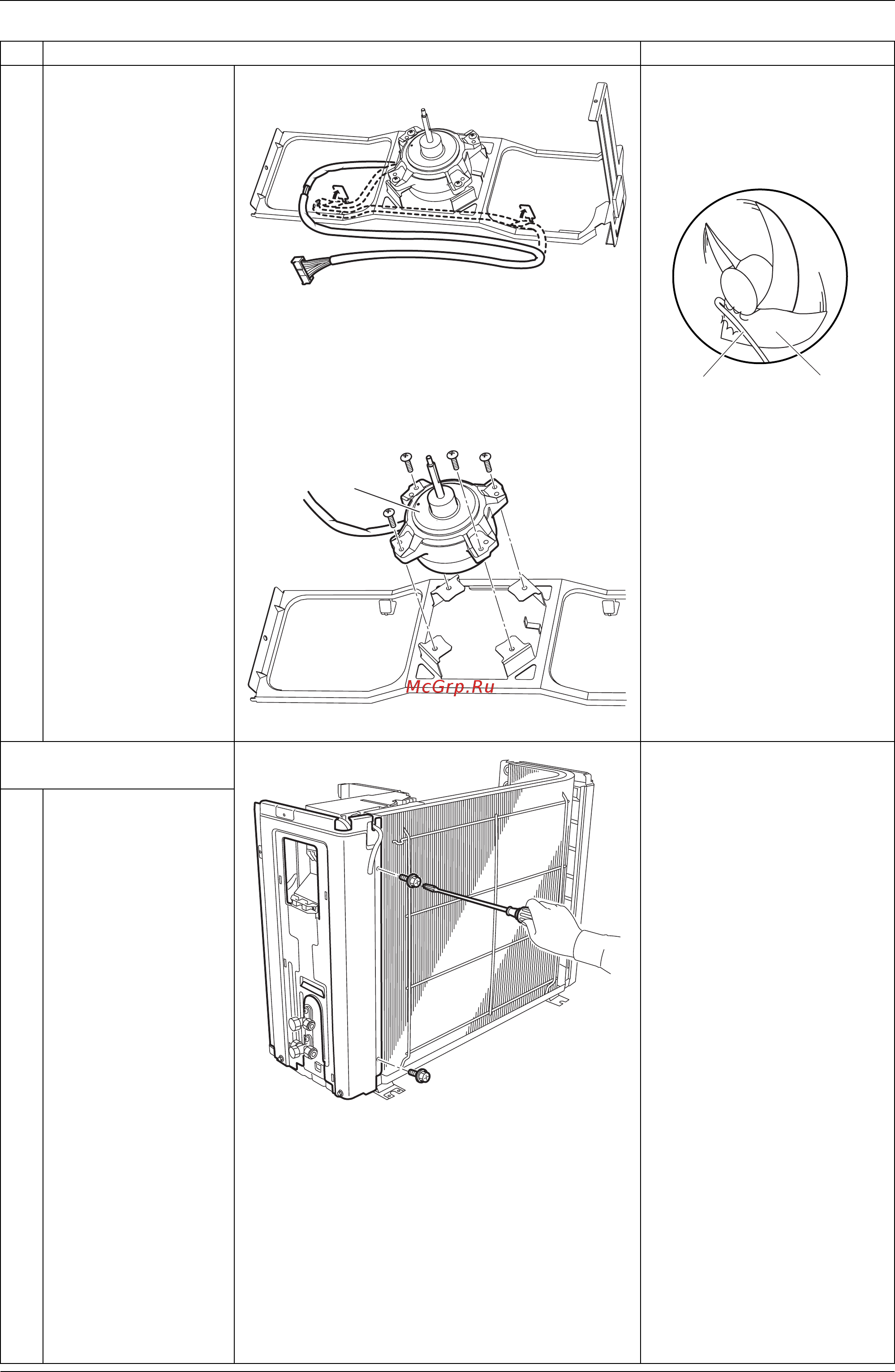

Open the hooks and
release the fan motor
lead wire.
When reassembling, put the
fan motor lead wire through
the back of the fan motor
(so as not to be entangled
with the outdoor fan).
9
Remove the 4 screws
and remove the fan
motor.
4. Remove the right side
panel.
1
Remove the 2 screws
on the rear side.
Step
Procedure Points
(R11835)
(R3249)
Lead wire Outdoor fan
(R12311)
Fan motor
(R12162)
