SiBE04-808_B Outdoor Unit - RK(X)S20-35G2V1B9, ARXS20-35G3V1B
Removal Procedure 224
4

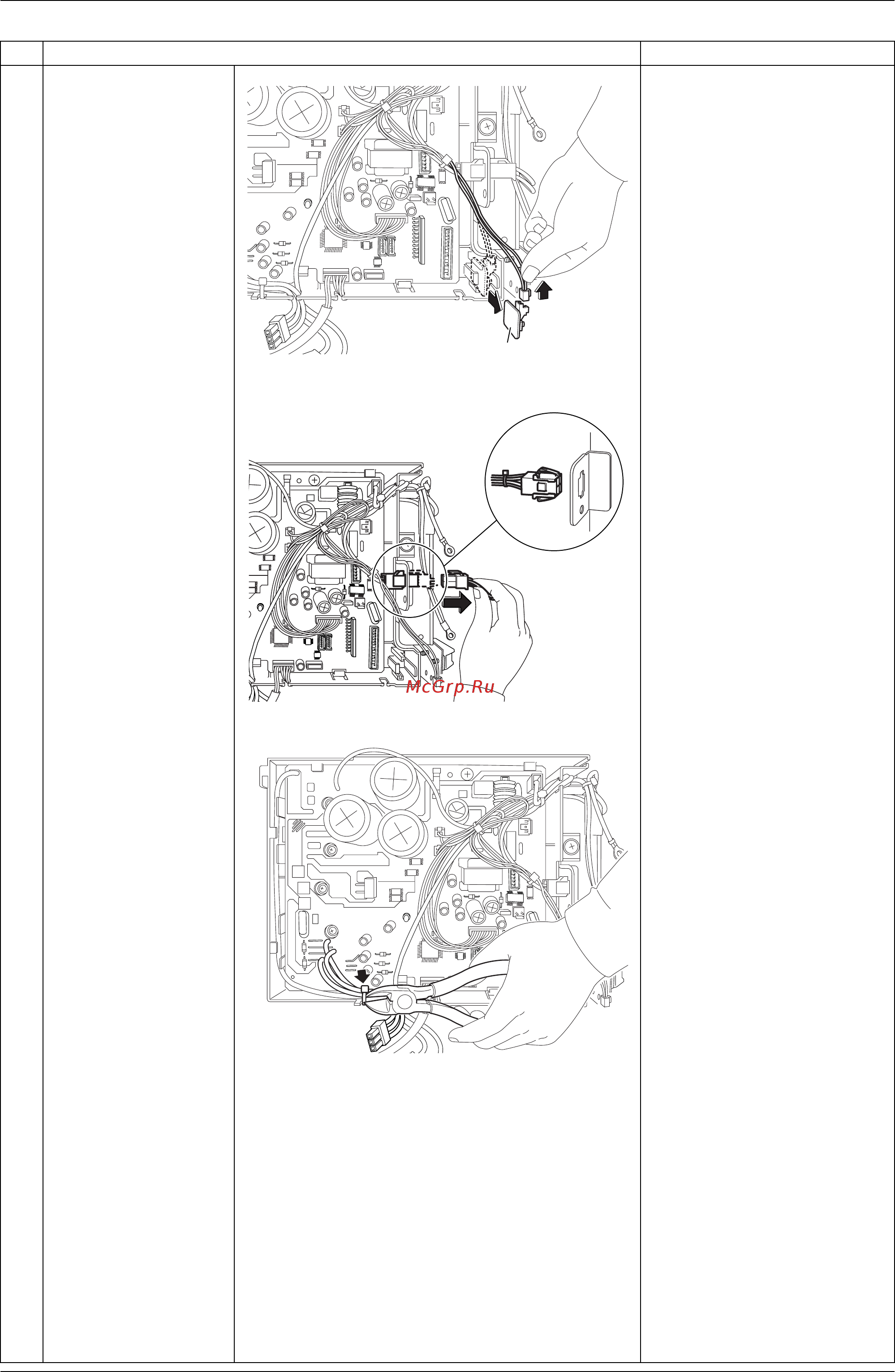

Pull out the forced
operation button PCB.
Disconnect the
connector [S110] to
remove the forced
operation button PCB.
Be careful of a sharp
protrusion at the back of the
forced operation button
PCB.
5
Disconnect the relay
connector.
6
Cut the clamp.
Step
Procedure Points
Forced operation button PCB
(R11856)
(R11857)
(R11858)
