SiBE04-808_B Outdoor Unit - RK(X)S20-35G2V1B9, ARXS20-35G3V1B
Removal Procedure 232
2

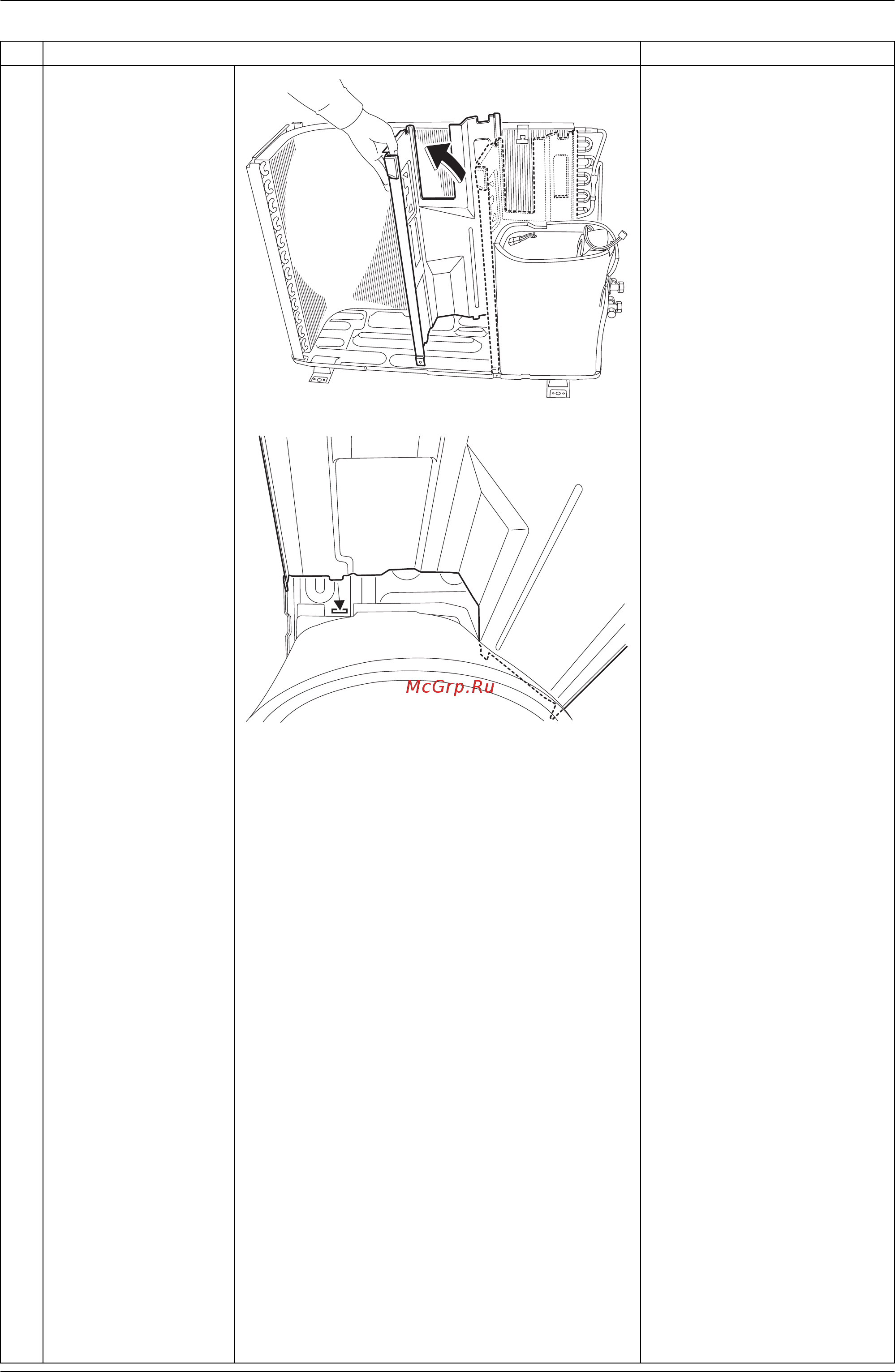

The partition plate has
a hook on the lower
side. Lift and pull the
partition plate to
remove.
When reassembling, fit the
lower hook into the bottom
frame.
Step
Procedure Points
(R12280)
(R11883)
