Outdoor Unit - RK(X)S42G2V1B, ARXS42G2V1B SiBE04-808_B

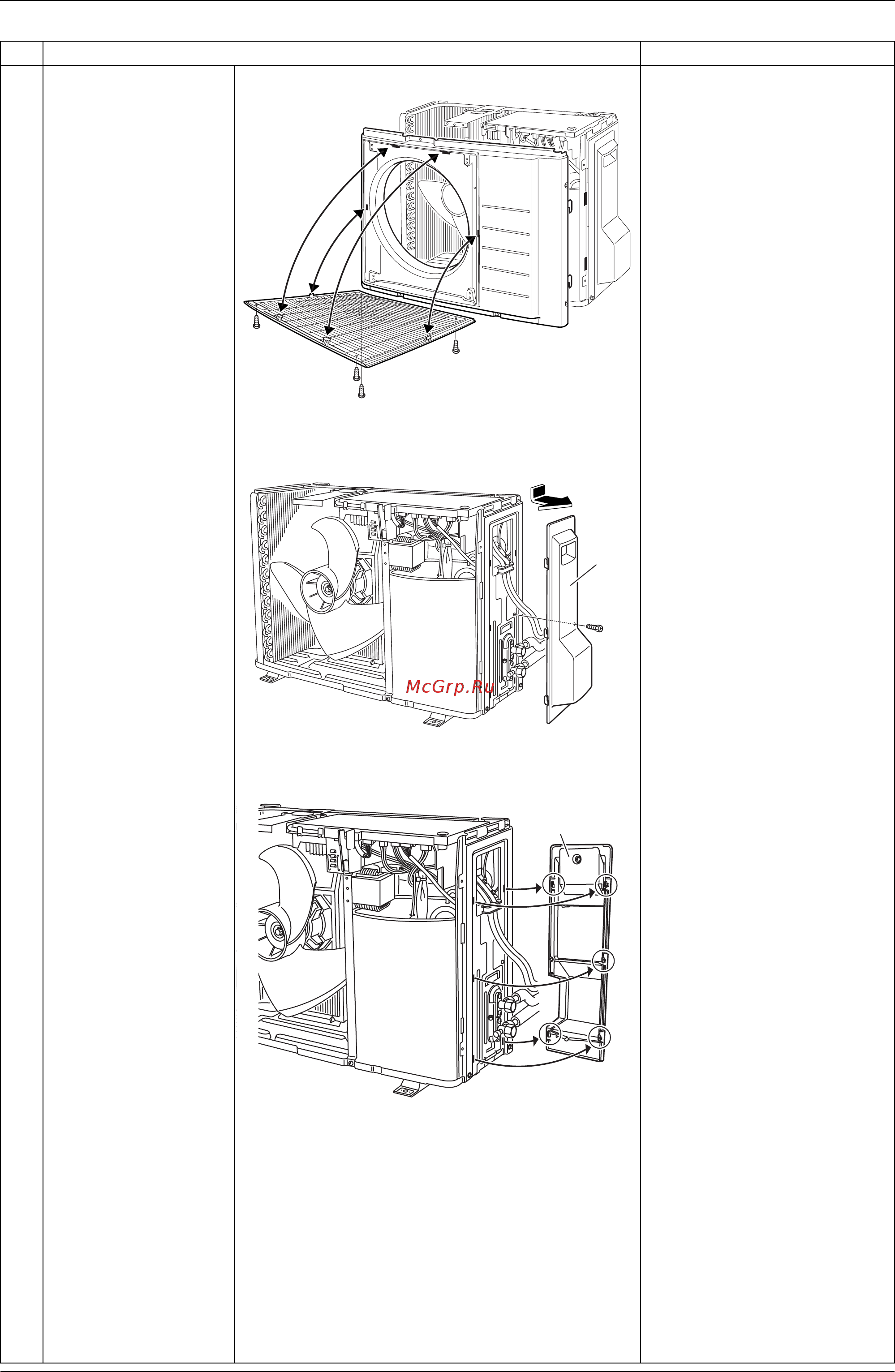

241 Removal Procedure
2
Remove the 4 screws
and remove the
discharge grille.
When reassembling, make
sure to fit the 4 hooks.
3
Remove the screw and
remove the stop valve
cover.
The stop valve cover is
united with the shield plate.
When reassembling, make
sure to fit the 5 hooks.
Step
Procedure Points
(R9364)
(R8139)
Stop
valve
cover
(R12213)
Shield plate
