• Split Sky Air • Indoor Units
5
• Indoor Units • R-410A • FTXS-GV1B

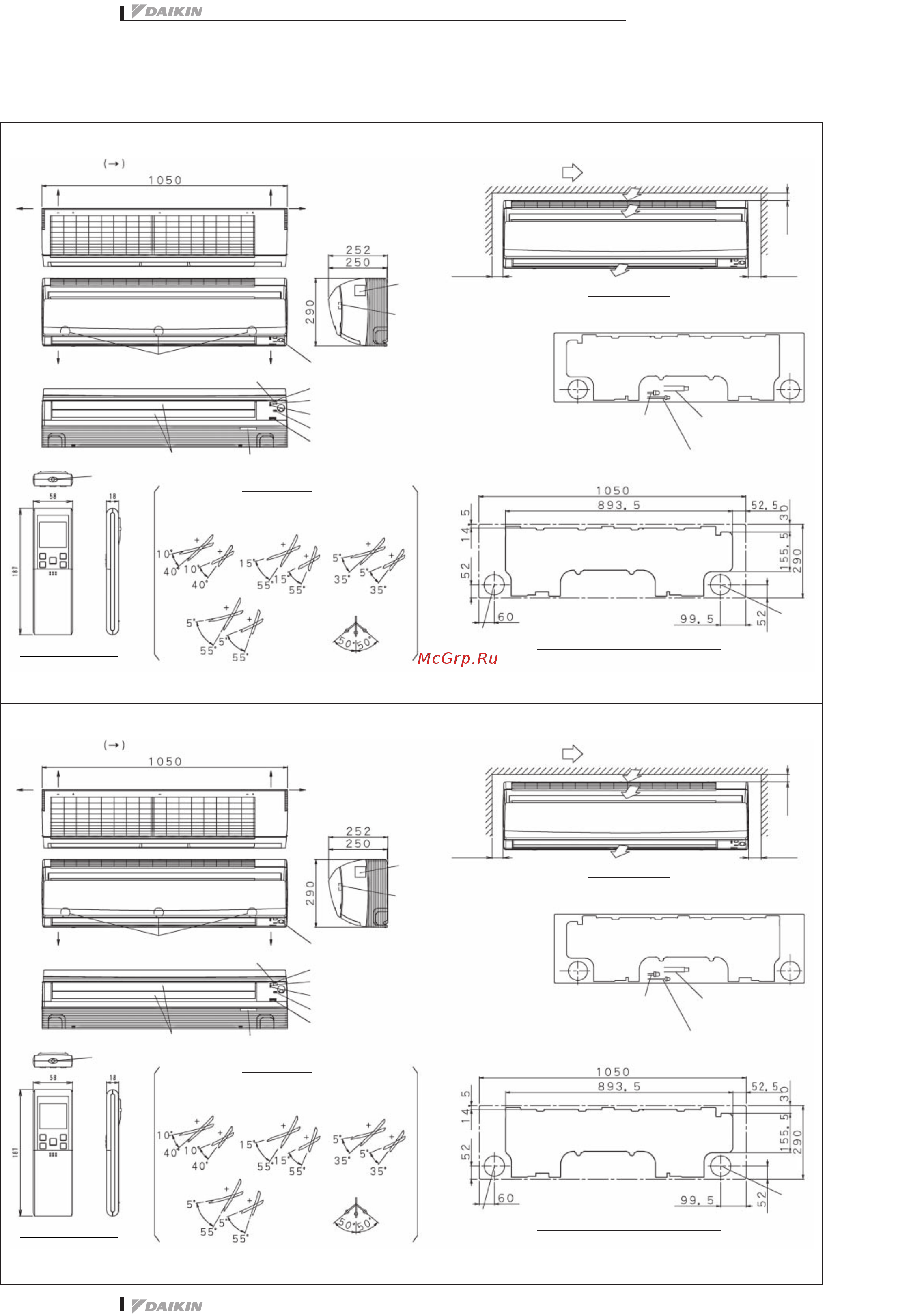

3 Dimensional drawing & centre of gravity
3 - 1 Dimensional drawing
FTXS60GV
3D065514
The mark
Left
Bottom
Rear Rear Right
Model name
plate
(Including
installation plate)
Terminal block
with earth
terminal (inside)
Wall hole for
embedded piping
ø 80 hole
Infrared remote control
(ARC452A3)
Signal
transmitter
Front grille fixing screws
(inside)
Flaps
Operation lamp
Signal receiver
Indoor unit on/off switch
Room temp. thermistor (inside)
Intelligent eye sensor
Intelligent eye lamp
Timer lamp
Model name plate
Horizontal blade
(automatic)
Cooling Heating
Dry
Vertical blade (automatic)
Fan
Wall hole
ø 80 hole
STANDARD LOCATIONS OF WALL HOLES
BLADE ANGLES
Gas pipe ø12.7 CuT
(the length of pipe outside
the unit: about 430)
Liquid pipe ø6.4 CuT
(the length of pipe outside the
unit: about 480)
Drain hose for VP13
(connecting part
I.D. 14.0, O.D. 18.0)
(The hose length
of outside the unit:
about 530)
Min. 50
(Space for
maintenance)
Min. 50
(Space for
maintenance)
Min. 30
(Space for
performance)
REQUIRED SPACE
Air flow (indoor)
(For performance and maintenance)
shows piping direction
FTXS71GV
3D065515
The mark
Left
Bottom
Rear Rear Right
Model name
plate
(Including
installation plate)
Terminal block
with earth
terminal (inside)
Wall hole for
embedded piping
ø 80 hole
Infrared remote control
(ARC452A3)
Signal
transmitter
Front grille fixing screws
(inside)
Flaps
Operation lamp
Signal receiver
Indoor unit on/off switch
Room temp. thermistor (inside)
Intelligent eye sensor
Intelligent eye lamp
Timer lamp
Model name plate
Horizontal blade
(automatic)
Cooling Heating
Dry
Vertical blade (automatic)
Fan
Wall hole
ø 80 hole
STANDARD LOCATIONS OF WALL HOLES
BLADE ANGLES
Gas pipe ø15.9 CuT
(the length of pipe outside
the unit: about 430)
Liquid pipe ø6.4 CuT
(the length of pipe outside
the unit: about 480)
Drain hose for VP13
(connecting part
I.D. 14.0, O.D. 18.0)
(The hose length
of outside the unit:
about 530)
Min. 50
(Space for
maintenance)
Min. 50
(Space for
maintenance)
Min. 30
(Space for
performance)
REQUIRED SPACE
Air flow (indoor)
(For performance and maintenance)
shows piping direction
