EMRQ8~16ABY1
Daikin Altherma outdoor unit
4P501819-1 – 2017.08
Installation manual
6

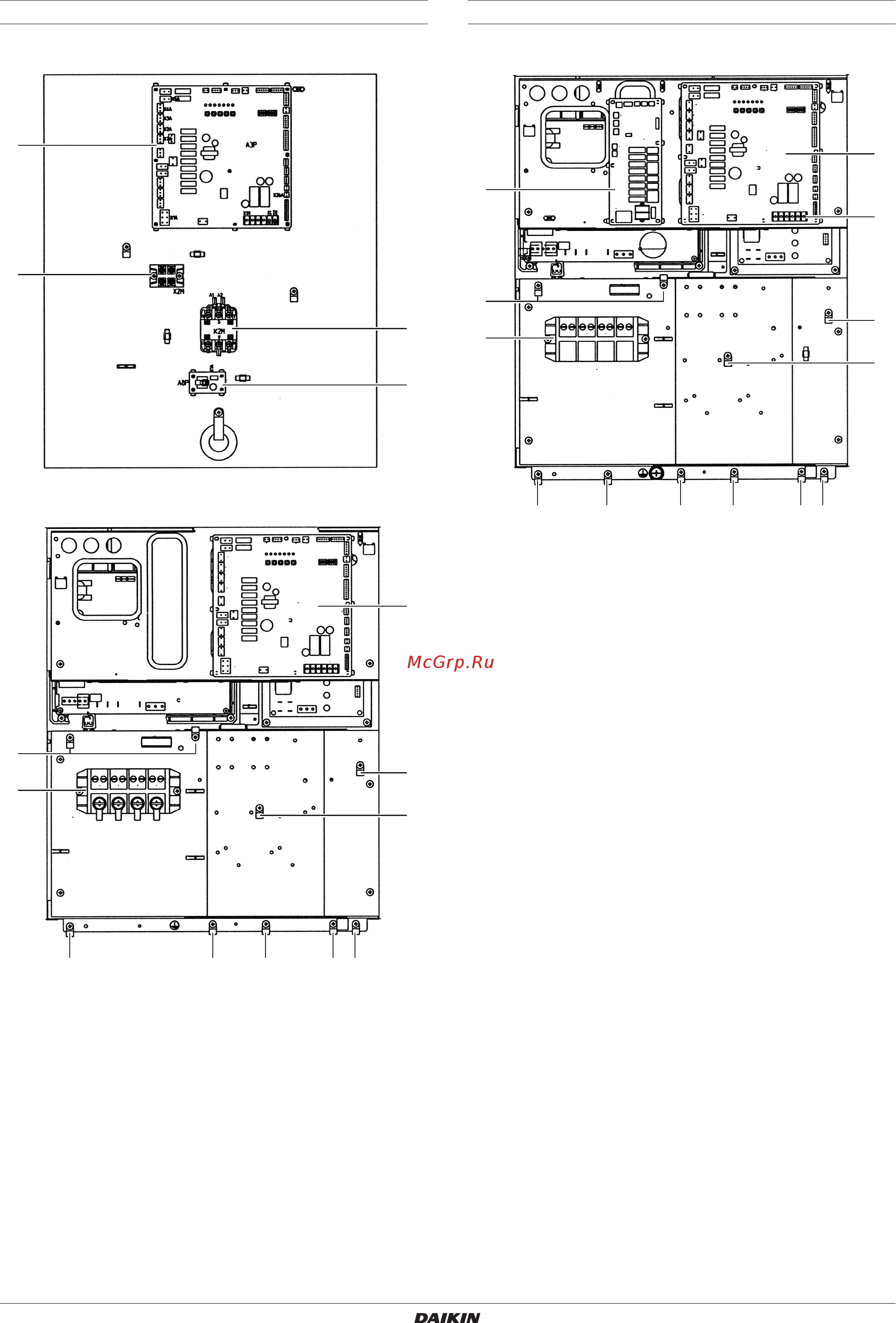

5.3. Main components in the switch box
Electrical component box (left switch box)
For EMRQ8~12 only
For EMRQ14+16 only
Electrical component box (right switch box)
For all models
1 Sub 2 PCB
2 Terminal block X2M
3 Cable tie mountings.
The cable tie mountings allow to fix the field wiring with cable ties
to the switch box to ensure strain relief.
4 Magnetic contactor K2M
5 Current sensor PCB
2
1
4
5
2
3
3
3
3
3333
1
1 Main PCB
2 Sub 1 PCB
3 Terminal block X1M
Main terminal block which allows easy connection of field wiring
for power supply.
4 X1M on main PCB. Terminal block for transmission wiring.
5 Cable tie mountings.
The cable tie mountings allow to fix the field wiring with cable ties
to the switch box to ensure strain relief.
3
2
5
5
4
5
55555 5
1
4PEN501819-1.book Page 6 Wednesday, September 13, 2017 12:52 PM
