• Split Sky Air • Indoor Units
10
• Indoor Units • COOLING ONLY/HEAT PUMP • FCQH-C7VEB

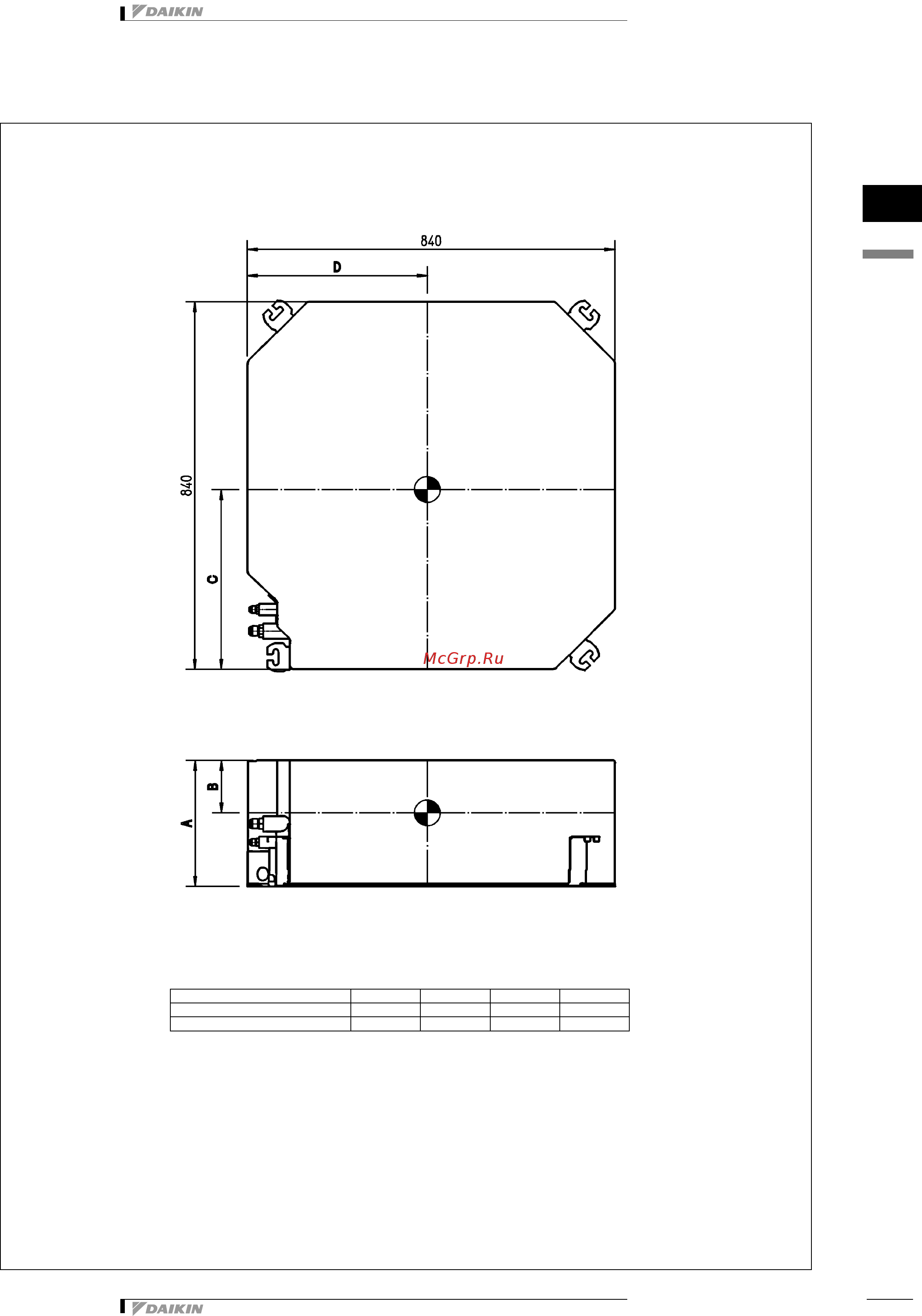

6 Dimensional drawing & centre of gravity
6 - 2 Centre of gravity
FCQH71-140C
4TW28839-2
Models A B C D
FCQH71
246 90 411 411
FCQH100~140 288 120 420 420
