• Indoor Units • COOLING ONLY/HEAT PUMP • FCQH-C7VEB
1
7
• Split Sky Air • Indoor Units
11

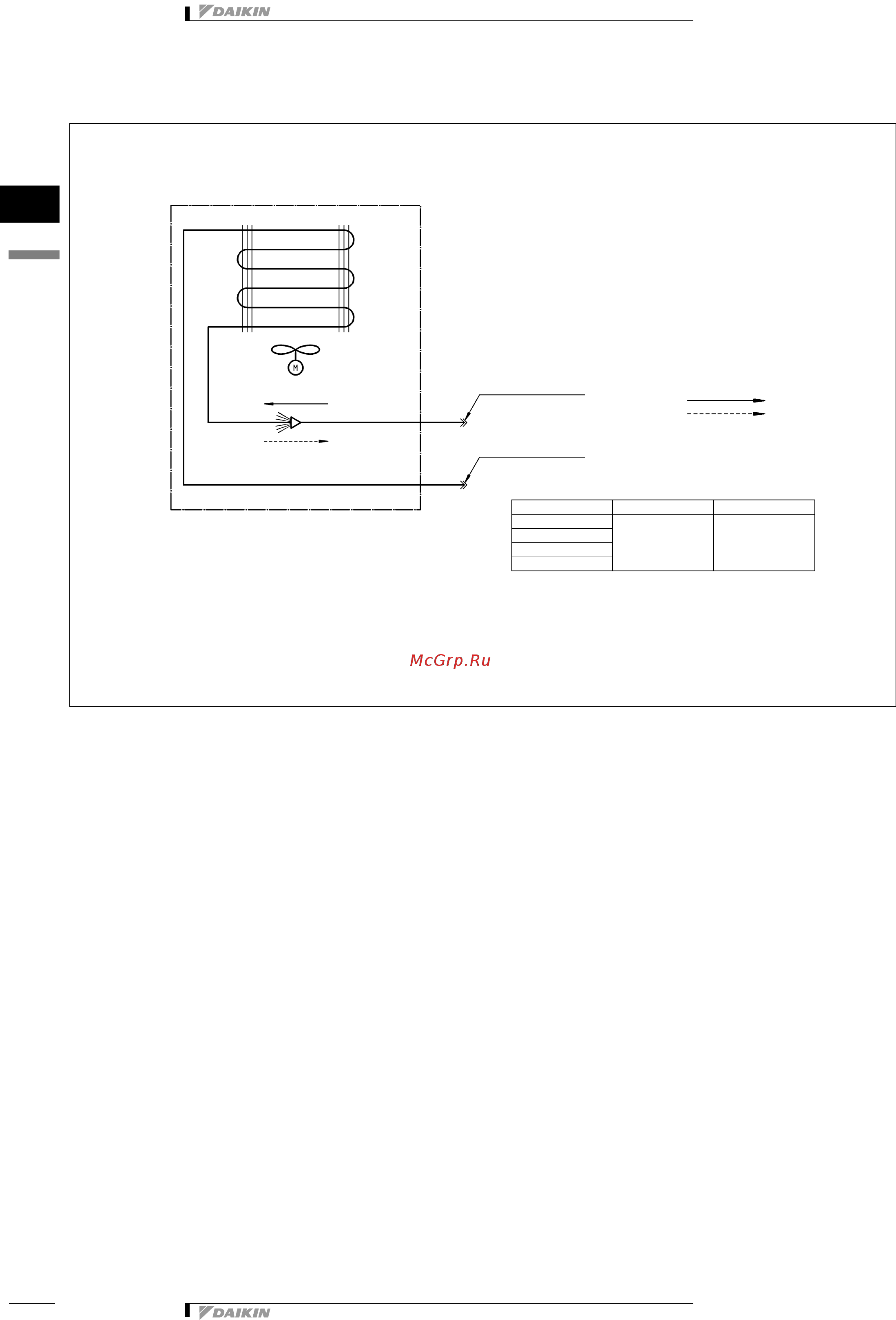

7 Piping diagram
FCQH71-140C
3TW28925-1
Heat exchanger
Fan
Liquid pipe connection port
Gas pipe connection port
Refrigerant flow
Cooling
Heating
Model Gas Liquid
FCQH71C
Ø
15.90
Ø
9.52
FCQH100C
FCQH125C
FCQH140C
Refrigerant pipe connection port diameters
