Korting OGG741RN [21/36] Connecting of feeding cable

Connecting of feeding cable

If apparatus is not ﬁ tted with feeding cable,

use cable Mod. H05RR-F or H05RN-F stating

suitable section of the cable which has to be

connected to terminal. To obtain that you have

to:

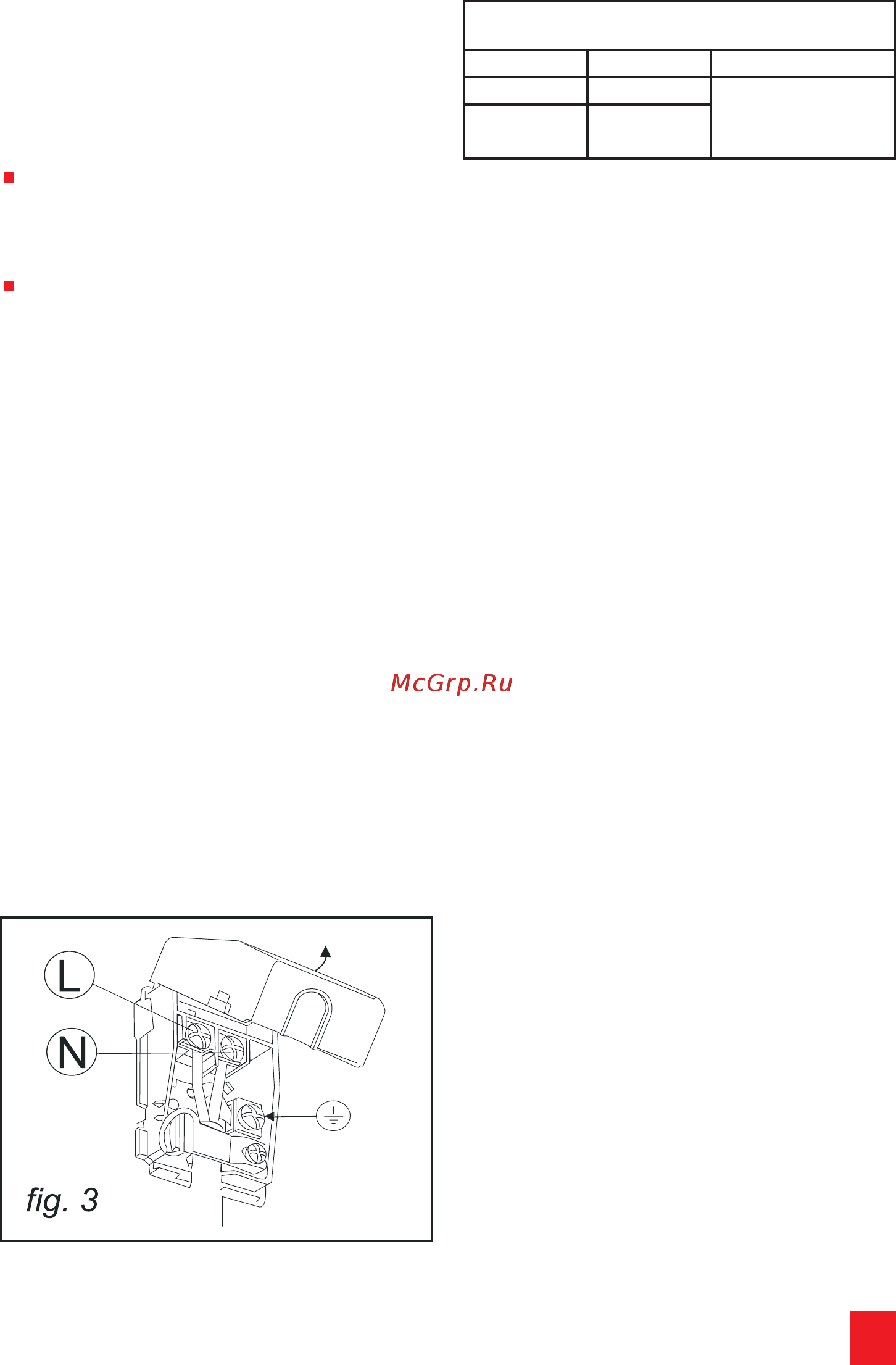

Connect the supply cable to the terminal strip

of the oven (ﬁ g. 3), keeping the earth wire 3

cm. longer

than the active conductors (live/neutral).

Connect cable’s wires as follows:

L = (live) brown or red wire

N = (neutral) blue wire

╧ =(earth) yellow - green wire.

N.B. Feeding’s cable temperature should

never reach 100°C.

Connection to normal socket

Connect feeding cable a normal plug suit-

able to the load stated on data plate. When the

cooker has been built-in household check that

the plug is accesible.

Direct connection

to electric supply

If an appliance is not equipped with supply

cable and plug, the power supply must be ﬁ tted

with a disconnect switch in which the distance

between contacts permits total disconnection

in accordance with overvoltage category III, as

required by installation regulations. The yellow/

green earth wire should not be controlled by

the switch.

Supply 220 / 230 V~

Oven type section Type of cable

Gas oven 3x0,75 mm

Rubber H05 RR-F

or Rubber H05

RN-F

Gas oven +

electric grill

3 x 1,5 mm

ATTENTION: If the supply cable is damaged,

it must be replaced by the manufacturer or by

his after-sales service, or by a similar qualiﬁ ed

person, in order to prevent any risk.
