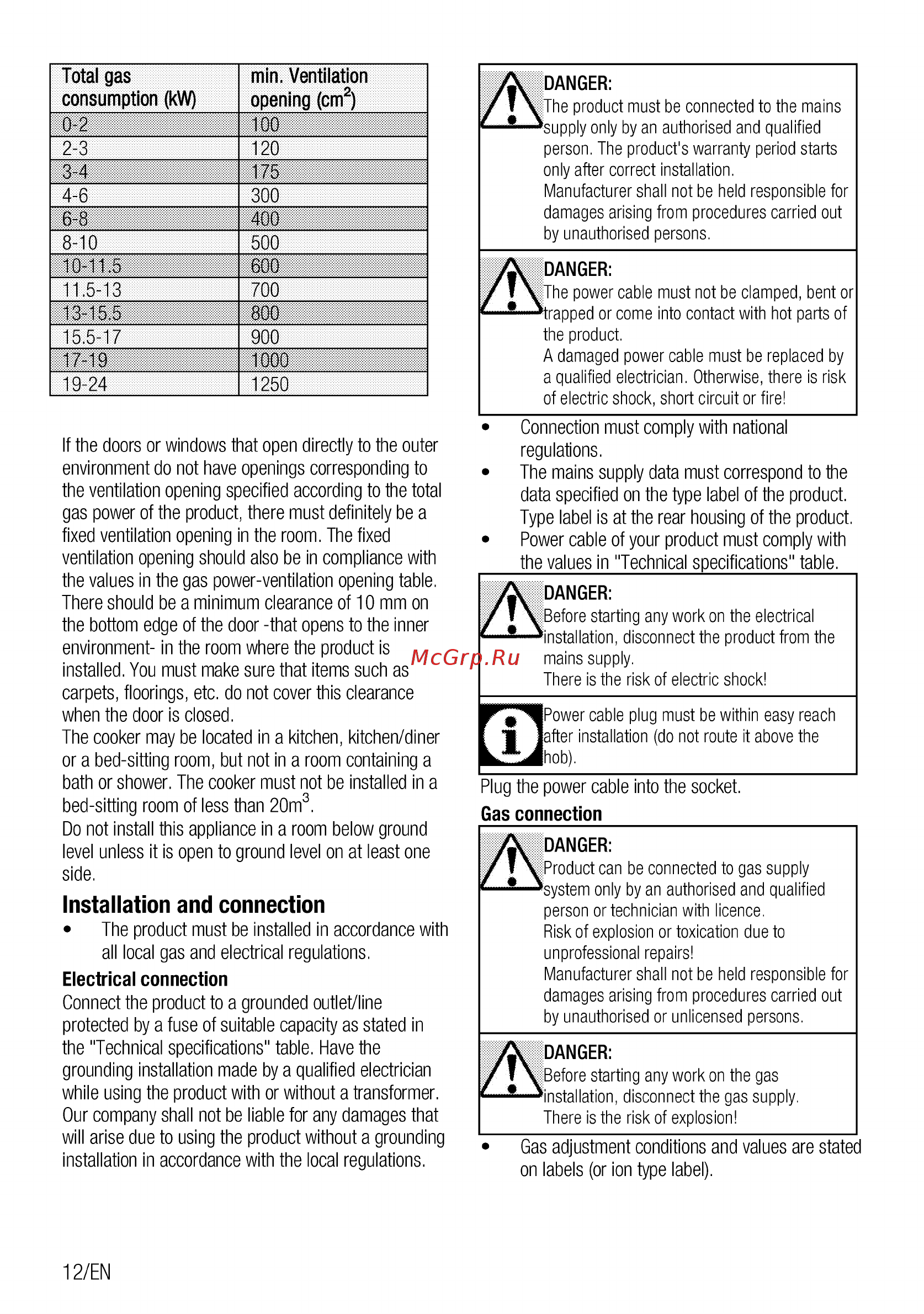

min Ventilation Total gas consumption kW opening cm2 0 2 100 2 3 120 34 175 4 6 6 8 400 300 8 10 500 10 11 5 600 11 5 13 700 13 15 5 15 5 17 800 900 17 19 1000 19 24 1250 If the doors or windows that open directly to the outer environment do not have openings corresponding to the ventilation opening specified according to the total gas power of the product there must definitely be a fixed ventilation opening in the room The fixed ventilation opening should also be in compliance with the values in the gas power ventilation opening table There should be a minimum clearance of 10 mm on the bottom edge of the door that opens to the inner environment in the room where the product is installed You must make sure that items such as carpets floorings etc do not cover this clearance when the door is closed The cooker may be located in a kitchen kitchen diner or a bed sitting room but not in a room containing a bath or shower The cooker must not be installed in a bed sitting room of less than 20m3 Do not install this appliance in a room below ground level unless it is open to ground level on at least one side Installation and connection The product must be installed in accordance with all local gas and electrical regulations Electrical connection Connect the product to a grounded outlet line protected by a fuse of suitable capacity as stated in the Technical specifications table Have the grounding installation made by a qualified electrician while using the product with or without a transformer Our company shall not be liable for any damages that will arise due to using the product without a grounding installation in accordance with the local regulations 12 EN DANGER n The product must be connected to the mains supply only by an authorised and qualified person The product s warranty period starts only after correct installation Manufacturer shall not be held responsible for damages arising from procedures carried out by unauthorised persons A DANGER T The power cable must not be clamped bent or trapped or come into contact with hot parts of the product A damaged power cable must be replaced by a qualified electrician Otherwise there is risk of electric shock short circuit or fire Connection must comply with national regulations The mains supply data must correspond to the data specified on the type label of the product Type label is at the rear housing of the product Power cable of your product must comply with the values in Technical specifications table DANGER Before starting any work on the electrical installation disconnect the product from the mains supply There is the risk of electric shock pF lPower cable plug must be within easy reach I W latter installation do not route it above the Z hob Plug the power cable into the socket Gas connection DANGER Product can be connected to gas supply system only by an authorised and qualified person or technician with licence Risk of explosion or toxication due to unprofessional repairs Manufacturer shall not be held responsible for damages arising from procedures carried out by unauthorised or unlicensed persons DANGER H Before starting any work on the gas installation disconnect the gas supply There is the risk of explosion Gas adjustment conditions and values are stated on labels or ion type label
