Asus PRIME B460M-A [12/32] Cpu socket
![Asus PRIME B460M-A [12/32] Cpu socket](/views2/1769257/page12/bgc.png)

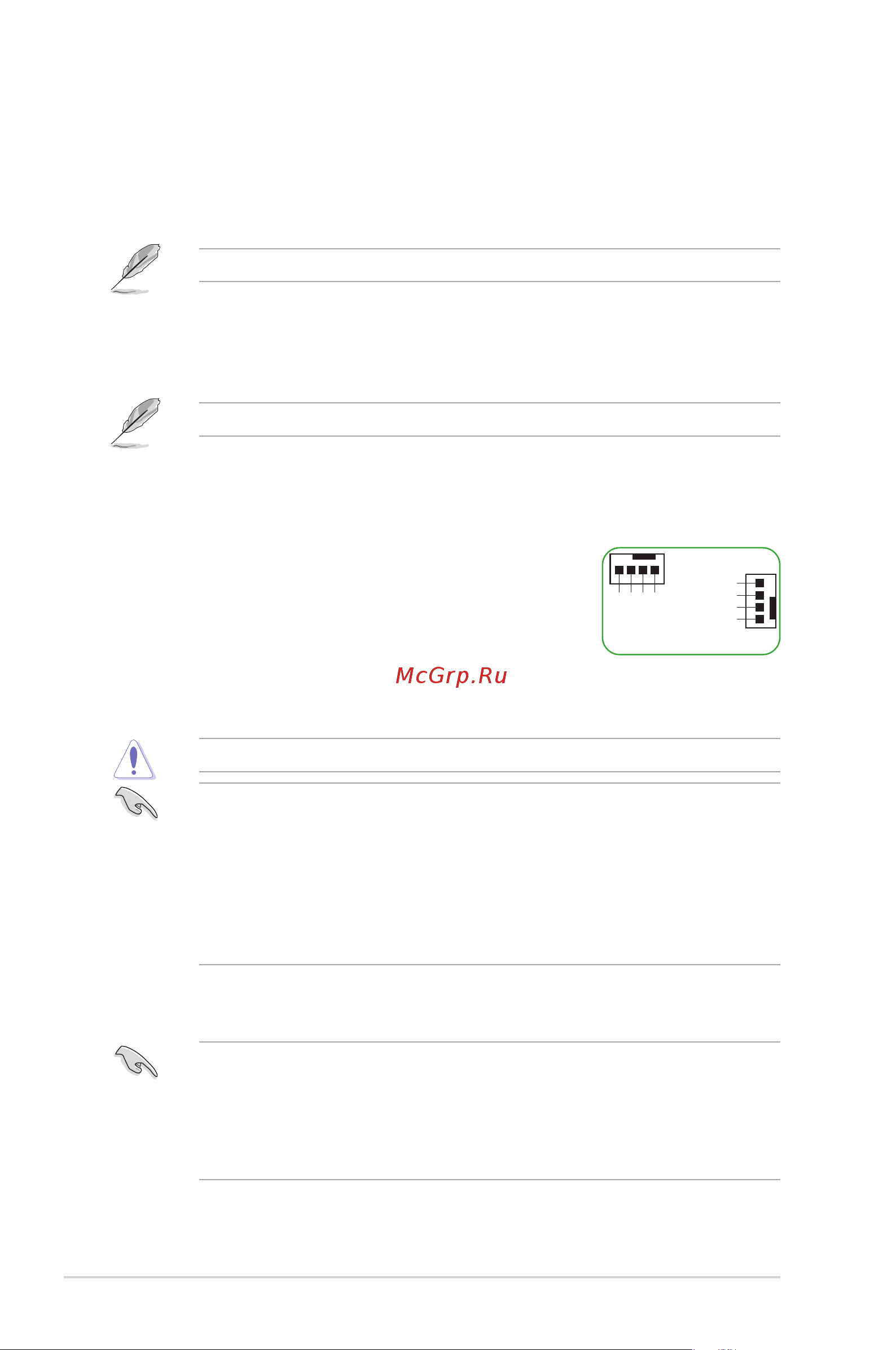

1-2
Chapter 1: Product introduction
1.2.1 Layout contents
1. CPU socket
The motherboard comes with a surface mount Intel
®
Socket LGA1200 designed for 10
th
Gen
Intel
®
Core
TM
, Pentium
®
Gold and Celeron
®
processors.
For more details, refer to Central Processing Unit (CPU).
2. DDR4 DIMM slots
The motherboard comes with Dual Inline Memory Modules (DIMM) slots designed for DDR4
(Double Data Rate 4) memory modules.
For more details, refer to System memory.
3. Expansion slot
This motherboard supports one PCIe x16 graphic card and two PCIe 3.0 x1 network cards,
SCSI cards and other cards that comply with the PCI Express specication.
4. Fan headers
The Fan headers allow you to connect fans to cool the system.
5. Power connectors
These Power connectors allow you to connect your motherboard to a power supply. The
power supply plugs are designed to t in only one orientation. Find the proper orientation and
push down rmly until the power supply plugs are fully inserted.
Ensure to connect the 8-pin power plug.
• For a fully congured system, we recommend that you use a power supply unit
(PSU) that complies with ATX 12V Specication 2.0 (or later version) and provides a
minimum power of 350 W.
• We recommend that you use a PSU with a higher power output when conguring a
system with more power-consuming devices. The system may become unstable or
may not boot up if the power is inadequate.
• If you are uncertain about the minimum power supply requirement for your system, we
recommend you to refer to online resources for Power Supply Wattage Calculator.
6. M.2 Slots (Key M)
The M.2 slots allow you to install M.2 devices such as M.2 SSD modules.
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes).
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4).
• M.2 slots can support Intel
®
Optane™ Memory.
• M.2 slots support data transfer speeds up to 32Gb/s.
• M.2_2 slot supports IRST (Intel
®
Rapid Storage Technology).
FAN PWM
FAN IN
FAN PWR
GND
FAN PWM
FAN IN
FAN PWR
GND
