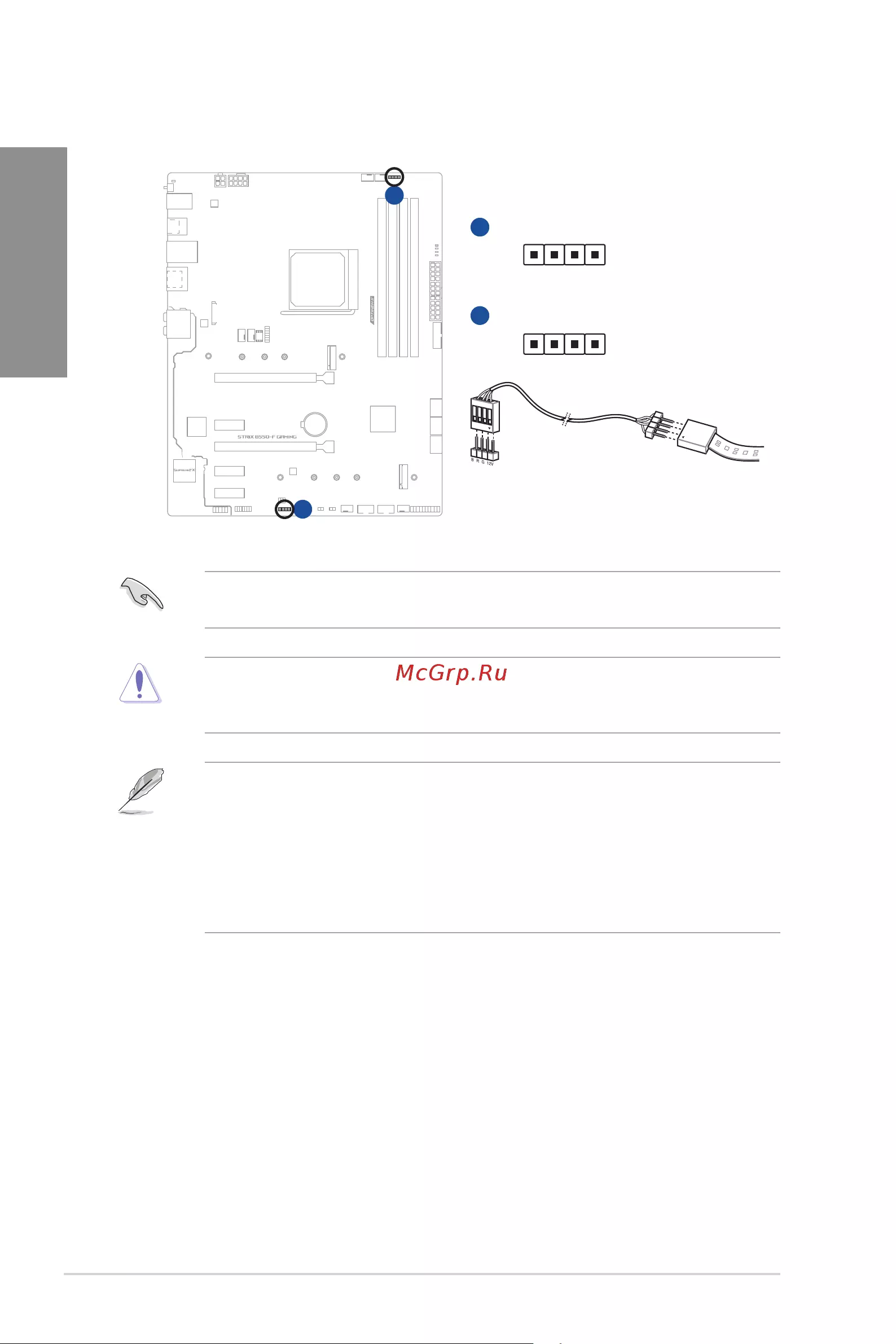

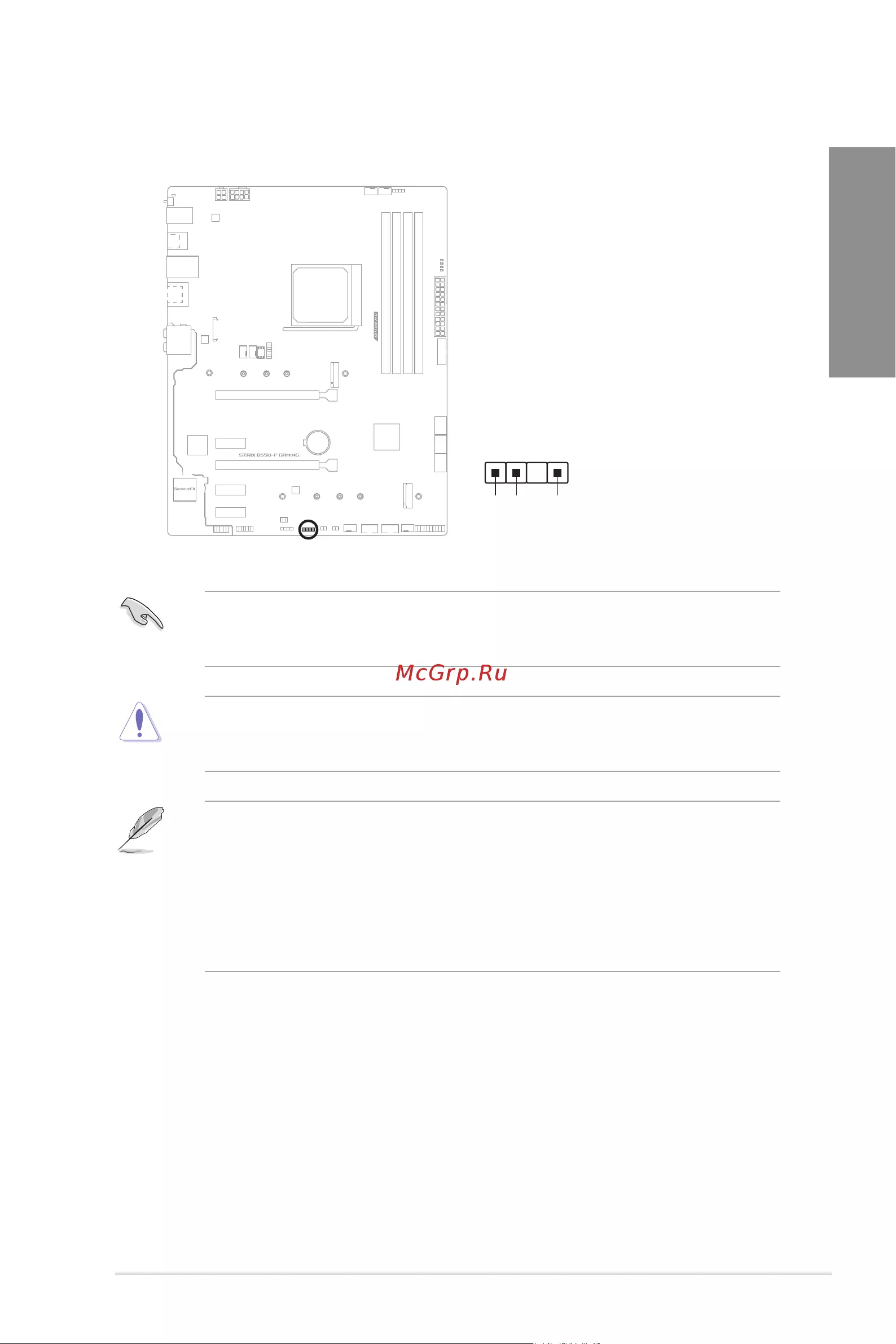

11. AURA RGB headers

The RGB headers allow you to connect RGB LED strips.

RGB_HEADER2

PIN 1

+12V G R B

RGB_HEADER1

PIN 1

+12V G R B

The RGB headers support 5050 RGB multi-color LED strips (12V/G/R/B), with a maximum

power rating of 3A (12V).

Before you install or remove any component, ensure that the power supply is switched off

or the power cord is detached from the power supply. Failure to do so may cause severe

damage to the motherboard, peripherals, or components.

• Actual lighting and color will vary with LED strip.

• If your LED strip does not light up, check if the RGB LED extension cable and the

RGB LED strip is connected in the correct orientation, and the 12V connector is

aligned with the 12V header on the motherboard.

• The LED strip will only light up when the system is powered on.

• The LED strip is purchased separately.
