TINKER BOARD S
Thank you for purchasing ASUS Tinker Board S!
Tinker Board is more than a dream for the DIY-obsessed: it’s a gateway to new ideas and new
relationships. Experienced makers will love Tinker Board’s performance-to-price ratio and strong
brand heritage, while novices and younger users will appreciate its accessibility and ease of use.
But all will come together to create — Together We Make!
Package contents
Check your Tinker Board S package for the following items:
1 x Tinker Board S/2G 1 x Heatsink*
1 x Shielding bag 1 x Quick start guide
* Beware of high temperatures when only using the bundled heat sink.
Safety Information
• Power supply used with the Tinker shall comply with relevant regulations and applicable
standards.
• DO NOT overclock the board, as this may cause damage to the board.
• Ensure that the board is placed in a well ventilated environment.
• The board should be placed on a flat, stable, non-conductive surface.
• Avoid handling the board while powered. Handle the board by the edges to minimize risk
of Electronic Static Damage (ESD).
• Do not use both the system Micro USB power-in jack and the 40-pin GPIO +5V pins (pin
2 and 4, red) for power input at the same time. Please refer to the Top view illustration for
the location of the pins.
• If you wish to use the 40-pin GPIO +5V (pin 2 and 4, red) as a power input source, please
make sure the power input rating for each pin complies with the standard of +5V / 3A
(+/-5% deviation). A power rating value that exceeds the rating valued mentioned, or an
unstable power source may result in damage to your system or hardware. Please refer to
the Top view illustration for the location of the pins.
Processor
Rockchip RK3288 Arm
®
Cortex
®
-A17 Quad-core SoC*
* The CPU will operate at full capacity, take note of heat
dissipation and AC adaptor stability.
GPU
ARM
®
Mali™-T760 MP4 GPU
Display
1 x HDMI™* supports up to 4K
1 x 15-pin MIPI DSI supports up to HD
* HDMI™ supports a maximum resolution of up to 4K, and the
iGPU only supports H.264/H.265 4K hardware decoders.
Memory Size
Dual-CH LPDDR3 2GB
Storage
Micro SD(TF) card slot
16GB eMMC
Connectivity
RTL8211E-VB-CG GB LAN
AW-NB177NF 802.11 b/g/n wireless & BT 4.0 + EDR
Audio
RTL ALC4040 Codec with 1 x 3.5mm audio jack
* Hardware ready for audio jack plug detection.
USB
4 x USB 2.0 ports
Camera Interface
1 x 15-pin MIPI CSI slot for camera
Internal Headers
1 x 40-pin header includes:
- up to 28 x GPIO pins
- up to 2 x SPI bus
- up to 2 x I2C bus
- up to 4 x UART
- up to 2 x PWM
- up to 1 x PCM/I2S
- 2 x 5V power pins
- 2 x 3.3V power pins
- 8 x ground pins
1 x 4-pin header includes:
- 1 x 2-pin Power On
- 1 x 2-pin eMMC Recovery
1 x 2-pin contact point includes:
- 1 x PWM signal
- 1 x S/PDIF signal
Power Connector
Micro USB
* Supports low power voltage detection.
** We recommend using the Tinker Power Supply or a qualified
5V/3A power supply.
OS Support
Debian / Android
Dimension
3.37” x 2.125” (85 x 56 mm)
ASUS Tinker Board S specifications summary Getting Started
Booting from onboard eMMC
Requirement:
• 1 x Micro USB cable with data transfer function
• 1 x Tinker Power Supply* or other qualified 5V/3A power supply**
• 1 x Monitor with HDMI cable
• 1 x Keyboard and Mouse set
* The Tinker Power Supply is purchased seperately.
** Ensure that the cable is able to deliver up to 3A of power current.
Connect the Tinker Board S to a PC using a Micro USB cable, then wait for the PC to
recognize the device.
Download the TinkerOS image from the Tinker Board website and burn it into the
Tinker Board S using a third-party ISO software, such as Win32DiskImager or Etcher.
Connect the power supply, keyboard, mouse, and monitor to your Tinker Board S to
boot up.

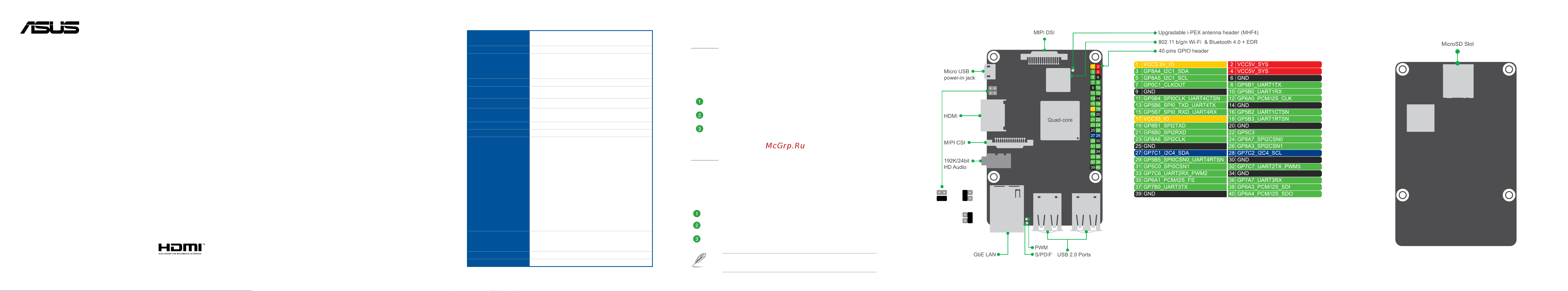

Top view
16GB
Bottom view
default
disable
Power on
eMMC Recovery
15060-88910200
Booting from external Micro SD card
Requirement:
• 1 x Micro SD card with at least 8GB capacity
• 1 x Tinker Power Supply* or other qualified 5V/3A power supply**
• 1 x Monitor with HDMI cable
• 1 x Keyboard and Mouse set
* The Tinker Power Supply is purchased seperately.
** Ensure that the cable is able to deliver up to 3A of power current.
Insert the micro SD card into a Windows® PC
Download the TinkerOS image from the Tinker Board website and burn it into the
micro SD card using a third-party ISO software, such as Win32DiskImager or Etcher.
Insert the bootable micro SD card into your Tinker Board, then connect the power
supply, keyboard, mouse, and monitor to boot up.
If the eMMC cannot be recognized,please refer to www.asus.com for more
details on eMMC Recovery.
