SiEBE04-507 Indoor Unit

Removal Procedure 153

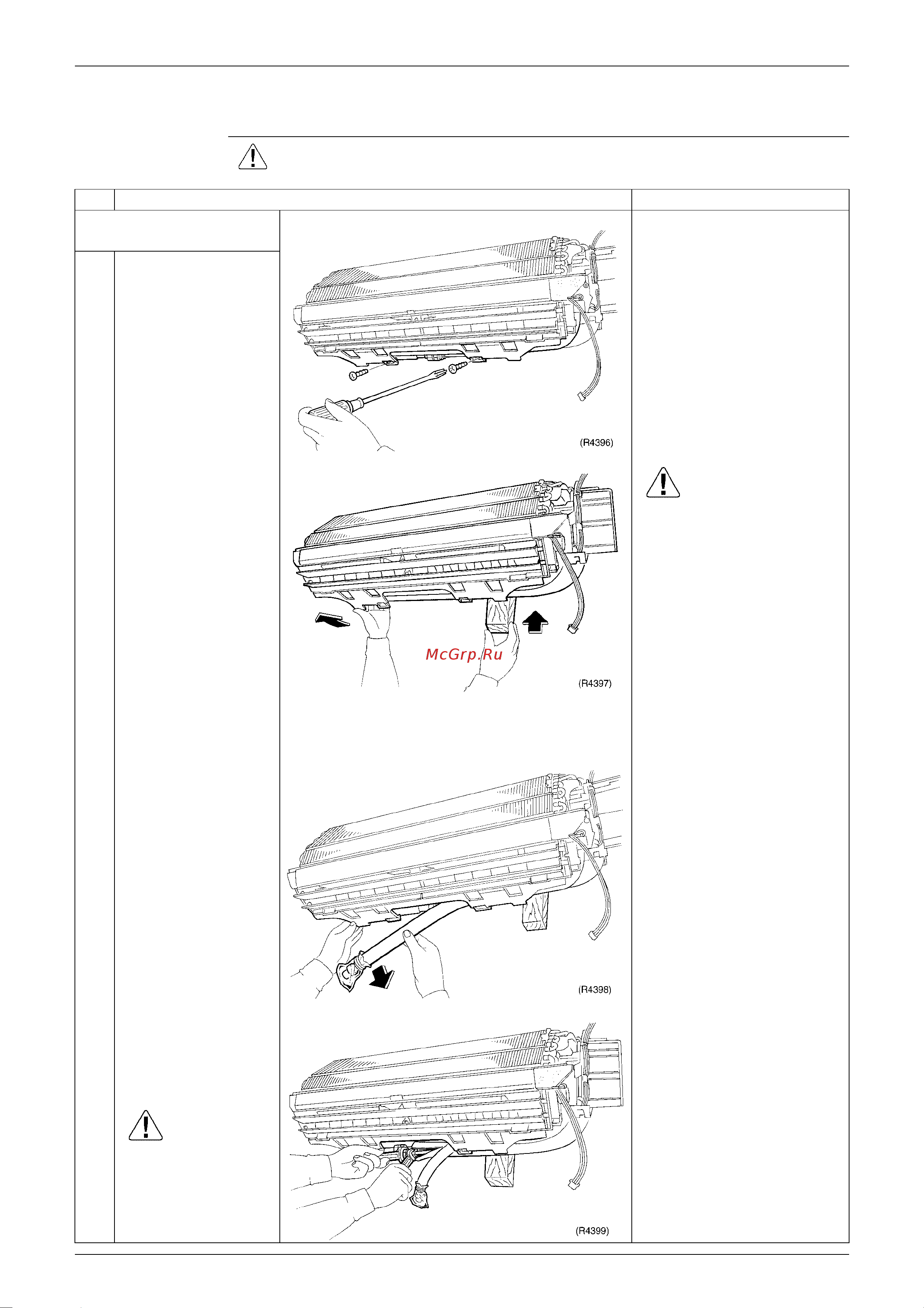

1.9 Removal of Heat Exchanger

Procedure Warning Be sure to turn off all power supplies at least 10 min. before

disassembling work.

Step Procedure Points

1. Disconnecting the

refrigerant pipe

Preparation

 Remove the drain pan unit

according to the “Removal

of Drain Pan Unit.”

1

Remove the screws

which fix the heat

exchanger to the

installation plate.

2

Lift the indoor unit by a

wooden base. Caution!

In pump-down work, be sure

to stop the compressor

before disconnecting the

refrigerant pipe. If the

refrigerant pipe is

disconnected with the

compressor being operated

and the stop valve being

open, air may be sucked in to

generate an over-pressure in

refrigeration cycle, thus

resulting in pipe rupture or

accidental injury.

3

Lift up the indoor unit

body slightly and pull

out the drain hose. (In

the case of left piping)

 Place a plastic bag under

the drain pan to prevent

from wetting the floor with

remaining drain.

 If the drain hose is

embedded in the wall,

disconnect the drain hose

beforehand.

4

Disconnect the pipe

connection with 2 pair

of spanners.

Caution!

From the point of view

of environmental

protection, be sure to

use a vacuum pump

for air purging.

 Carry out the removal works

with 2 pair of spanners.

 When the pipes are

disconnected, protect the

both openings of pipe side

and unit side from entering

of moisture.
