SiEBE04-507 Printed Circuit Board Connector Wiring Diagram
Printed Circuit Board Connector Wiring Diagram 17

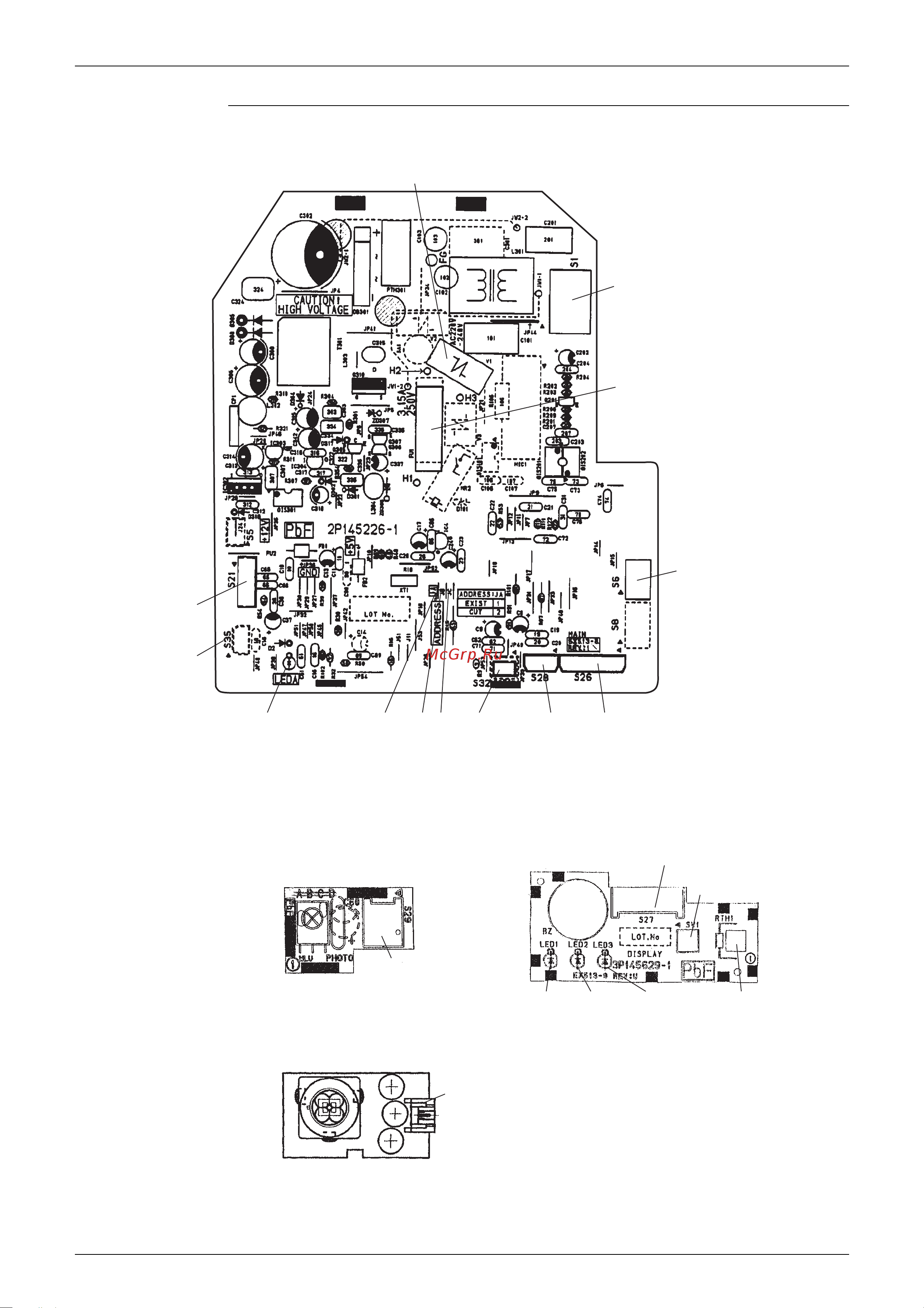

PCB Detail PCB(1): Control PCB
PCB(4): INTELLIGENT EYE sensor PCB
V1
S1
FU1
S6
S26S28S32JCJBJALED A
S35
S21
(R4288)
PCB(2): Signal Receiver PCB PCB(3): Display PCB
S29
(R4289)
RTH1
SW1
S27
LED3LED2LED1
(R4290)
S36
(R4291)
