Daikin FTXV25AV1B [11/40] Installation of indoor unit

Installation of indoor unit

Step four: outlet pipe

Step five: connect the pipe of indoor unit

1. Aim the pipe joint at the corresponding

bellmouth.

2. Pretightening the union nut with hand.

3. Adjust the torque force by referring to the following sheet. Place the open-end

wrench on the pipe joint and place the torque wrench on the union nut. Tighten

the union nut with torque wrench.

Piping hole Model

Ø55 Cooling capacity < 6000W

Ø70 Cooling capacity ≥ 6000W

5-10

ø55/

ø70

Note:

● Pay attention to dust prevention and

take relevant safety measures when

opening the hole.

● The plastic expansion particles are

not provided and should be bought

locally.

rear left

rear right

right

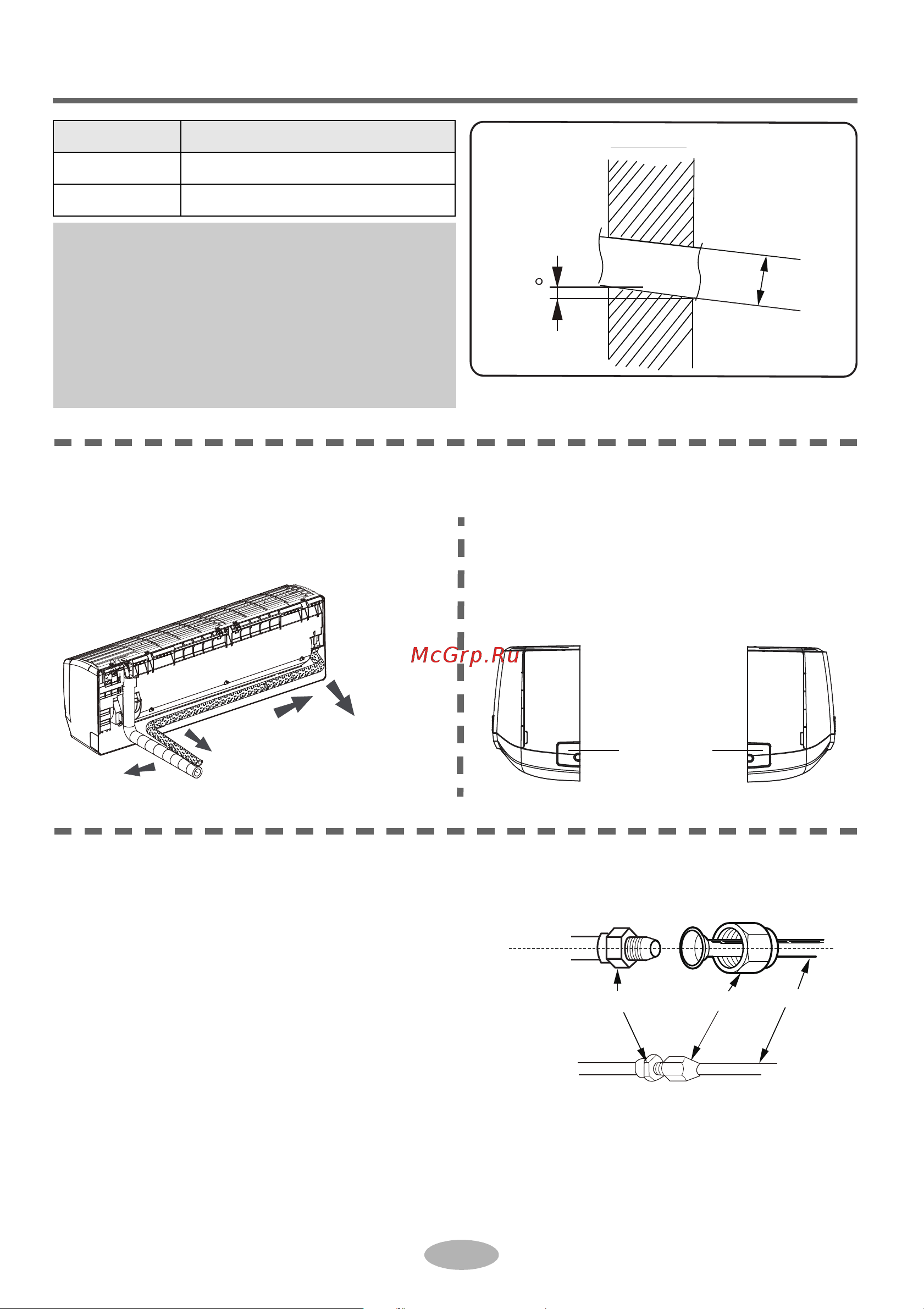

1. The pipe can be led out in the

direction of right, rear right, left

or rear left.

2. When selecting leading out the

pipe from left or right, please cut off

the corresponding hole on the

bottom case.

cut off

the hole

left right

pipe

union nutpipe joint
