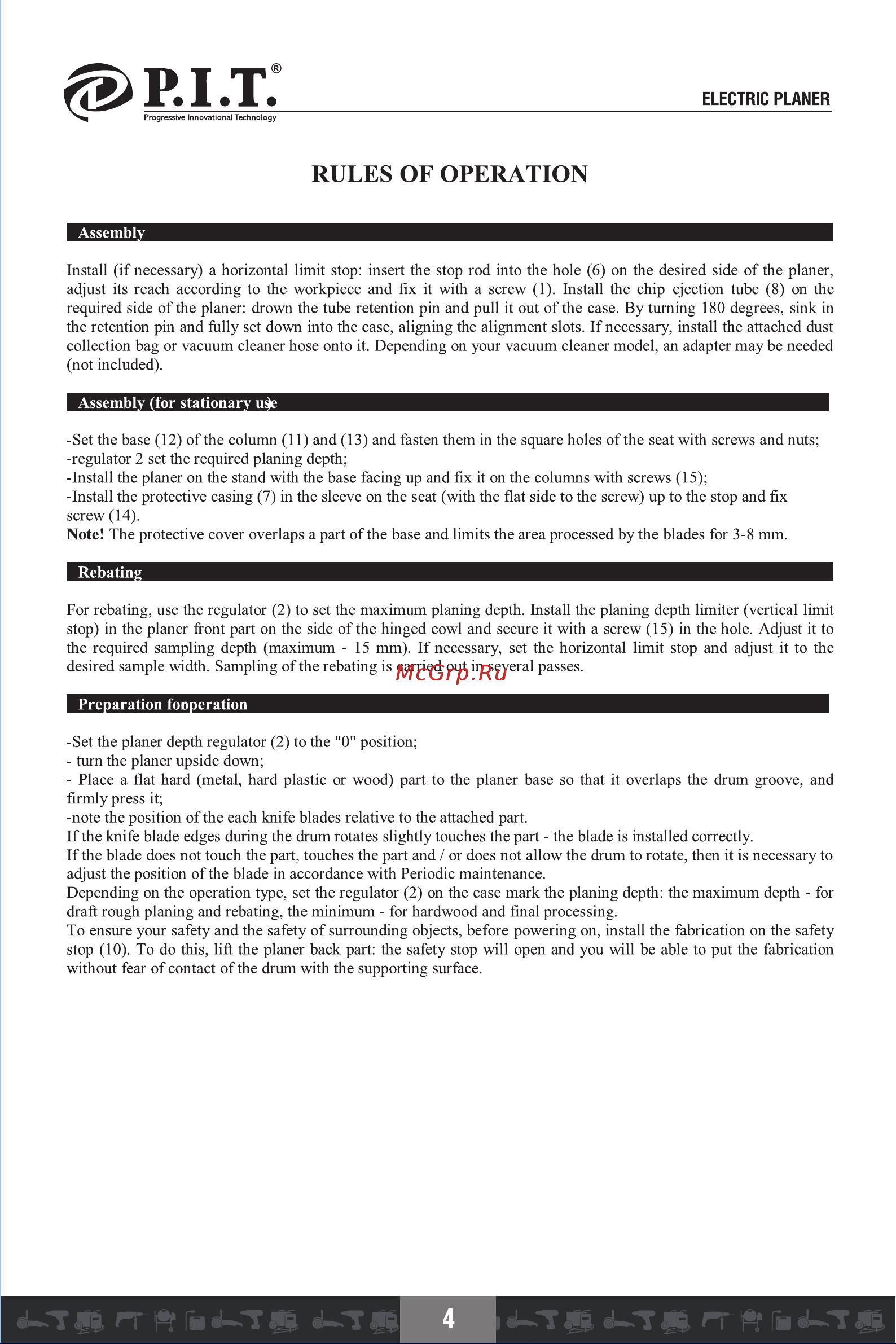

ELECTRIC PLANER RULES OF OPERATION Assembly Install if necessary a horizontal limit stop insert the stop rod into the hole 6 on the desired side of the planer adjust its reach according to the workpiece and fix it with a screw 1 Install the chip ejection tube 8 on the required side of the planer drown the tube retention pin and pull it out of the case By turning 180 degrees sink in the retention pin and fully set down into the case aligning the alignment slots If necessary install the attached dust collection bag or vacuum cleaner hose onto it Depending on your vacuum cleaner model an adapter may be needed not included Assembly for stationary ufe Set the base 12 of the column 11 and 13 and fasten them in the square holes of the seat with screws and nuts regulator 2 set the required planing depth Install the planer on the stand with the base facing up and fix it on the columns with screws 15 Install the protective casing 7 in the sleeve on the seat with the flat side to the screw up to the stop and fix screw 14 Note The protective cover overlaps a part of the base and limits the area processed by the blades for 3 8 mm Rebâti ni For rebating use the regulator 2 to set the maximum planing depth Install the planing depth limiter vertical limit stop in the planer front part on the side of the hinged cowl and secure it with a screw 15 in the hole Adjust it to the required sampling depth maximum 15 mm If necessary set the horizontal limit stop and adjust it to the desired sample width Sampling of the rebating is carried out in several passes Preparation fooperation Set the planer depth regulator 2 to the 0 position tum the planer upside down Place a flat hard metal hard plastic or wood part to the planer base so that it overlaps the drum groove and firmly press it note the position of the each knife blades relative to the attached part If the knife blade edges during the drum rotates slightly touches the part the blade is installed correctly If the blade does not touch the part touches the part and or does not allow the drum to rotate then it is necessary to adjust the position of the blade in accordance with Periodic maintenance Depending on the operation type set the regulator 2 on the case mark the planing depth the maximum depth for draft rough planing and rebating the minimum for hardwood and final processing To ensure your safety and the safety of surrounding objects before powering on install the fabrication on the safety stop 10 To do this lift the planer back part the safety stop will open and you will be able to put the fabrication without fear of contact of the drum with the supporting surface 4
