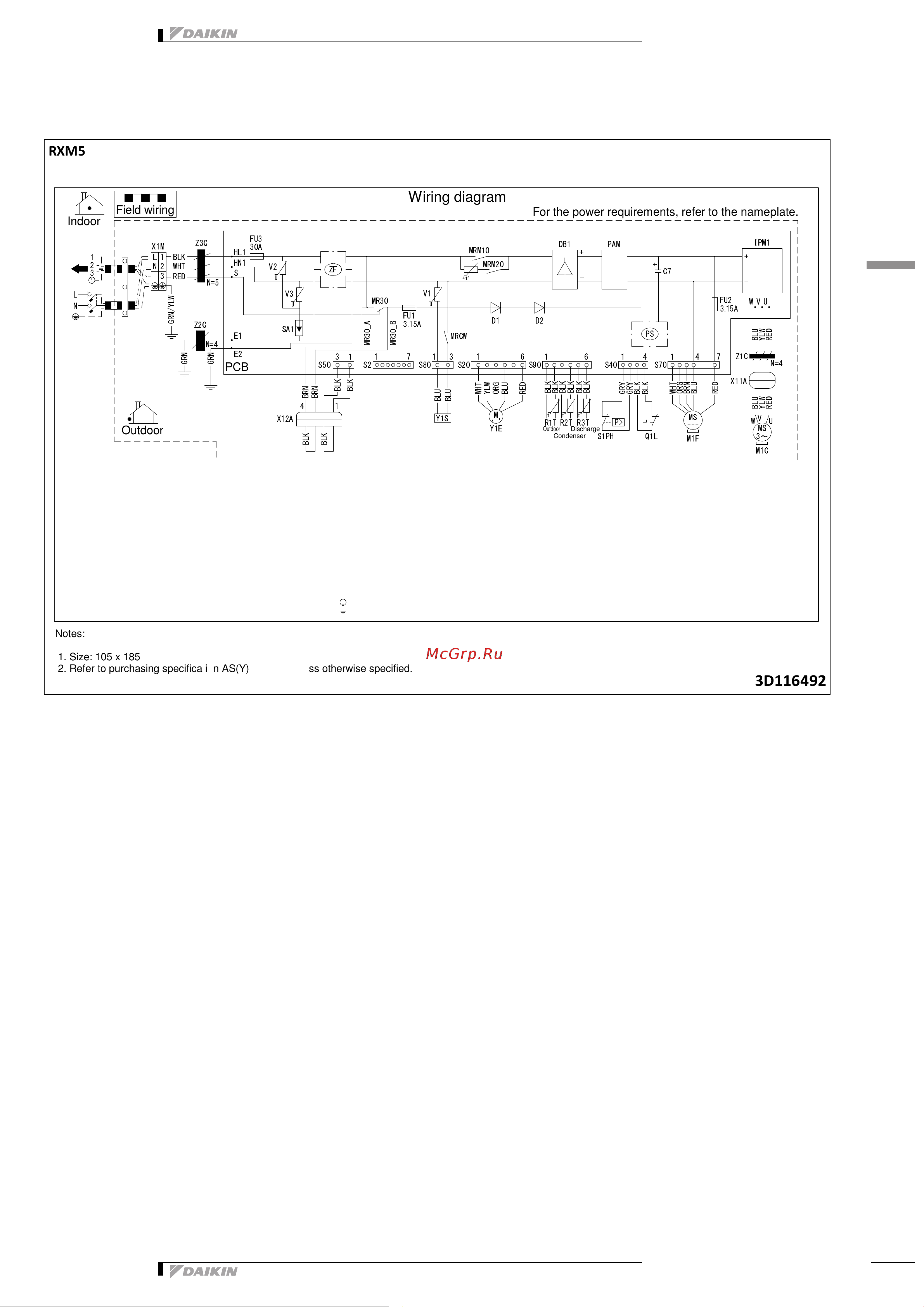

I 7DAIKIN Outdoor Unit RXM N9 8 Wiring diagrams 8 1 Wiring Diagrams Single Phase RXM50 60N9 Wiring diagram Field wiring For the power requirements refer to the nameplate Indoor 8 DB1 E1 E2 HL1 HN1 S U V W FU1 FU2 FU3 IPM1 L M1C M1F MR30 MRCW MRM10 MRM20 N N 4 N 5 PAM PCB PS Diode bridge Connection Fuse Intelligent power module Live Compressor motor Fan motor Magnetic relay Neutral Number of passes Pulse amplitude modulation Printed circuit board Switching power supply Overload protector 01L Thermistor R1T R2T R3T High pressure switch Si PH S2 S20 S40 S 50 S70 S80 S9O Terminal connector Surge arrestor SA1 Varistor V1 V2 V3 Connector X11A X12A Terminal strip X1M Electronic expansion valve coil Y1E Reversing solenoid valve coil Y1S Ferrite core Z1C Z2C Z3C Noise filter ZF Earth Protective earth BLK Black BLU Blue BRN Brown GRN Green GRY Grey ORG Orange RED Red WHT White YLW Yellow Notes 1 Size 105x185 2 Refer to purchasing specification AS Y 303002 unless otherwise specified 3D116492 I DAIKIN Split Sky Air RXM N9 47
