Daikin RXM35N2V1B9 [50/55] Sound data

Содержание

• Air conditioning 1
• Technical data 1
• Capacity tables 3
• Centre of gravity 3
• Dimensional drawings 3
• Electrical data 3
• Features 3
• Operation range 3
• Piping diagrams 3
• Sound data 3
• Specifications 3
• Table of contents 3
• Wiring diagrams 3
• Features 4
• Outdoor unit rxm n9 4
• Split sky air rxm n9 4
• 1 capacity and power input 5
• Outdoor unit rxm n9 5
• Specifications 5
• Split sky air rxm n9 3 5
• 1 capacity and power input 6
• Outdoor unit rxm n9 6
• Specifications 6
• Split sky air rxm n9 6
• 1 capacity and power input 7
• 2 capacity and power input 7
• Outdoor unit rxm n9 7
• Specifications 7
• Split sky air rxm n9 5 7
• 2 capacity and power input 8
• Daikin 8
• Outdoor unit rxm n9 8
• Specifications 8
• Split sky air rxm n9 8
• 2 capacity and power input 9
• Outdoor unit rxm n9 9
• Specifications 9
• Split sky air rxm n9 7 9
• 2 capacity and power input 10
• 3 capacity and power input 10
• Daikin 10
• Outdoor unit rxm n9 10
• Specifications 10
• Split sky air rxm n9 10
• 3 capacity and power input 11
• Outdoor unit rxm n9 11
• Specifications 11
• Split sky air rxm n9 9 11
• 3 capacity and power input 12
• Outdoor unit rxm n9 12
• Specifications 12
• Split sky air rxm n9 12
• 3 capacity and power input 13
• 4 capacity and power input 13
• Outdoor unit rxm n9 13
• Specifications 13
• Split sky air rxm n9 11 13
• 4 capacity and power input 14
• Daikin 14
• Outdoor unit rxm n9 14
• Specifications 14
• Split sky air rxm n9 14
• 4 capacity and power input 15
• Outdoor unit rxm n9 15
• Specifications 15
• Split sky air rxm n9 13 15
• 5 capacity and power input 16
• Daikin 16
• Outdoor unit rxm n9 16
• Specifications 16
• Split sky air rxm n9 16
• 5 capacity and power input 17
• Outdoor unit rxm n9 17
• Specifications 17
• Split sky air rxm n9 15 17
• 5 capacity and power input 18
• 6 capacity and power input 18
• Daikin 18
• Outdoor unit rxm n9 18
• Specifications 18
• Split sky air rxm n9 18
• 6 capacity and power input 19
• Outdoor unit rxm n9 19
• Specifications 19
• Split sky air rxm n9 17 19
• 6 capacity and power input 20
• Daikin 20
• Outdoor unit rxm n9 20
• Specifications 20
• Split sky air rxm n9 20
• 7 capacity and power input 21
• Outdoor unit rxm n9 21
• Specifications 21
• Split sky air rxm n9 19 21
• 7 capacity and power input 22
• Outdoor unit rxm n9 22
• Specifications 22
• Split sky air rxm n9 22
• 7 capacity and power input 23
• 8 capacity and power input 23
• Outdoor unit rxm n9 23
• Specifications 23
• Split sky air rxm n9 21 23
• 8 capacity and power input 24
• Daikin 24
• Outdoor unit rxm n9 24
• Specifications 24
• Split sky air rxm n9 24
• 8 capacity and power input 25
• Outdoor unit rxm n9 25
• Specifications 25
• Split sky air rxm n9 23 25
• 9 technical specifications 26
• Daikin 26
• Outdoor unit rxm n9 26
• Specifications 26
• Split sky air rxm n9 26
• 10 electrical specifications 27
• Outdoor unit rxm n9 27
• Specifications 27
• Split sky air rxm n9 25 27
• 1 electrical data 28
• Electrical data 28
• 1 electrical data 29
• D120639 29
• Electrical data 29
• Outdoor unit rxm n9 29
• Rxm42 60n9 29
• Split sky air rxm n9 27 29
• 1 cooling heating capacity tables 30
• Capacity tables 30
• D110072a 30
• D110073b 30
• Fba35a9 rxm35n9 30
• Fba50a9 rxm50n9 30
• Outdoor unit rxm n9 30
• Split sky air rxm n9 30
• 1 cooling heating capacity tables 31
• Capacity tables 31
• D110074b 31
• D110075a 31
• Fba60a9 rxm60n9 31
• Fcag35b rxm35n9 31
• Outdoor unit rxm n9 31
• Split sky air rxm n9 29 31
• 1 cooling heating capacity tables 32
• Capacity tables 32
• 1 cooling heating capacity tables 33
• Capacity tables 33
• D110078a 33
• D110079a 33
• Fdxm25f9 rxm25n9 33
• Fdxm35f9 rxm35n9 33
• Izz f5zzlzz 7zz 33
• Outdoor unit rxm n9 33
• Split sky air rxm n9 31 33
• 1 cooling heating capacity tables 34
• Capacity tables 34
• D110080b 34
• D110081b 34
• Fdxm50f9 rxm50n9 34
• Fdxm60f9 rxm60n9 34
• Outdoor unit rxm n9 34
• Split sky air rxm n9 34
• 1 cooling heating capacity tables 35
• Capacity tables 35
• D110082a 35
• D110083a 35
• Ffa25a9 rxm25n9 35
• Ffa35a9 rxm35n9 35
• Outdoor unit rxm n9 35
• Split sky air rxm n9 33 35
• 1 cooling heating capacity tables 36
• Capacity tables 36
• D110084b 36
• D110085b 36
• Daikin 36
• Fda kin 36
• Ffa50a9 rxm50n9 36
• Ffa60a9 rxm60n9 36
• Outdoor unit rxm n9 36
• Split sky air rxm n9 36
• 1 cooling heating capacity tables 37
• Capacity tables 37
• D110087b 37
• Fha35a9 rxm35n9 37
• Fha50a9 rxm50n9 37
• Outdoor unit rxm n9 37
• Split sky air rxm n9 35 37
• _____________________________________________________________________________________________ 3d110086a 37
• 1 cooling heating capacity tables 38
• Capacity tables 38
• D110088b 38
• D110089a 38
• Fha60a9 rxm60n9 38
• Fna25a9 rxm25n9 38
• Outdoor unit rxm n9 38
• Split sky air rxm n9 38
• 1 cooling heating capacity tables 39
• Capacity tables 39
• D110090a 39
• D110091b 39
• Fna35a9 rxm35n9 39
• Fna50a9 rxm50n9 39
• Outdoor unit rxm n9 39
• Split sky air rxm n9 37 39
• 1 cooling heating capacity tables 40
• Capacity tables 40
• D099850d 40
• D110092b 40
• Daikin 40
• Fna60a9 rxm60n9 40
• Ftxm20n rxm20n9 40
• Outdoor unit rxm n9 40
• Split sky air rxm n9 40
• 1 cooling heating capacity tables 41
• Capacity tables 41
• D120715 41
• D120716 41
• Ftxm25n rxm25n9 41
• Ftxm35n rxm35n9 41
• Outdoor unit rxm n9 41
• Split sky air rxm n9 39 41
• 1 cooling heating capacity tables 42
• Capacity tables 42
• D120632 42
• Ftxm42n rxm42n9 42
• Ftxm50n rxm50n9 42
• Iz zzezî zzi 42
• Outdoor unit rxm n9 42
• Split sky air rxm n9 42
• _________________________________________________________________________________________________ 3d120633 42
• 1 cooling heating capacity tables 43
• Capacity tables 43
• D110093a 43
• D117546a 43
• Ftxm60n rxm60n9 43
• Fvxm25f rxm25n9 43
• Outdoor unit rxm n9 43
• Split sky air rxm n9 41 43
• 1 cooling heating capacity tables 44
• Capacity tables 44
• D110094a 44
• D110095b 44
• Daikin 44
• Fda kin 44
• Fvxm35f rxm35n9 44
• Fvxm50f rxm50n9 44
• Outdoor unit rxm n9 44
• Split sky air rxm n9 44
• 1 dimensional drawings 45
• D114108 45
• D119881 45
• Dimensional drawings 45
• Outdoor unit rxm n9 45
• Rxm20 35n9 45
• Rxm42 60n9 45
• Split sky air rxm n9 43 45
• 1 centre of gravity 46
• Centre of gravity 46
• D117299 46
• 1 piping diagrams 47
• D091995b 47
• Outdoor unit 47
• Piping diagrams 47
• 1 wiring diagrams single phase 48
• D120154 48
• Rxm20 35n9 48
• Wiring diagram 48
• Wiring diagrams 48
• 1 wiring diagrams single phase 49
• D116492 49
• Outdoor unit rxm n9 49
• Rxm50 60n9 49
• Split sky air rxm n9 47 49
• Wiring diagram 49
• Wiring diagrams 49
• 1 sound pressure spectrum 50
• Cooling mode 50
• D110121a 50
• D110122a 50
• Outdoor unit rxm n9 50
• Rxm20n9 50
• Rxm25n9 50
• Sound data 50
• Split sky air rxm n9 50
• 1 sound pressure spectrum 51
• Cooling mode heating mode 51
• D110123a 51
• D117529 51
• Outdoor unit rxm n9 51
• Rxm35n9 51
• Rxm42n9 51
• Sound data 51
• Split sky air rxm n9 49 51
• 1 sound pressure spectrum 52
• D117528 52
• D117530 52
• Outdoor unit rxm n9 52
• Rxm50n9 52
• Rxm60n9 52
• Sound data 52
• Split sky air rxm n9 52
• 1 operation range 53
• D119882b 53
• Operation range 53
• Daikin europe n v naamloze vennootschap zandvoordestraat 300 b 8400 oostende belgium www daikin eu be 0412 1 20 336 rproostende 55
• Eeden19 03 19 55

Похожие устройства

• Daikin RXM42N2V1B9 Технические данные
• Daikin RXM42N2V1B9 Справочное руководство для монтажника
• Daikin RXM50N2V1B9 Технические данные
• Daikin RXM50N2V1B9 Справочное руководство для монтажника
• Daikin RXM60N2V1B9 Технические данные
• Daikin RXM60N2V1B9 Справочное руководство для монтажника
• Daikin RXLG25M2V1B Руководство по монтажу
• Daikin RXLG35M2V1B Руководство по монтажу
• Daikin RXL25M2V1B Руководство по монтажу
• Daikin RXL35M2V1B Руководство по монтажу
• Daikin RXL25M3V1B Руководство по монтажу
• Daikin RXL35M3V1B Руководство по монтажу
• Daikin RXLS25M2V1B Руководство по монтажу
• Daikin RXLS35M2V1B Руководство по монтажу
• Daikin ARXL25M2V1B Руководство по монтажу
• Daikin ARXL35M2V1B Руководство по монтажу
• Daikin RXLG50L2V1B Руководство по монтажу
• Daikin RXLG25L2V1B Руководство по монтажу
• Daikin RXLG35L2V1B Руководство по монтажу
• Daikin RXP50L2V1B Справочное руководство для монтажника

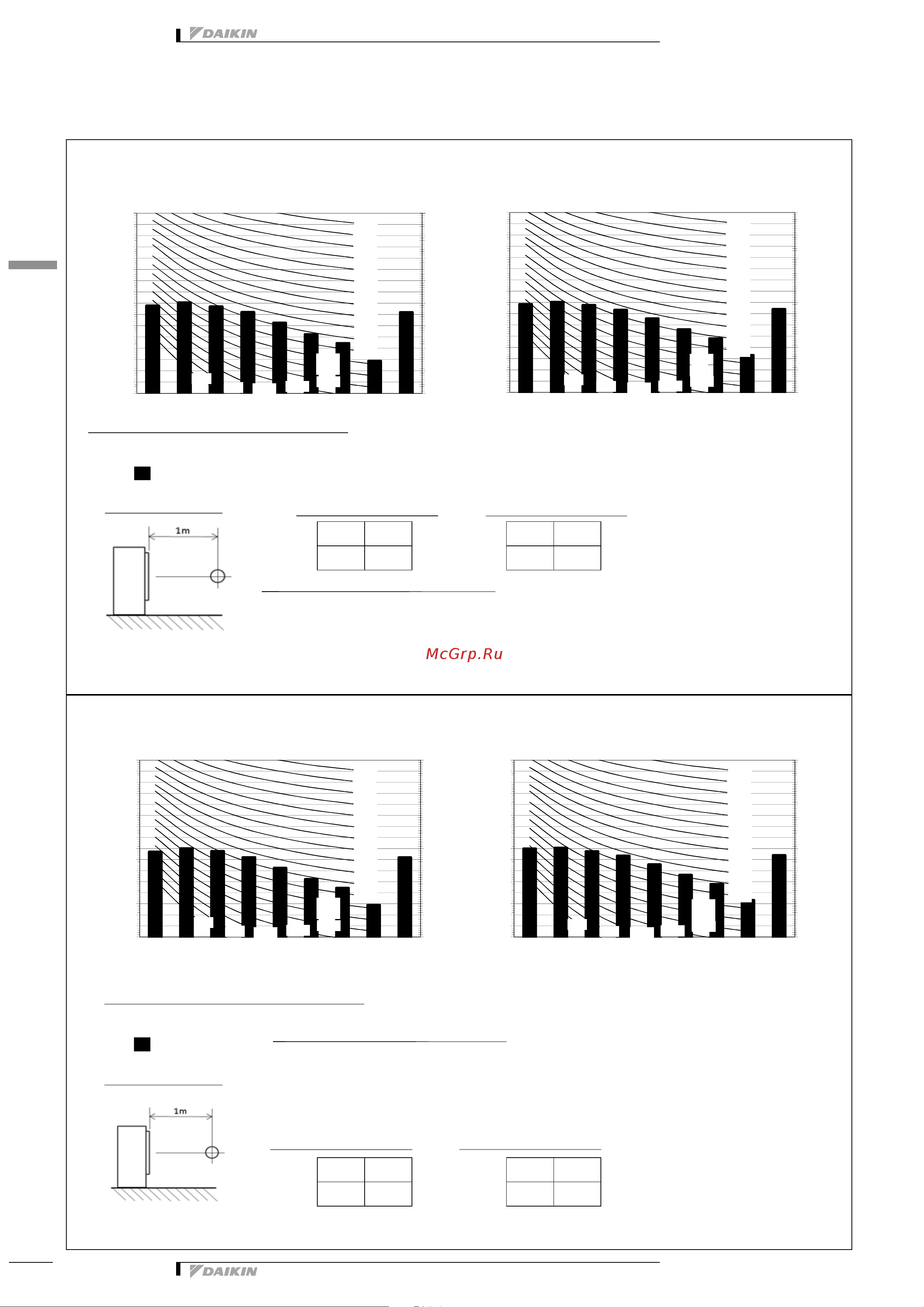

J DAlKim Outdoor Unit RXM N9 9 Sound data 9 1 Sound Pressure Spectrum RXM20N9 Cooling mode 9 A Scale Fan speed High Location of microphone Total dB Total dB Heatirg Notes_______________________________________ 1 Background noise already taken into account 2 Operating conditions power source 220 240 V 220V 50 60 Hz JIS standard 3 Operating noise varies depending on operation and ambient conditions 4 The operation noise measuring method is in accordance with JISC9612 5 Measuring location anechoic chamber 3D110121A RXM25N9 Octave band centre frequency Hz Octave band centre frequency Hz Legend dBA A weighted sound pressure level A scale according tolEC A Seal 3 EM Fan speed High Location of icrophone Notes_______________________________________ 1 Background noise already taken into account 2 Operating conditions power source 220 240 V 220 V 50 60 Hz JIS standard 3 Operating noise varies depending on operation and ambient conditions 4 The operation noise measuring method is in accordance with JISC9612 5 Measuring location anechoic chamber L 1m Cooling Total dB Heating Total dB A B A B dBA 46 dBA 47 3D110122A 48 I TDAIKIN Split Sky Air RXM N9
