FFQ25/35/50/60BV1B Si21-205A
240 Removal Procedure
1.8 Removal of Drain Pan
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1

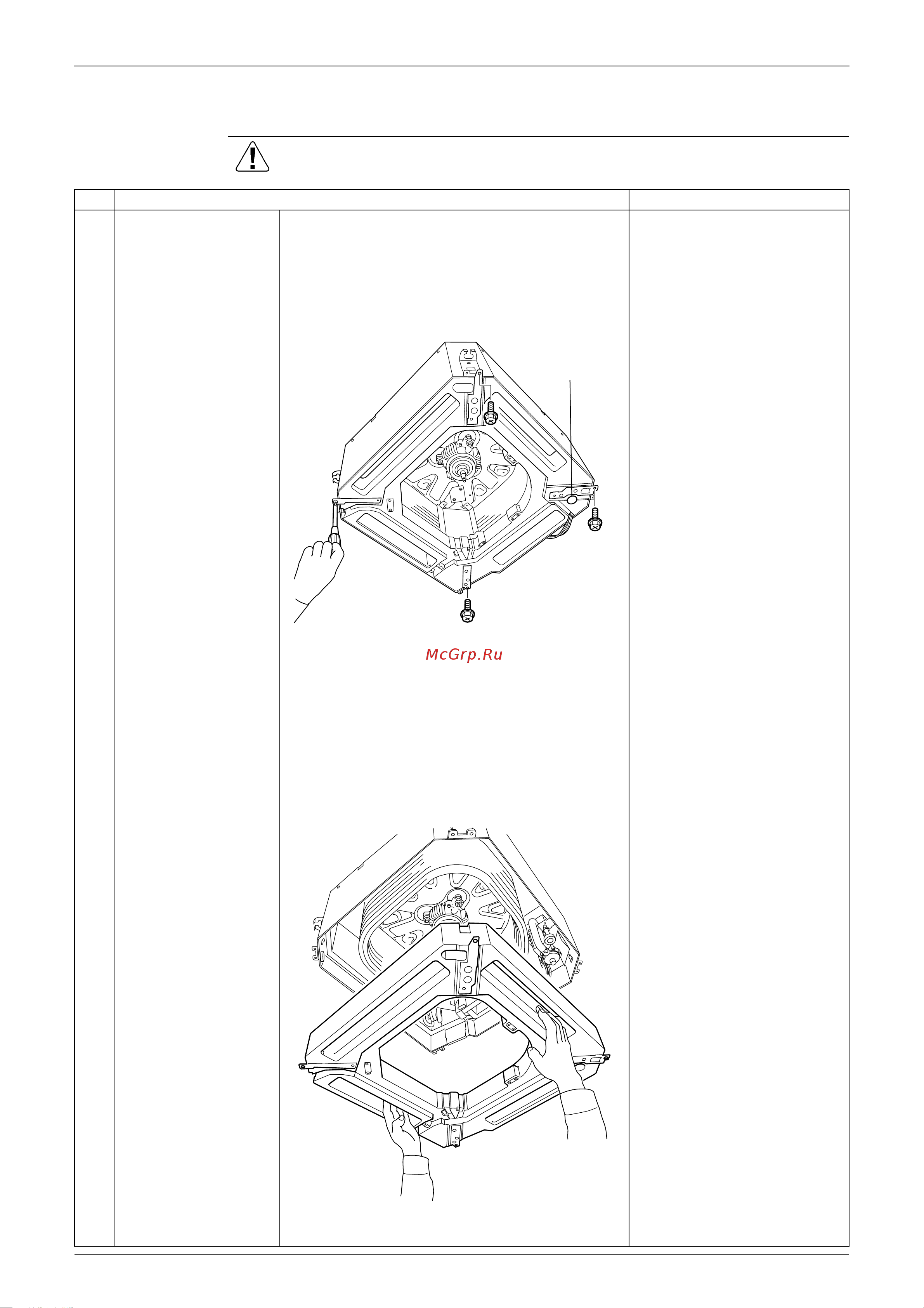

Remove the drain
socket to drain water
from the drain hole.
2
Remove the 4 mounting
screws to remove the
drain pan.
Remove the drain socket to
drain water from the drain
hole.
If water is in the drain pan, it
can spill and wet the floor.
Drain water completely or
cover the floor with a vinyl
sheet before removing the
drain pan.
3
Pull down the drain pan
straight down.
Drain socket
(S2658)
(S2659)
